CASE 2050M Dozer For Sale

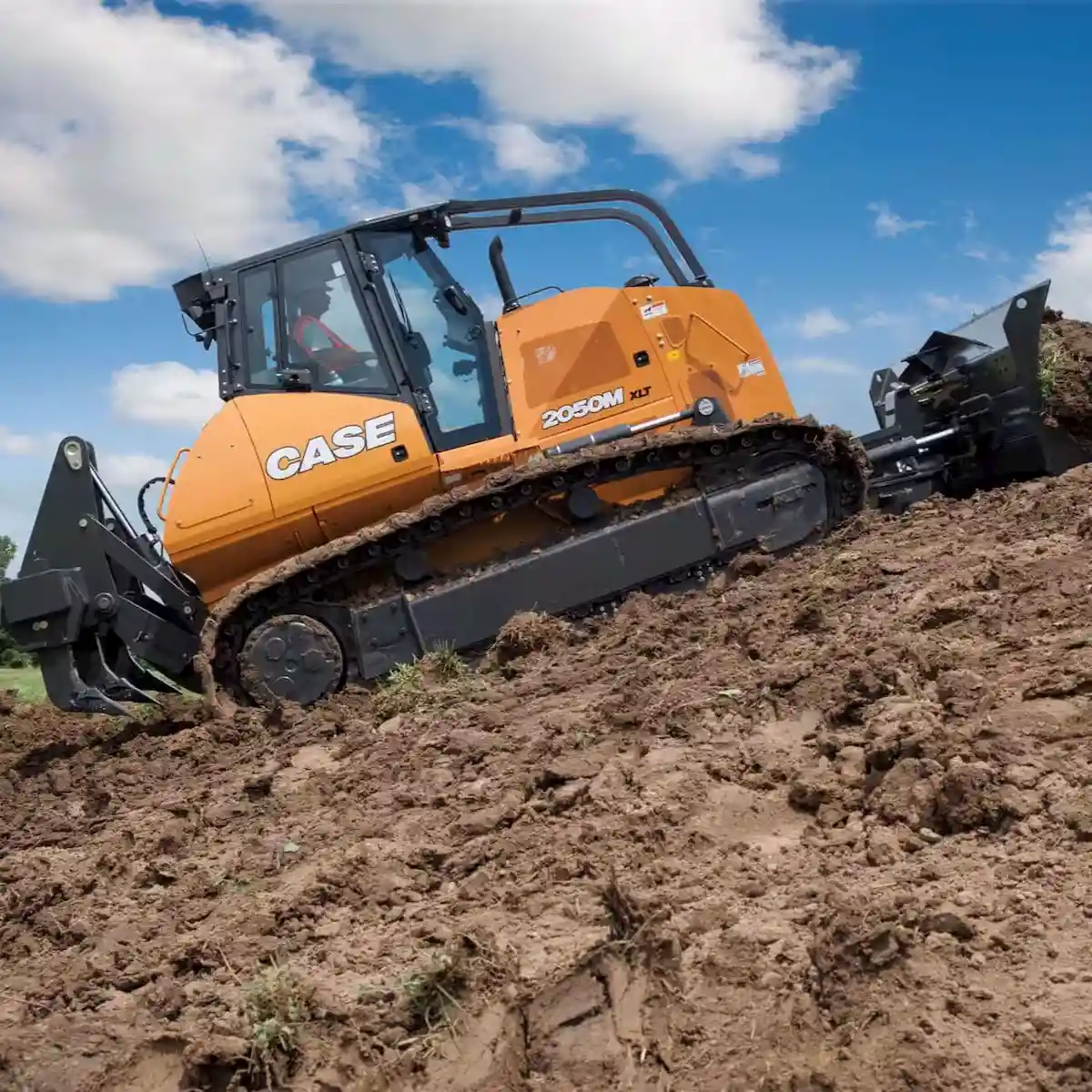

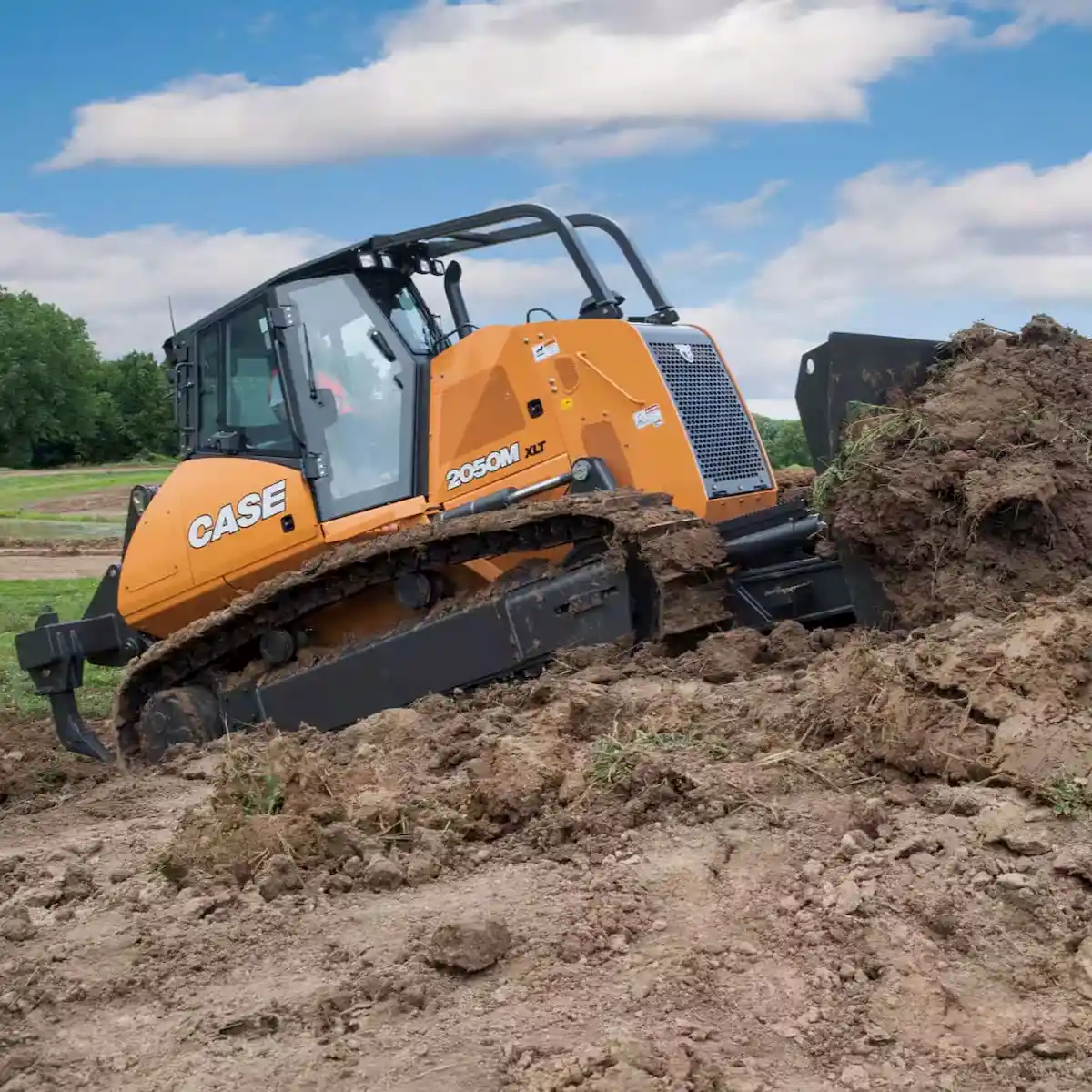

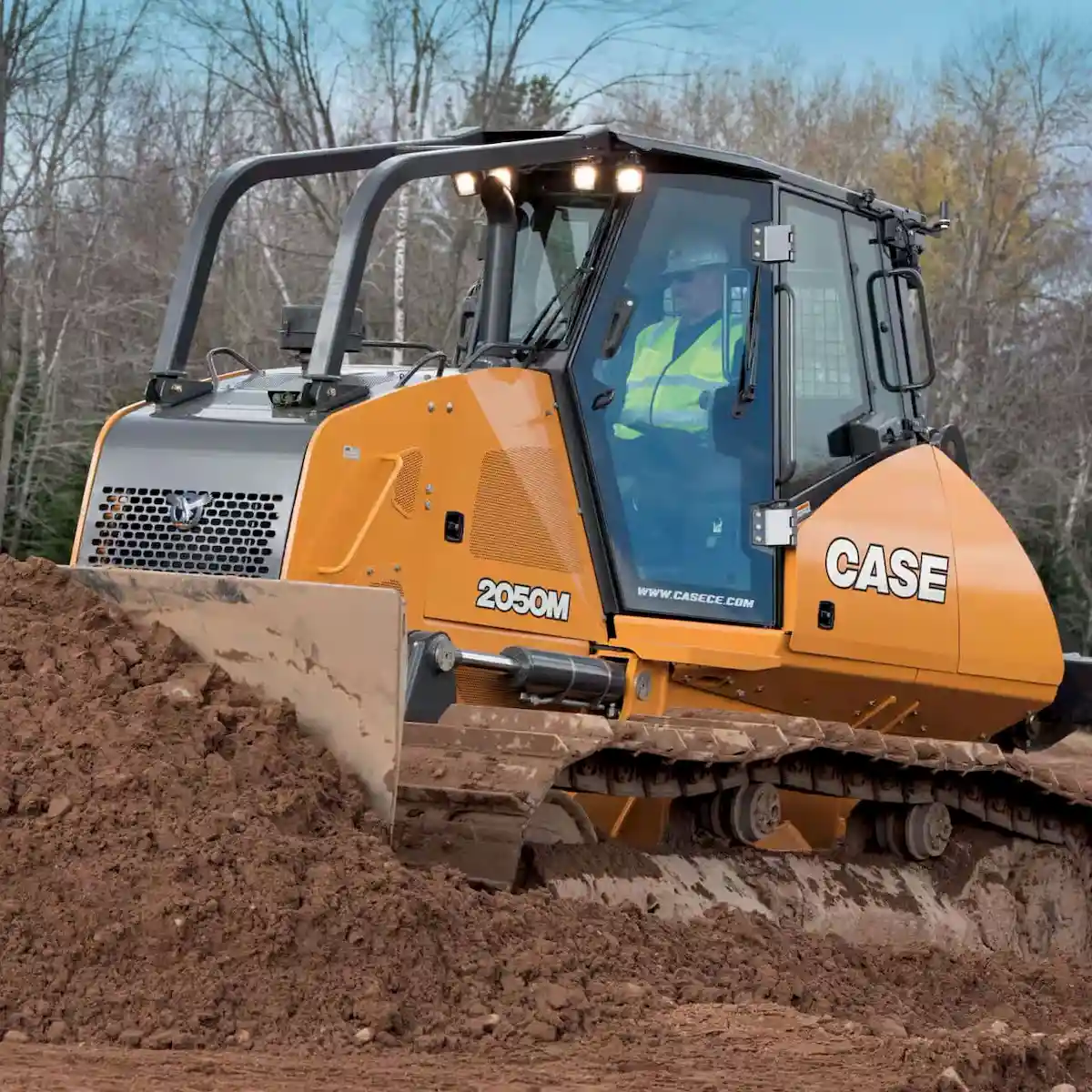

For sale at Luby Equipment: CASE 2050M Bulldozer
Horsepower: 232 hp | Operating Weight: 46,891 lb
The CASE 2050M bulldozer, boasting 232 horsepower, epitomizes strength and capability. This powerhouse is engineered for substantial cuts and mass earthmoving tasks. Once set in motion, it can dramatically alter landscapes, pushing vast amounts of earth with ease.
Precision control of this formidable power is made possible with optional machine control and customized operation settings, which allow for adjustments to track speed based on the workload. This feature ensures efficiency and control even under the most demanding conditions.
Despite its robust earth-moving capabilities, the 2050M offers a surprisingly roomy cab designed to minimize vibration, thanks to an enhanced undercarriage system. The visibility from the cab is expansive, providing clear sightlines that are critical for effective operation and safety on large-scale jobs.
Now available at Luby Equipment, the CASE 2050M is ideal for professionals who require a bulldozer that not only moves mountains but also offers a comfortable and controlled operating environment. Experience the combination of raw power and refined engineering that makes this dozer a game-changer in large-scale earthmoving and a profitable investment for your fleet.
Power and Productivity:
- 214 horsepower engine
- Over 81,000 pounds of drawbar pull
- Versatile track and blade configurations
- SCR-only emissions system for maximum efficiency
Total Operator Control:
- Adjustable shuttle, steering, and blade sensitivity settings
- Advanced load monitoring system for optimal power and efficiency
- Additional controls for Blade Shake and Fine Grading
Operator Comfort and Visibility:
- Industry-leading sight lines to the blade, tracks, and worksite
- Positive-pressure cab with advanced sealing
- Low sound ratings and reduced cab vibration
Ease of Maintenance and Service:
- Grouped service points for easy access
- CASE SiteWatch™ telematics for maintenance insights
CASE ProCare Protection:
- Three-year, 3,000-hour full-machine factory warranty
- Three-year, 2,000-hour planned maintenance contract
- Three-year Advanced CASE SiteWatch™ telematics subscription
Operator Environment:
- Fully enclosed ROPS cab for safety and comfort
- Single lever control for effortless operation of speed, steering, and direction
- Comfortable cloth air suspension seat with back adjustment
- Retractable 3 in (76 mm) seat belt for secure seating
- Adjustable armrest and dual footrests for operator comfort
- Enhanced visibility with the rearview mirror and two-door windshield wipers
- Convenient in-cab features: dome light, 12-volt accessory outlet, headliner, floor mat, rear wiper, and radio
- Climate control with Heat/AC for all-weather comfort
- Comprehensive warning lights and gauges for vital machine metrics
- Audible warnings for critical system alerts
Engine:
- F4HFE613J Tier 4 Final Certified engine for eco-friendly power
- V-Shape Cooling package with hydraulic-driven reversing fan
- Integral engine oil cooling and fuel filter for longevity
- Dual element radial seal air cleaner and 120 amp alternator
- Dual 950 CCA 12-volt batteries for reliable power
- Hinged engine side panels for easy access
Drivetrain:
- Advanced dual path, infinitely variable hydrostatic drive for precision
- Triple reduction final drive with electronic straight-tracking
- Automatic spring-applied parking brake for safety
Blade:
- 55° – 60° variable pitch for adaptable operation
- Single lever electro-hydraulic control for blade lift, angle, and tilt
Undercarriage:
- Hydraulic track adjusters for easy maintenance
- Sealed and Lubricated Track (SALT) for durability
- Permanently lubricated track and carrier rollers
- Robust Smooth One Piece Track Frames with easy clean-out
Additional Features:
- Backup alarm, horn, and work lights for safety
- Ground Level Master disconnect switch for security
- Turbine pre-cleaner, front pull hook, rear tow hook, and environmental drain for enhanced functionality
- Grid Heater/Cold Start and Transport Protection for reliability
Telematics and ProCare:
- CASE SiteWatch™ Telematics with a 3-year Advanced data subscription for machine management
- CASE ProCare package offering comprehensive protection and maintenance support
2050M Optional Equipment Details
Operator Environment Enhancements:
- Cab Air Quality System: Ensures a clean and healthy environment inside the cab, enhancing operator comfort and safety during long working hours.
Advanced Hydraulic Options:
- 4-Spool Hydraulic Valve: Ideal for field-installed rippers, providing additional versatility for your operations.
- 3-Spool Hydraulic Valves: Available with or without plugs, these options allow customized hydraulic configurations to meet various project demands.
Rear Mounted Equipment:
- Ripper: 2 position with three shanks, offering exceptional ripping capabilities for harsh terrains.
- Drawbar Options: Standard and with steps for enhanced towing and pulling functionality.
Blade Varieties:
- PAT Blades: They are available in sizes from 142 to 160 inches and include high-visibility and folding options for precision and convenience.
HS Straight and Semi-U Blades: These blades cater to different operational requirements and have varying widths and configurations for optimal performance.
Protection and Safety:
- Guards: CAB canopy brush guards and full-length rock guards are included for comprehensive machine protection.
- Sweeps and Waste Handler Guarding Package: Additional options to safeguard vital components in harsh working environments.
Visibility and Precision:
- Cab Rear Screen: Enhances operator safety without compromising rear visibility.
- Precision Control Solutions: Including Factory Fit CoPilot, 2D Laser, and 3D GNSS systems, alongside Universal Blade Guidance compatible with leading brands such as Leica, Trimble, and Topcon, ensuring pinpoint accuracy in grading and leveling tasks.
Additional Features for Enhanced Utility:
- CASE Ultra Life Track: Extends the undercarriage lifespan, reducing maintenance costs and downtime.
- Additional Work Lights: Improve visibility during early morning or late evening operations, ensuring productivity around the clock.
Base & Extended Warranty Coverage
CASE ProCare applicable on select new heavy machine orders
See your CASE dealer for model availability and timing
