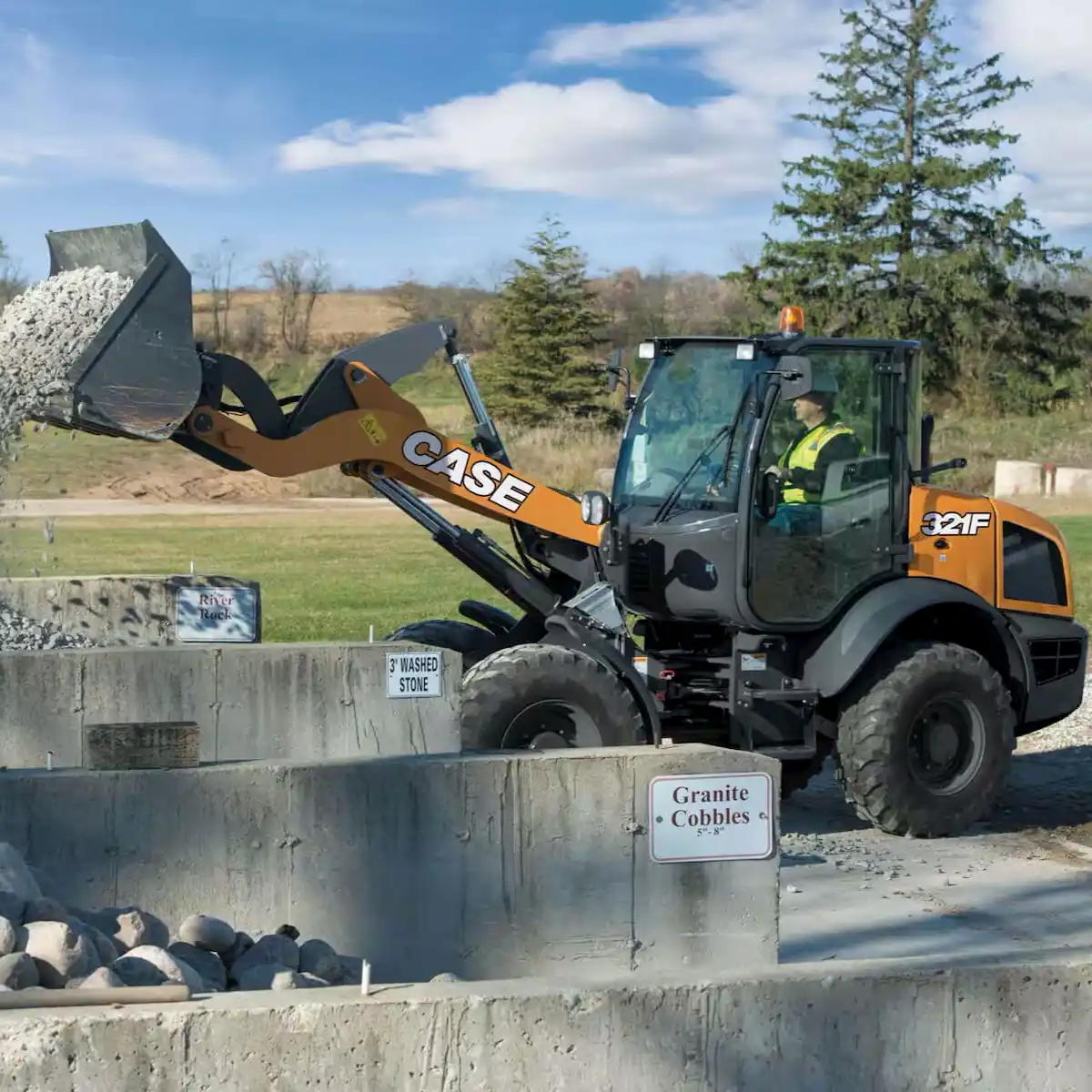

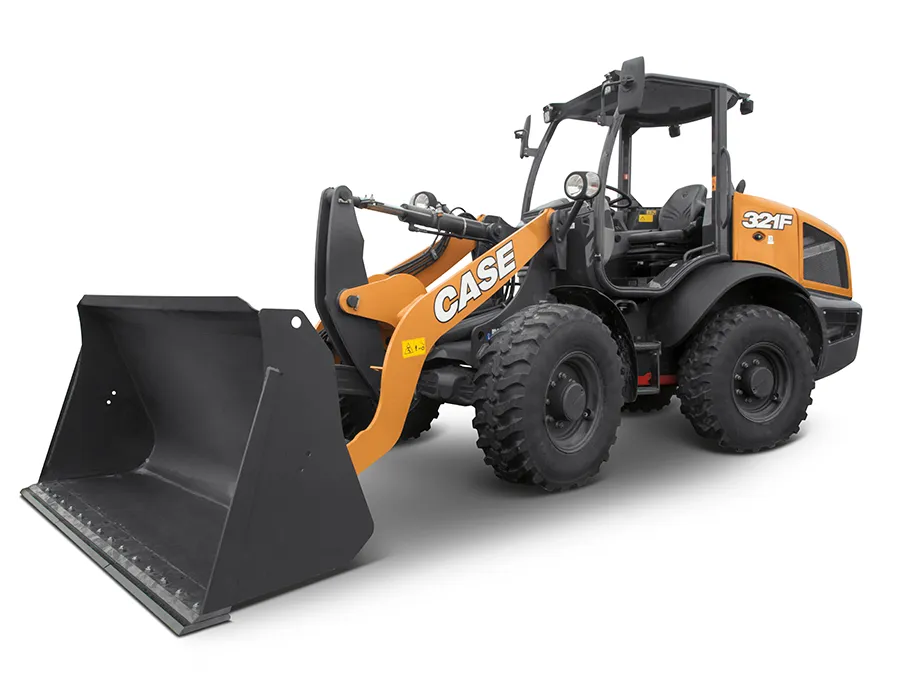

CASE 321F Compact Wheel Loader
The CASE 321F Compact Wheel Loader, the Tier 4 Final F Series pinnacle, combines formidable power with precision control. Boasting a Z-Bar linkage, it achieves a remarkable full-height lifting capacity exceeding 8,000 lbs. (3,640 kg) and a bucket breakout force of up to 11,000 lbs. Its compact stature, at just 8 ft. 10 in. (2,681 mm) tall, doesn’t compromise its capability. Enhanced with suspension upgrades, a standard skid steer coupler, and superior auxiliary hydraulics, the 321F is designed to handle diverse tasks efficiently.
Productivity

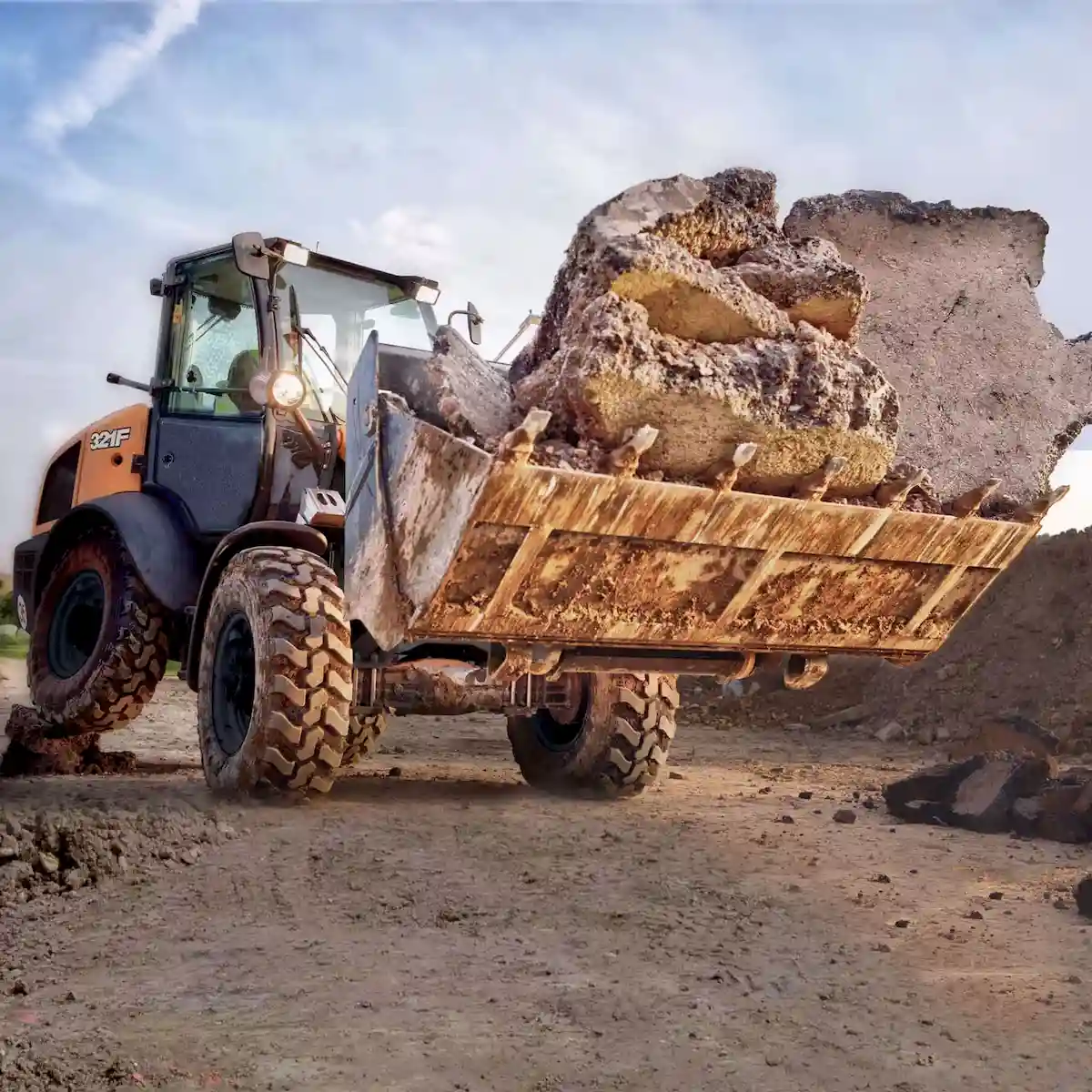

- Enhanced Lifting and Breakout Force: The lower center of gravity and Z-bar linkage improve lifting capabilities and breakout force, which is essential for challenging tasks.
- Advanced Suspension: A 20-degree oscillating rear axle, independent of the cab, offers superior operator comfort and precise load control on uneven terrain.
- Optional Differential Lock: Provides on-demand traction on loose or uneven surfaces, ensuring reliable performance in various conditions.
- High-Speed Option: This option enables travel speeds up to 21.8 mph (35 km/h), increasing job site efficiency.

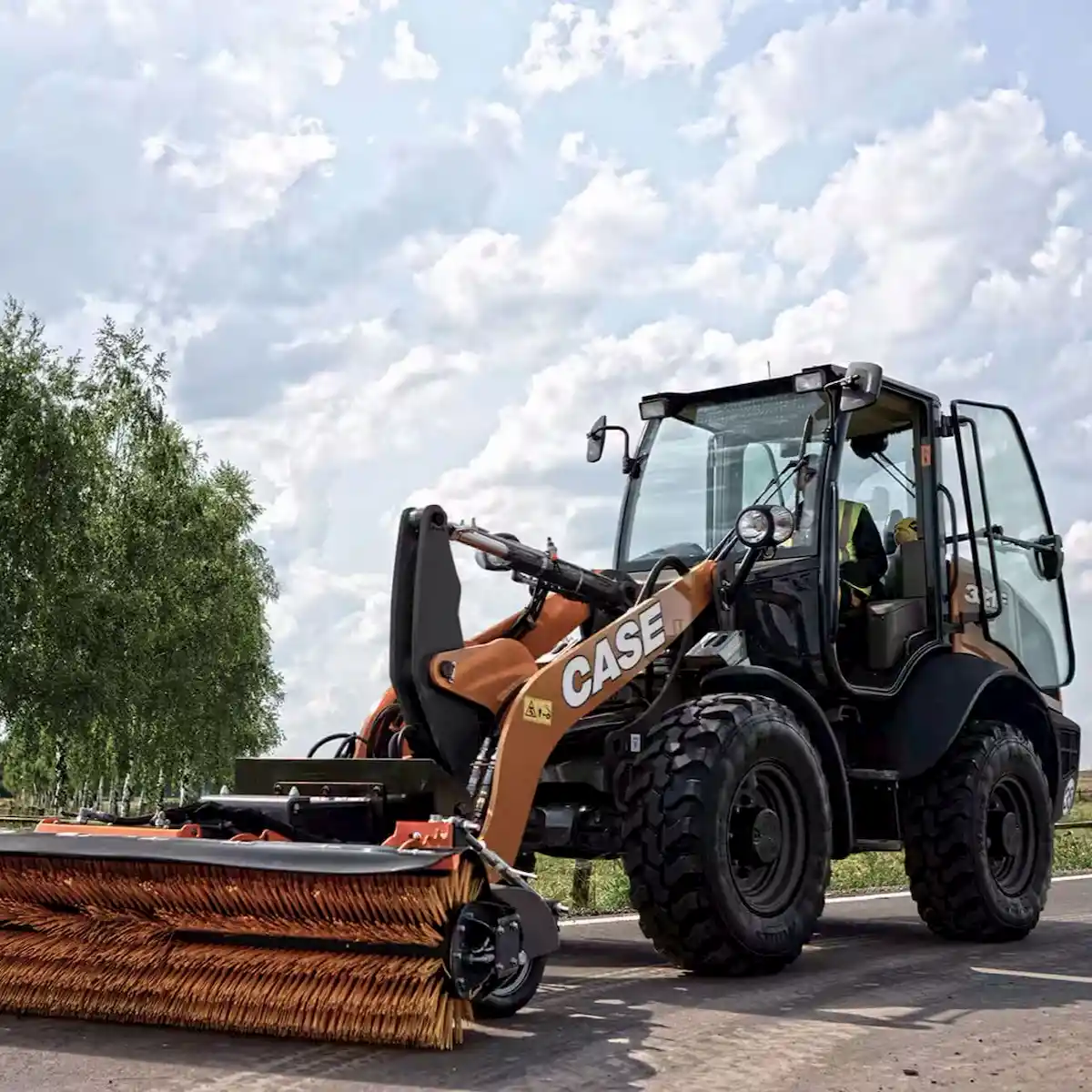

- High-Flow Hydraulic Option: This option includes creep speed for maximum hydraulic flow at constant speeds, perfect for attachments requiring consistent hydraulic power, such as cold planers and snow blowers.
- Additional Features: A front electrical socket and Return Depressurized Drain enhance the loader’s versatility and convenience.
Fuel Efficiency
- Tier 4 Emission Solution: Offers a maintenance-free system, eliminating the need for regeneration downtime, DPF replacements, and after-treatment fluids, allowing for uninterrupted operation.
Comfort and Visibility
- Spacious and Intuitive Cab: This cab provides ample space, superior visibility, and an easy-to-use control interface, enhancing the operator experience and safety.
- Productivity Enhancements: Features like Creep Speed, Return-to-Dig, and Ride Control™ simplify operations and boost productivity.
- Comfort Options: Air seats, Bluetooth Radio, and LED work lights are available to create an enjoyable and efficient work environment.
Serviceability
- Easy Maintenance: The design includes a tilt-up hood and accessible checkpoints for radiators, filters, hydraulics, and the engine, making routine maintenance quick and straightforward.
Operator Environment
- ROPS: Meets ISO 3471 standards, ensuring safety with a rating of 2,008 lb (6,800 kg).
- Cabs: Base and Deluxe options with heaters and A/C for year-round comfort.
- Ease of Operation: Key start, articulated power steering with a tilt column, and a fully adjustable cloth suspension seat tailored for operator comfort.
- Control and Precision: Foot throttle and a single joystick with electronic speed shift control (F/N/R switch) and proportional loader control for precise operation.
- Convenience Features: The Deluxe Cab has a cup holder, retractable seat belt, and storage tray. Front sunscreen, an opening side window, a dome light, and wipers (front and rear) enhance comfort and visibility.
- Connectivity and Utility: 12-volt auxiliary power, lighter cigar, ashtray, pocket for cellular phone, and a coat hook for personal convenience.
- Safety and Visibility: External rearview mirrors improve situational awareness and loader control lockouts prevent unintended operations.
- Comprehensive Monitoring: Vehicle speed, hour meter, floating functionality, clock, vehicle directions, gear number engaged, and PM Catalyst icons.
- Indicator Lights: For differential lock, main hydraulic enabled, turn signals (left and right), rear work lamps, work lamps, main high beam, side lights, stop, warning signal, rabbit, hand brake, brake fluid level, quick coupler on, Ride Control on, creep speed, PM Catalyst, low fuel level, clogging air filter, engine oil pressure, glow plug, and alternator changing.
- Audible Alarms: Include caution alarm, critical alarm, backup alarm, and horn for enhanced safety and situational awareness.
Note
Features and availability may vary based on optional equipment installed, providing flexibility to cater to different operational needs.
Engine
- Model: FPT F5H FL463 A, offering robust performance and reliability.
- Fuel Efficiency: Includes a fuel filter with a water trap and a dual-element air cleaner for optimal engine performance.
Loader
- Z-Bar Linkage: This linkage provides improved lifting power and breakout force. It has a single lift, tilt control, and positive hold float for precision handling.
Attachment Versatility: This product features a hydraulic attachment coupler compatible with skid steer and horizontal pin attachments.
Drivetrain
- Traction and Control: 4-wheel drive system and open front and rear axles for superior maneuverability.
- Transmission: Hydrostatic transmission with a single joystick incorporating electronic speed shift control (F/N/R switch) and proportional loader control for smooth and precise operation.
- Safety and Durability: Equipped with outboard planetary axles, hydraulic wet disc brakes, and a mechanical parking brake.
Hydraulics
- Efficiency: A 3-spool loader control valve and 3 diagnostic quick couplers for easy maintenance.
- Customizable Control: Adjustable electro-hydraulic (EH) loader controls with lift and tilt responsiveness settings, including Return to Dig and a hydraulic skid steer-compatible coupler.
- Convenience Features: Connect under-pressure connectors, a remote drain of hydraulic oil, an auxiliary hydraulic drain line coupling, and an auxiliary flow of 22.5 gpm @ 3,336 psi (85 l/min @ 230 bar).
Other
- Protection and Visibility: For enhanced safety, the front and rear fenders and lighting, including front driving headlights, rear floodlights, stop tail lights, and turn signals, are included.
- Convenience and Safety Features: Includes a drawbar pin, articulation locking pin, tie-down and lift-up points for easy transport, a backup alarm, toolbox, rotating beacon, wiring for radio, a bucket position indicator, and a front electrical socket for powered attachments.
Operator Environment
- Creep Speed: It is adjustable from 0 to 3.1 mph (5 kph), ideal for precision tasks requiring slow movement.
- TeleScop Adjustable Steering Column: Available on Deluxe Cab for personalized comfort and control.
- Canopy Cab: An alternative to the enclosed cab, offering protection while allowing for open-air operation.
- Rotating Beacon: Enhances visibility and safety on work sites.
- Axle Options: Limited slip differential for improved traction in varying conditions and a 100% lock option for both front and rear axles for maximum traction in challenging terrains.
- Coupler: Horizontal pin coupler for easy attachment changes.
- Air Conditioning: To maintain a comfortable cab environment in warm climates.
- Radio: Ready with antenna and speakers for entertainment and communication.
Loader
- Buckets: Options include general-purpose standard, general-purpose light-material, and STD forks for various material handling needs.
- Auto Ride Control: This feature minimizes loader arm bounce during travel, enhancing load retention and operator comfort.
- Cold Weather Package: Features two 680 CCA batteries and low-temperature Hytran oil for reliable cold-weather operation.
- High-Flow Hydraulic System: This system offers a maximum flow of 34.3 gpm at 3,336 psi (130 L/min at 200 bar), suitable for high-demand attachments.
Tires
- A selection of tires for various ground conditions, including:
- 405/70 R20 SPT9 L2 DUNL
- 14.5-20MPT-04 MITAS
- 365/80 R20 SPT L2(DL) – Standard
- 365/80 R20 EM MITAS
- 405/70 R20 EM MITAS
- 550/45 R22.5 Flotation Tire for soft ground conditions
- 360/80 Nokian Tri 2 Snow for winter operations
Other
- CASE SiteWatch Telematics: Offers advanced monitoring, management, and data analytics capabilities.
- LED Work Lights: Provides enhanced visibility with two front and two rear LED work lights for safe operation in low-light conditions.
Tier 4 Final
HPCR, EXTERNAL CEGR
Why this solution: This Tier 4 Final solution requires no new actions or upkeep so that operators can focus entirely on the work.
How it works: The high-pressure common rail (HPCR) system electronically controls fuel injection for greater fuel economy through more efficient fuel burn. With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air, and then returned to the cylinder. The Diesel Oxidation Catalyst (DOC) manages the additional particulate matter. The DOC converts emissions into neutral gasses and automatically burns it off using heat from the exhaust.
What this means to you: This solution is a maintenance-free emissions solution, requiring no costly DPF (Diesel Particulate Filter) to replace and no new fluids to add. Powered by an FPT engine.
Base & Extended Warranty Coverage
1 Year / Unlimited Hour Full Coverage Base Warranty
Engine Warranty – Warrants all internal, lubricated parts captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover, flywheel housing, turbocharger, engine oil cooler, and water pump.
Purchased Protection: The Purchased Protection Plan is an extension of the factory base, and extended coverage is available at an additional cost. Your CASE dealer can help determine and customize the plan that fits your needs. Plans are available at any month/hour amount on CASE Compact Wheel Loader models.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
