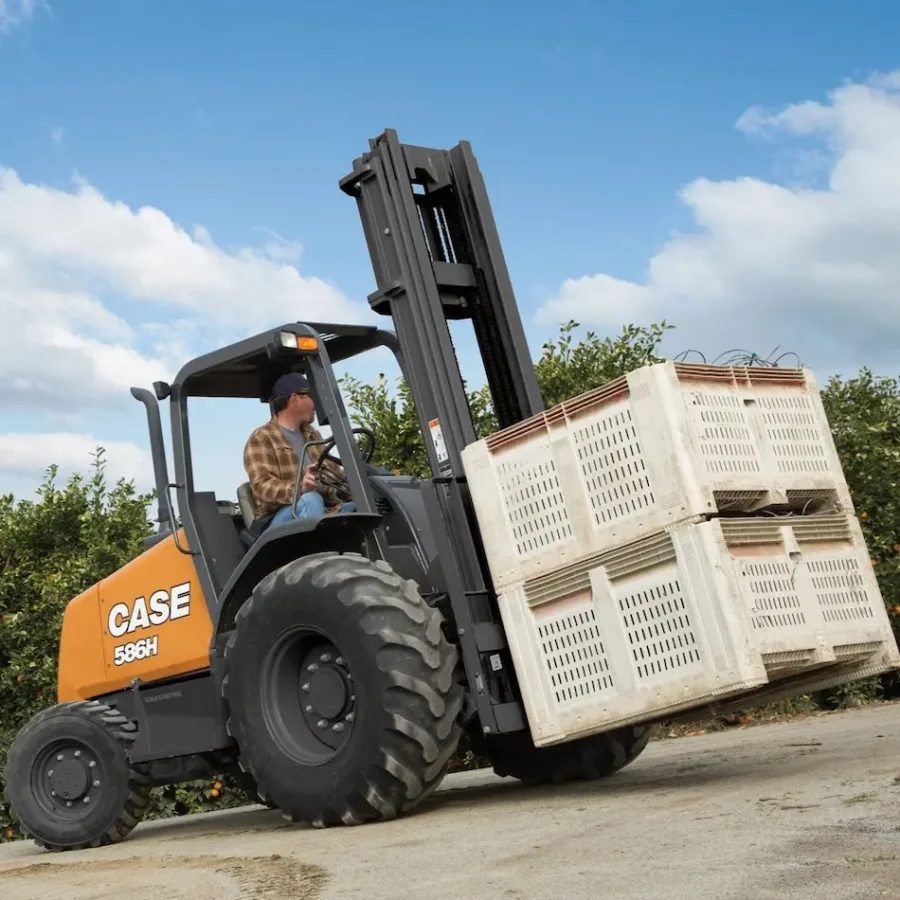

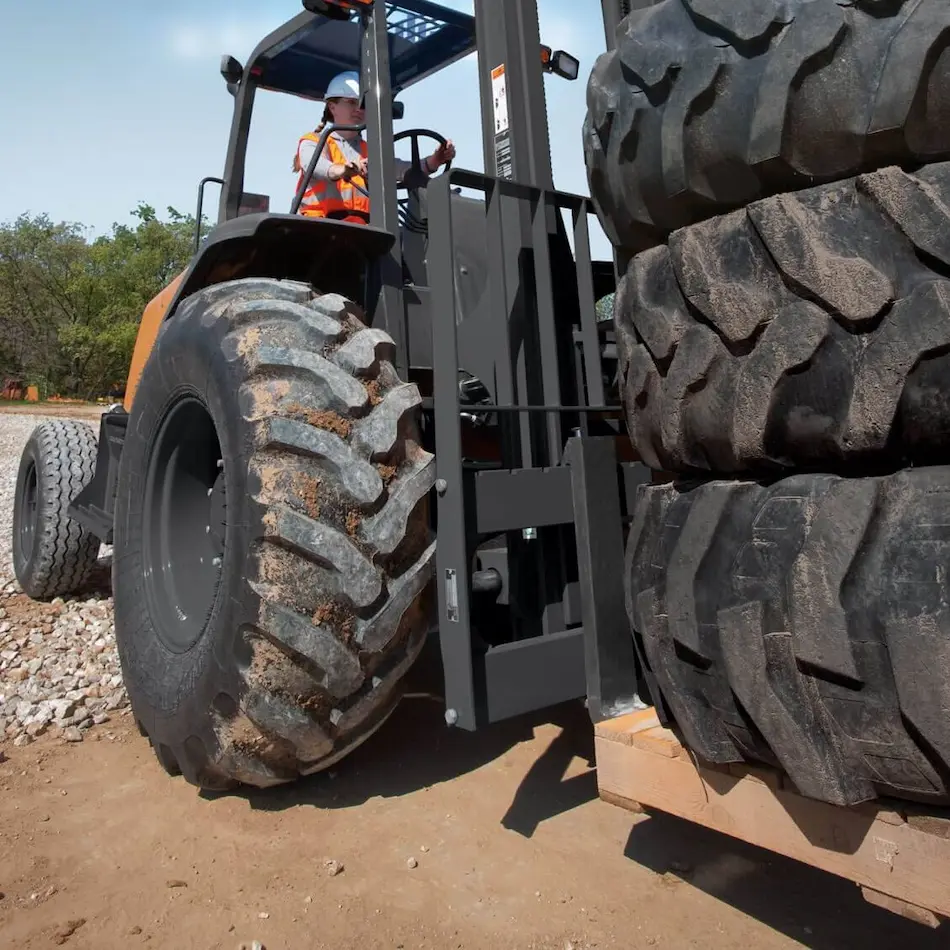

CASE 586H Rough Terrain Forklift
Request more information:
The CASE, 586H Rough Terrain Forklift, is a robust and versatile solution tailored to any construction site’s challenges. Designed to handle a wide range of materials, from pallets to pipes, this forklift ensures operations are conducted with unparalleled smoothness, ease, and speed.
PDF BROCHURE: CCE202212RTFL_d8_LowRes
SELL SHEET: CCE202109586H_d2_LowRes
CASE 586H Rough Terrain Forklift
The CASE, 586H Rough Terrain Forklift, is a robust and versatile solution tailored to any construction site’s challenges. Designed to handle a wide range of materials, from pallets to pipes, this forklift ensures operations are conducted with unparalleled smoothness, ease, and speed.
CASE 586H Features
The 586H is equipped with user-friendly controls, including a push-button parking brake and an eye-level Advanced Instrument Cluster (AIC), enhancing the operator’s experience. The optional deluxe suspension seat and spacious operating platform further ensure maximum comfort and ease of use during long hours of operation. For environments with low clearance, the 586H features an innovative free lift mast option. This allows operators to elevate forks up to five feet without extending the mast, minimizing the overall travel height and facilitating operation in restricted spaces.
Productivity Features:
- High-Performance Lift Capabilities: The CASE 586H, along with the 588H model, boasts industry-leading lift speeds and reliable lift capacities, significantly boosting productivity and efficiency on site.
- Versatile Terrain Compatibility: These models come with an optional four-wheel drive and a standard differential lock, ensuring smooth operation across various terrains. The 60° mast tilt and optional load control maximize travel capabilities and load stability.
- Enhanced Maneuverability: The 588H model, in particular, offers a zero-tail swing design for operating in tight spaces, ensuring that if the rear tires clear an obstacle, the rear of the machine will too.
Fuel Efficiency:
Equipped with a 74 horsepower, 3.4 liter FPT engine, these forklifts incorporate a Diesel Oxidation Catalyst (DOC) for a Tier 4 Final solution, achieving at least a 5% improvement in fuel efficiency compared to previous models. This, combined with faster response times, ensures environmental compliance without sacrificing performance.
Comfort and Visibility:
The CASE 586H excels in operator comfort and visibility. Its dual-mast design eliminates the need for a third mast, offering unmatched front and rear visibility. The narrow operating console and low-profile hood further enhance the operator’s ability to securely maneuver materials. The large operating platform provides ample space, with the option to add a deluxe suspension seat and load control for a comfortable ride across all terrains.
Serviceability:
Maintenance is straightforward with the 586H. Features such as tool-free swing-out doors, spin-on filters, ground-level site gauges, and grouped service points allow for quick and easy daily maintenance. Axle servicing is simplified, requiring no complete disassembly, ensuring your machine remains in peak condition with minimal downtime.
The CASE 586H Rough Terrain Forklift is more than just equipment; it’s a comprehensive solution designed to tackle the most demanding tasks on any construction site. With its blend of productivity, efficiency, comfort, and ease of maintenance, the 586H sets a new standard for what operators can expect from a rough terrain forklift.
CASE 586H Standard Equipment
Engine Specifications:
- Powerful Performance: At the heart of the 586H lies an FPT 3.4 L Diesel engine designed for robust power and efficiency. The engine features Cooled Exhaust Gas Recirculation (EGR) and a Diesel Oxidation Catalyst to meet environmental standards without sacrificing performance.
- Durable and Reliable: A full-flow engine oil filter ensures enhanced engine protection and an air intake is optimized with a replaceable dry-type air cleaner with a radial seal. A radiator with a de-aeration bottle and antifreeze rated to -34°F (-37°C) guarantees operation in extreme conditions.
- User-Friendly Features: The forklift includes convenience options such as a foot throttle, self-adjusting belt, insulated Crankcase Ventilation (CCV) hose, glow plugs, and a block heater for cold starts. Maintenance and emergency readiness are facilitated by a pre-cleaner, master disconnect switch, and remote jump-start terminals for the battery.
Mast Capabilities:
- Versatile Lifting Options: The 586H offers two standard mast options—a 15-ft mast capable of lifting 1,863 lb and a 22-ft mast with a 2,608 lb lifting capacity, ensuring versatility across various applications.
Hydraulics and Drivetrain:
- Robust Hydraulics: A heavy-duty hydraulic oil cooler and a 7-micron spin-on oil filter maintain the hydraulic system’s efficiency and reliability.
- Advanced Drivetrain: Equipped with a front axle suitable for 2/4WD and heavy-duty outboard planetary drive and a rear axle designed for both 2WD and 4WD options, the 586H ensures optimal traction and maneuverability. The 4F-4R Power Shuttle Synchromesh Transmission, combined with a torque converter, electric 4WD control, and electric differential lock control, enhances the driving experience.
Additional Features:
- Convenience and Safety: The forklift is designed with operator convenience and safety in mind. It features a lockable storage compartment, a swing-out side panel for engine access, and a comprehensive light package for visibility.
- Operator Environment: A ROPS/FOPS certified protective canopy, wide walk-through platform, and vinyl seat with a 3-inch seat belt ensure operator comfort and safety. Molded front fenders and rearview mirrors enhance visibility, while a suite of gauges and warning lights keep the operator informed.
The CASE 586H Rough Terrain Forklift is your go-to solution for handling materials under challenging conditions. Its powerful performance, operational versatility, and ease of use make it an invaluable asset to any construction or industrial project.
CASE 586H Optional Equipment
Mast, Forks, and Carriage Options:
- Versatile Mast Choices: For routine lifting tasks, choose between a 15-foot standard mast or upgrade to a 22-foot standard mast for additional reach and capacity. Both options are engineered to deliver reliable performance in various applications.
- Fork Selections for Every Job: Customize your load handling with 48-inch pallet forks, available in both ITA Class 3 hook-type and shaft-type configurations. These forks ensure compatibility with a wide range of materials and pallet sizes.
- Enhanced Load Stability: Add a 60-inch backrest to your forklift for improved safety and load stability during transport.
- Special Feature Requests: For unique job requirements, other mast/fork/carriage combinations are available through special feature requests, offering tailored solutions for your specific needs.
Hydraulic System Enhancements:
- Auxiliary Hydraulics: Opt for a 4-section valve for auxiliary hydraulics, expanding the forklift’s capability to operate additional attachments and providing greater versatility on the job site.
Operator Environment Upgrades:
- Load Control: Optional load control improves material handling precision and safety, allowing for smoother operation and enhanced load stability.
- Deluxe Suspension Seat: Enhance operator comfort during long shifts with a deluxe suspension seat featuring lumbar support and height adjustments, ensuring optimal ergonomics and reducing operator fatigue.
Additional Options:
- Customization with Special Paint: Personalize your forklift with unique paint options, allowing for brand consistency or visibility enhancements.
- Sitewatch Telematics: Leverage Sitewatch Telematics’ power for advanced fleet management, operational insights, and maintenance schedules, ensuring your equipment is always ready and efficient.
CASE 586H Specs
| Specification | Details |
|---|---|
| Model | FPT F5HFL463D |
| Emissions Certification | Tier 4 Final |
| Type | Diesel, 4-stroke, turbocharged |
| Cylinders | 4 |
| Bore/Stroke | 3.9 in x 4.33 in (99 mm x 110 mm) |
| Displacement | 207 in³ (3.4 L) |
| Fuel injection | Direct high pressure common rail |
| Fuel | Diesel |
| Cooling | Charged air |
| Engine speeds* RPM – Rated speed, full load | 2200 |
| Low idle | 900 – 1000 |
| High idle, no load | 2330 – 2430 |
| Horsepower @ 2200 RPM – Gross | 74 hp (55 kW) |
| Net | 68 hp (51 kW) |
| Maximum torque @ 1400 RPM – Gross | 233 lb·ft (316 N·m) |
| Net | 220 lb·ft (298 N·m) |
| Torque rise at rated speed | 35% +/- 5% |
| Radiator – Core size area | 486 in² (3 145 cm²) |
| Rows of tubes | 5 |
| 33° fan – Style | 7 blade suction |
| Ratio | 1.1:1 |
| Engine oil | CJ-4 – semi-synthetic 10W40 |
| Pump operating angle ratings – Side-to-side | Rated 35° |
| Fore and aft | Rated 35° |
| Oil filtration | Replaceable, spin-on |
| Transmission – standard | 4F-4R Power Shuttle Synchromesh Transmission manual gear shift fully synchronized |
| Gear ratios Forward/Reverse – 1st | 5.603/5.603 |
| 2nd | 3.481/3.481 |
| 3rd | 1.584/1.584 |
| 4th | 0.793/0.793 |
| Travel speeds mph (kph) – 1st | 3.8 (6.1) |
| 2nd | 6.1 (9.8) |
| 3rd | 12.8 (20.6) |
| 4th* | 24.0 (38.6) |
| Torque converter ratio | 3.01 |
| Differential lock | On-the-go push-button activation |
| Drive/steer axle – Differential ratio | 2.5/2.0 |
| Planetary hub ratio | 6.4/6.0 |
| Total reduction ratio | 16.0/12.0 |
| Service brakes | Individually applied, hydraulically actuated, outboard mounted, wet disc, 2 per side |
| Parking brakes | Transmission Mounted spring applied hydraulic release – SAHR |
| Voltage | 12 Volts |
| Alternator | 120 amp |
| Battery | 950 cold-cranking amps |
| Power plugs | 2 30 amps total |
| ROPS/FOPS certified protective canopy | Yes |
| Wide walk through platform | Yes |
| Vinyl seat | Yes |
| 3 in (76 mm) seat belt | Yes |
| Molded front fenders | Yes |
| Rearview mirrors, left and right | Yes |
| Gauges | Hour meter; Engine RPM; Engine coolant temperature; Transmission oil temperature; Job timer; Fuel level |
| Warning lights | Air cleaner restriction; Alternator; Cold start; Engine oil pressure; Hydraulic oil filter bypass; Parking brake engagement; Engine coolant temp; Battery voltage |
| Audible alarms | Coolant temperature; Engine oil pressure; Parking brake engagement; Converter oil temperature; Backup; Horn |
| Configuration 1 – Lightest | 13,682 lb (6 206 kg) |
| Configuration 2 – Heaviest | 14,621 lb (6 632 kg) |
| Add-on weights – Masts: 15 ft Std. Mast | 1,863 lb (845 kg) |
| 22 ft Std. Mast | 2,608 lb (1 183 kg) |
| Carriage – 60 in | 110 lb (50 kg) |
| Forks – Hook style | 322 lb (146 kg) |
| Shaft style | 298 lb (135 kg) |
| Pump | Gear pump |
| Capacity | 18 gal/min @ 3,000 psi (68 L/min @ 207 bar) |
| Fuel tank | 31 gal (119 L) |
| Hydraulic system – Total | 74 qt (70 L) |
| Reservoir w/ filter | 58 qt (55 L) |
| Reservoir w/o filter | 56 qt (53 L) |
| Transmission – 2WD: Total | 19.5 qt (18.5 L) |
| Reservoir | 12.6 qt (11.9 L) |
| 4WD: Total | 22.0 qt (20.8 L) |
| Reservoir | 15.2 qt (14.4 L) |
| Front axle – Differential and Planetaries | 14.4 qt (13.6 L) |
| Rear axle – Differential and Planetaries | 5.8 qt (5.5 L) |
| Engine oil w/ filter | 8.5 qt (8.0 L) |
| Cooling system | 18.3 qt (17.3 L) |
CASE 586H Dimensions
| Dimension | 15 ft (4.57 m) Std. Mast | 22 ft (6.71 m) Std. Mast |
|---|---|---|
| A. Overall height to top of mast – mast closed | 10 ft 7 in (3.23 m) | 10 ft 7 in (3.23 m) |
| B. Overall operating height – mast raised to full height | 18 ft 0 in (5.49 m) | 25 ft 2 in (7.67 m) |
| C. Maximum fork height – forks horizontal | 15 ft 0 in (4.57 m) | 22 ft 0 in (6.71 m) |
| Maximum Freelift fork height | 3 in (76 mm) | 2 in (51 mm) |
| D. Overall height to top of ROPS: 19.5 L x 24, 12-ply | 104.1 in (2 645 mm) | 104.1 in (2 645 mm) |
| E. Overall length with 48 in forks | 16 ft 2 in (4.93 m) | 16 ft 3 in (4.95 m) |
| F. Wheelbase: 2WD | 84 in (2.13 m) | 84 in (2.13 m) |
| F. Wheelbase: 4WD | 84.5 in (2.15 m) | 84.5 in (2.15 m) |
| G. Ground clearance: 2WD | 10.3 in (260 mm) | 10.3 in (260 mm) |
| G. Ground clearance: 4WD | 10.3 in (260 mm) | 10.3 in (260 mm) |
| H. Forward mast tilt | 45º | 45º |
| I. Backward mast tilt | 15º | 15º |
| Overall width – outside tires | 7 ft 0 in (2 117 mm) | 7 ft 0 in (2 117 mm) |
| Mast side shift – right | 3 in (76 mm) | 3 in (76 mm) |
| Mast side shift – left | 3 in (76 mm) | 3 in (76 mm) |
Warranty
Base & Extended Warranty Coverage
- 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
- 2-Year /2,000-Hour Extended Engine Warranty
Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.
Drive Train Warranty – Drive (flex) plates / flywheel, drive axle assembly, drive couplings, drive shafts / universal joints, final drive / planetary, hydraulic drive motor, hydraulic drive pump, hydraulic pump when used as a power source for drive pump or drive motor, propulsion planetary drive, pump drive coupling, pump drive gearbox, seals in idlers and rollers, swing reducer transmission, torque converter, track steering brakes and clutch, transfer gear group, transmission charge pump, transmission / transmission control valve, transmission electronic controller, trencher drive gearbox, turntable bearing / swing gear / hydraulic swivel, and wet brakes / wet clutch.
Purchased Protection
Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Forklift models.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
Additional information
| Condition | New |
|---|---|
| Model |
