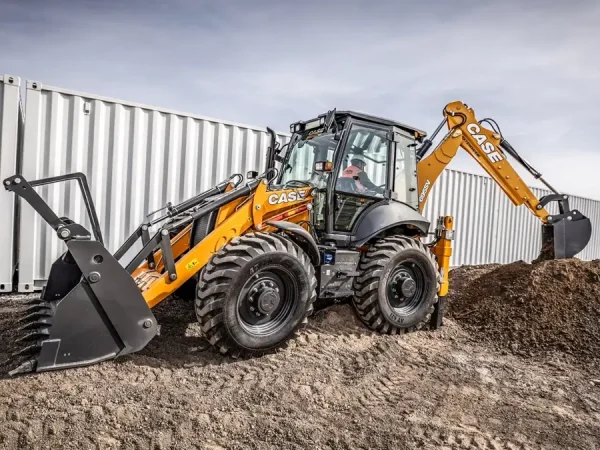

CASE 695SV Side Shift Construction King Backhoe Loader


Request more information:

Meet the new CASE 695SV Side Shift Construction King, a machine designed for enhanced versatility and efficiency. This backhoe loader’s side shift configuration is perfect for projects requiring precision close to structures or when digging rectangular trenches without repositioning, significantly saving time and effort on the job site.

The 695SV excels in multitasking with its tool carrier loader arm, effectively performing as both a backhoe and a wheel loader. This dual functionality means potentially reducing the number of machines needed on site, enhancing operational efficiency. Its 4WD, 4-wheel steering, and four equal-sized tires ensure exceptional traction and maneuverability in challenging conditions.

Horsepower: 110 hp | Dig Depth: 19’7”

BROCHURE: CASE Backhoe Loader Brochure

SPECS: CASE 695SV Side Shift Backhoe Loader

Categories: , Tag:

CASE 695SV Side Shift Construction King Backhoe Loader For Sale

For sale at Luby Equipment: CASE 695SV Center Pivot Construction King Backhoe Loader

Introducing the formidable CASE 695SV Center Pivot Construction King, a true behemoth in the backhoe loader market weighing in at 21,540 lbs. This machine is built to handle just about anything, from digging and loading to pushing, trenching, and drilling. Its standout feature? Four equal-sized tires that work in tandem with 4WD and 4-wheel steering, giving it unparalleled mobility and the ability to maneuver through challenging terrains with ease.

The tool carrier loader arm is particularly versatile, making it perfect for truck loading and general loading operations, which eliminates the need for an additional wheel loader on site. The PowerShift transmission, a standard feature, ensures smooth shifting and optimal power use across all tasks. The traditional center-pivoting boom enhances the machine’s flexibility, allowing for precision in a wide range of applications.

To top it all off, the CASE 695SV features a spacious and comfortable cab, designed to keep operators comfortable during long hours on the job. Because when it’s time to dig big, you should do it with comfort and style.

Now available at Luby Equipment, the CASE 695SV Center Pivot Construction King is ready to take on the most demanding projects with power, precision, and ease. Whether you’re involved in construction, agriculture, or utility work, this backhoe loader is engineered to exceed expectations and enhance productivity.

695SV Side Shift Specifications

Backhoe Type: Side Shift

Engine Manufacturer: FPT
Engine Model: F5BFL413A*B
Displacement: 219.7Inches³ / 3.6ltr
Engine Output – Gross: 110 hp / 82 kW
Transmission Type: Power Shift
Number Of Travel Speeds: 4F – 3R
Drive – 2WD / 4WD: 4WD

Width – Standard Bucket: 7 ft 10 in / 2400mm
Extending Stick: Yes
Maximum Dig Depth – Longest Dipper: 19 ft 4 in / 5880mm

Fuel Tank: 34.9 gallons (US) / 132 ltr

Operating Weight: 22245lbs / 10090kg

695SV Side Shift Warranty

Base & Extended Warranty Coverage

  • 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
  • 2-Year/2,000-Hour Extended Engine Warranty

Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump. Drive Train Warranty – Drive (flex) plates / flywheel, drive axle assembly, drive couplings, drive shafts / universal joints, final drive / planetary, hydraulic drive motor, hydraulic drive pump, hydraulic pump when used as a power source for drive pump or drive motor, propulsion planetary drive, pump drive coupling, pump drive gearbox, seals in idlers and rollers, swing reducer transmission, torque converter, track steering brakes and clutch, transfer gear group, transmission charge pump, transmission / transmission control valve, transmission electronic controller, trencher drive gearbox, turntable bearing / swing gear / hydraulic swivel, and wet brakes / wet clutch.

Purchased Protection Plan

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Loader/Backhoe models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
