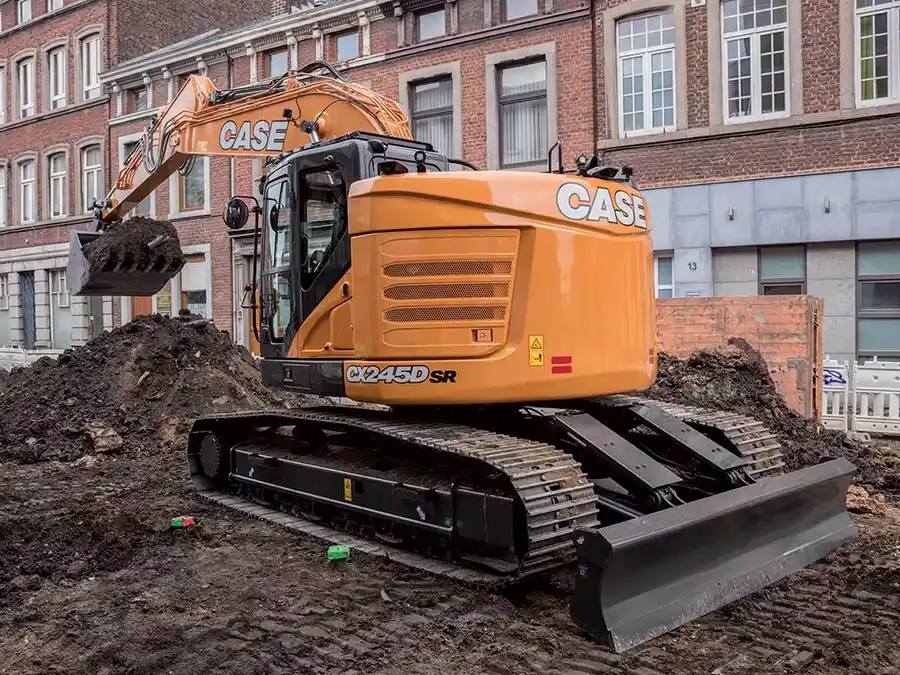

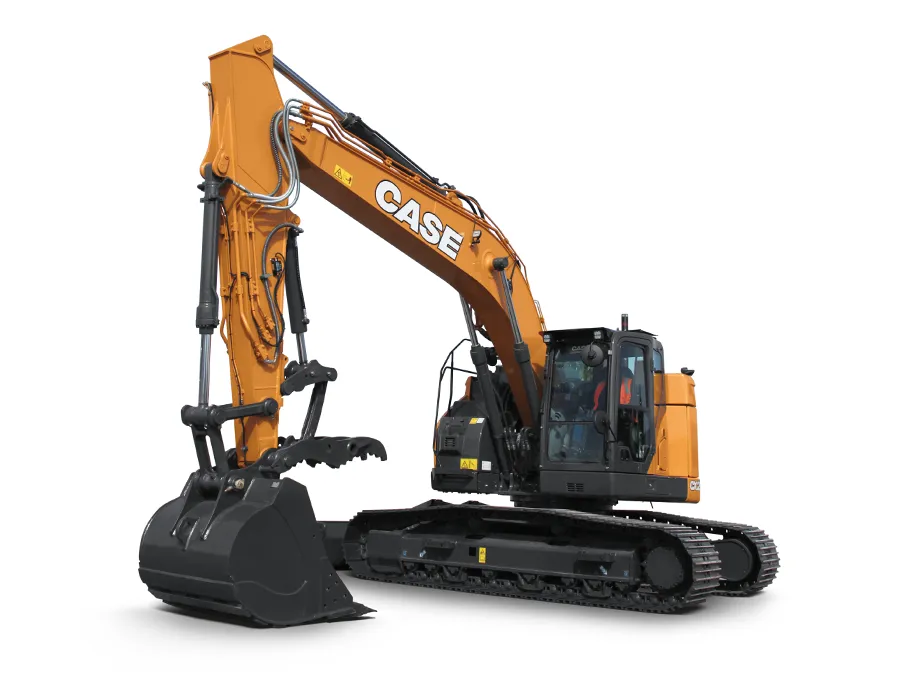

CASE CX245D SR Full Size Excavator

Enhanced Productivity for Tight Spaces:

• CASE Intelligent Hydraulic System: Ensures faster cycle times by optimizing the hydraulic flow path, enhancing efficiency and responsiveness.
• Three Power Modes: Tailored to various applications with Automatic (A) for the perfect balance, Heavy Duty (HD) for high workloads, and Speed Priority (SP) for maximum productivity in demanding conditions.

Fuel Efficiency Meets Tier 4 Final Standards:

• Advanced Emissions Control: This technology utilizes a combination of Selective Catalytic Reduction (SCR) and Diesel Oxidation Catalyst (DOC) technologies, eliminating the need for a Diesel Particulate Filter (DPF) and its associated maintenance.
• CASE Intelligent Hydraulic System: Further contributes to making the CX245D SR the most potent and fuel-efficient minimum swing radius excavator in the CASE lineup.

Operator Comfort and Visibility:

• Spacious Cab: This vehicle offers unmatched visibility and comfort, featuring a pressurized and iso-mounted cab to minimize noise and vibration.
• Enhanced Operator Experience: The machine includes a standard Bluetooth radio for hands-free operation, a rearview and side camera feeding a 7-inch widescreen monitor, and the optional CASE Max View Monitor for 270° visibility around it.

Serviceability for Maximum Uptime:

• Easy Access for Maintenance: Daily checks and routine service are simplified with features like hydraulic oil site gauges, DEF level sight gauges, grouped service points, and auto-locking side panels.
• Extended DEF Tanks: Ensure a refill frequency of 4-5 times per fuel fill, minimizing downtime.

Precision Technology with OEM-Fit Machine Control:

• Optional 2D and 3D Machine Control Solutions: These are available with OEM-Fit precision, removing the uncertainty of matching machine and system and ensuring seamless integration and operation.
• Enhanced Value: These systems simplify the acquisition process and boost the residual/resale value of the CX245D SR, assuring future buyers of its reliability and performance.

Protected by CASE ProCare:

Enjoy peace of mind with CASE ProCare, ensuring your investment in the CX245D SR is backed by preventive maintenance, SiteWatch telematics, and comprehensive support from CASE and your local CASE dealer.

Your Go-To Excavator for Restricted Spaces:

With its compact design, advanced features, and commitment to productivity and efficiency, the CASE CX245D SR Full Size Excavator is the ideal choice for tackling challenging projects in confined spaces.

Engineered for Efficiency:

• Powertrain: Equipped with an Isuzu four-cylinder turbocharged diesel engine, the CX245D SR combines power with environmental responsibility, featuring a Tier 4 Certified system with a turbocharged, air-cooled intercooler and SCR system.
• Fuel Management: Advanced electronic fuel injection and a high-pressure standard rail system work with the Diesel Oxidation Catalyst (DOC) to optimize fuel efficiency and reduce emissions.
• Maintenance Simplified: Features like the remote oil filter, green plug oil drain, and extended service intervals (500-hour engine oil, 1,000-hour hydraulic filter) are designed for easy upkeep.

Fuel Economy Systems:

• Intelligent Idle Management: With Auto-idle, One-touch idle, and Idle shut-down, the CX245D SR maximizes fuel efficiency while minimizing unnecessary engine wear.
• Hydraulic Efficiency Controls: These systems enhance operational efficiency and control, including boom economy control (BEC), auto economy control (AEC), swing relief control (SWC), and spool stroke control (SSC).

Operator Comfort and Visibility:

• Climate Control: A robust air-conditioning system (13,492 BTU/hr) and heater (12,892 BTU/hr) maintain comfort regardless of external conditions.
• Enhanced Visibility: A rearview camera and strategically placed mirrors provide comprehensive visibility, ensuring safety and precision in operation.
• Ergonomic Seating: An air-suspension seat delivers optimal comfort and support through long working hours.

Precision Hydraulics:

• Advanced Hydraulic Features: Auto power boost, swing priority, and selectable work modes allow smooth and efficient machine operation.
• Customizable Controls: ISO pattern controls, a control pattern selector, and pre-set auxiliary pump settings cater to operator preference and job requirements.

Robust Upper Structure and Undercarriage:

• Durable Design: Features like the isolation-mounted cab, common key vandal locks, and a swivel guard belly pan underscore the CX245D SR’s build quality.
• Sturdy Undercarriage: 31.5-inch triple semi-grouser steel shoes and a complete overlap turntable bearing tub provide stability and longevity.

Attachments and Utility:

• Versatile Boom and Arm: A standard boom (18 ft 8 in) and arm (9 ft 8 in) with heavy-duty linkage are designed for various tasks.
• Integrated Work Lights: Boom-mounted work lights enhance visibility, extending safe operational hours.

Advanced Telematics:

• CASE SiteWatch™: This system includes hardware and a 3-year Advanced data subscription, offering invaluable insights into machine performance, maintenance needs, and operational efficiency.

The CASE CX245D SR: Your Compact Solution Without Compromise

With its comprehensive suite of standard features, the CASE CX245D SR Full Size Excavator is engineered to deliver superior performance, exceptional fuel efficiency, and unparalleled operator comfort in the most challenging urban environments.

Optimized Operator Environment:

Enhance safety and comfort within the cab with these optional features:

• FOPS Cab Top Guard – Level 2: Provides additional protection against falling objects.
• Front Grill Guard: A 2 x 2 screen mesh guards against debris.
• Front Rock Guards: Choose from vertical bars in two-piece (OPG 1) or fixed one-piece (OPG 2) configurations for extra durability.
• Vandal Guard: Secure your machine against unauthorized access.
• Rain Deflector and Sun Visor: Improve visibility and comfort in all weather conditions.
• Side-View Camera: Expand your visibility on the job site for safer operation.

Hydraulic System Customization:

Tailor the hydraulic system to your specific project needs with:

• Auxiliary Hydraulics: Options include single-acting, double-acting, multi-function, and secondary low-flow, all joystick-activated for precise control.
• Hose Burst Check Valve (HBCV): Enhances safety by preventing the accidental dropping of attachments.

Undercarriage Adaptability:

Select the perfect undercarriage configuration for your terrain:

• Rubber and Steel Shoes: Choose from 23.6 in (600 mm) rubber shoes for delicate surfaces or steel shoes with triple semi-grousers in 23.6 in (600 mm) and 27.6 in (700 mm) sizes for rugged conditions.

Attachment Versatility:

Expand the capabilities of your CX245D SR with a range of attachments:

• Short Arm Option: A 7 ft 10 in (2.40 m) arm for enhanced strength and digging force.
• Coupler/Case Multi-Pin Grabber: Allows for quick and easy attachment changes.
• Bucket Selection: Heavy-duty and extreme-duty options cater to all digging conditions.
• Load Holding Control: Improves safety and control when handling heavy loads.
• Free Swing: Provides smoother operation when multitasking. This kit can be ordered through Service Parts.

Machine Control Precision:

Achieve higher precision and efficiency with Leica machine control systems:

• Leica iCON iXE2 – 2D System: Ideal for projects that require accurate grading and excavation.
• Leica iCON iXE3 – 3D System: Provides advanced machine control with real-time positioning for complex site layouts.

Elevate Your CASE CX245D SR Experience

With these optional features, the CASE CX245D SR Full Size Excavator can be tailored to meet the unique demands of your projects, ensuring maximum efficiency, safety, and operator satisfaction.

Specification Category	Detail
ENGINE
Model	Isuzu AR-4HK1X, Turbocharged with cooled intercooler/SCR System
Emissions Certification	Tier 4 Final
Fuel	Requires ultra-low-sulfur fuel, B5 biodiesel tolerant
Type	Water-cooled, 4 cycle diesel, 4 cylinder inline, high-pressure common rail (electric system), Turbocharger with air-cooled intercooler, SCR system
Cylinders	4-cylinder in-line
Displacement	317 in³ (5.2 L)
Bore/Stroke	4.53 x 4.92 in (115 x 125 mm)
Fuel Injection	Direct injection – electronic
Fuel Filter	Replaceable, full flow spin-on cartridge
Air Filter	Dry type element with warning restriction indicator
Oil Filter	Replaceable, full flow spin-on cartridge
Engine Gradeability	Side-to-side 35°, Fore and aft 35°
Net Horsepower – SAE J1349 @ 1800 RPM	160 hp (119.3 kW)
Net Max. Torque – SAE J1349 @ 1600 RPM	458 lb·ft (621 N·m)
Cooling Operating Range	109° to -13° F (43° to -25° C)
Oil	Requires low-ash oil CJ-4
DRIVETRAIN
Travel Control	Dual stage relief/counterbalance design
Brakes	Mechanical disc
Service Brakes	SAHR disc – each motor
Two Speed Travel	Max. high speed 3.1 mph (5.0 km/h), Max. low speed 2.0 mph (3.2 km/h), Automatic downshift
Drawbar Pull	45,000 lbf (200 kN)
Gradeability	70% – 35-degree slope
ELECTRICAL
Voltage	24 Volts
Alternator Rating	50 amp
Batteries	2 x 12 Volt
Battery Reserve Capacity	92 Ah/5 hours
Work Lights	4 – 24 Volt/70 watt (1 boom, 1 upper, 2 cab), 1 Operator cab 10 watt
OPERATOR ENVIRONMENT
Air-conditioner Output	13,492 BTU/hr
Heater Output	12,892 BTU/hr
Sound Level Inside Cab – ISO6395	70 dBA
Electrical Outlet	12 Volt
Cab Interior Light	10 watt
Rear View Camera	Standard
Seat	Air-suspension
ATTACHMENT
Boom	18 ft 8 in (5.70 m)
Arm Options	9 ft 8 in (2.94 m)
Bucket Digging Force*	31,800 lbf (142 kN) w/ Auto Power Boost 34,600 lbf (154 kN)
OPERATING WEIGHT
Operating Weight	56,900 lb (25,800 kg) with shoes 2 ft 7 in (800 mm), boom 18 ft 8 in (5.70 m), arm 9 ft 8 in (2.94 m), bucket 1,435 lb (651 kg), counterweight 16,400 lb (7,430 kg)
NOTE	With operator, full fuel, standard equipment

Dimension	7 ft 10 in (2.40 m) Arm	9 ft 8 in (2.94 m) Arm
A. Overall Height – With Attachment	10 ft 5 in (3,180 mm)	10 ft 0 in (2,980 mm)
B. Cab Height	10 ft 0 in (3,040 mm)	10 ft 0 in (3,040 mm)
C. Overall Length – With Attachment	29 ft 3 in (8,920 mm)	29 ft 0 in (8,830 mm)
D. Overall Length – Without Attachment	14 ft 8 in (4,470 mm)	14 ft 8 in (4,470 mm)
E. Width of Upper Structure	9 ft 10 in (2,990 mm)	9 ft 10 in (2,990 mm)
F. Track Overall Length	14 ft 8 in (4,470 mm)	14 ft 8 in (4,470 mm)
G. Track Overall Width – With 23.6 in (600 mm) Shoes	10 ft 4 in (2,990 mm)	10 ft 4 in (2,990 mm)
	Track Overall Width – With 23.6 in (800 mm) Shoes	10 ft 6 in (3,190 mm)
H. Track Shoe Width	2 ft 7 in (800 mm)	2 ft 7 in (800 mm)
I. Center to Center – Idler to Sprocket	12 ft 0 in (3,660 mm)	12 ft 0 in (3,660 mm)
J. Upper Structure Ground Clearance	3 ft 4 in (1,020 mm)	3 ft 4 in (1,020 mm)
K. Minimum Ground Clearance	1 ft 5 in (440 mm)	1 ft 5 in (440 mm)
L. Rear Tail Swing Radius	6 ft 4 in (1,790 mm)	6 ft 4 in (1,790 mm)
Operating Weight	59,600 lb (27,000 kg)	59,600 lb (27,000 kg)
Ground Pressure	–	5.8 psi (0.4 bar) with 800 mm grouser

Base & Extended Warranty Coverage

CASE ProCare applicable on select new heavy machine orders.

See your CASE dealer for model availability and timing.
