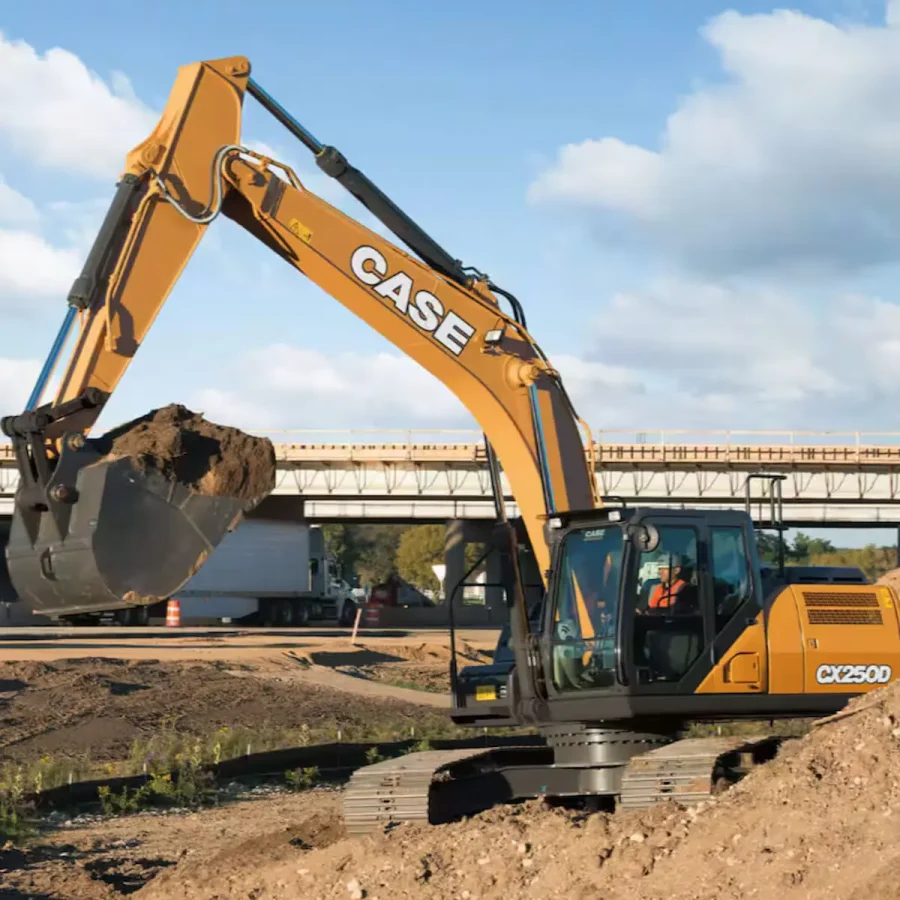

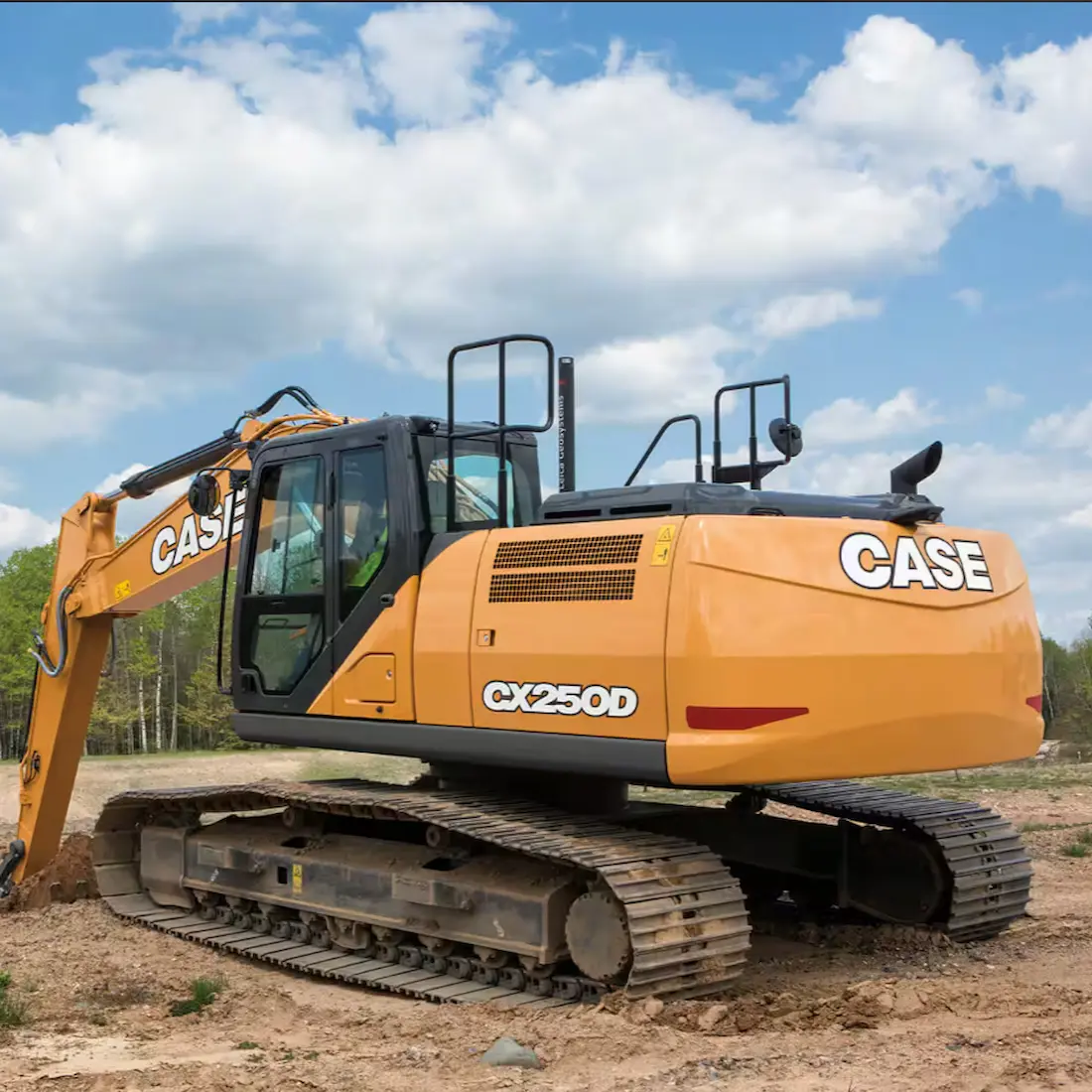

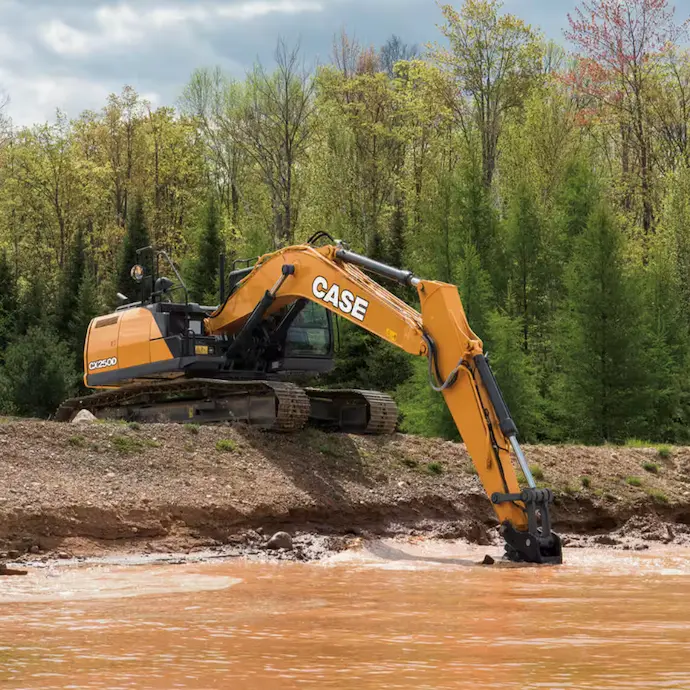

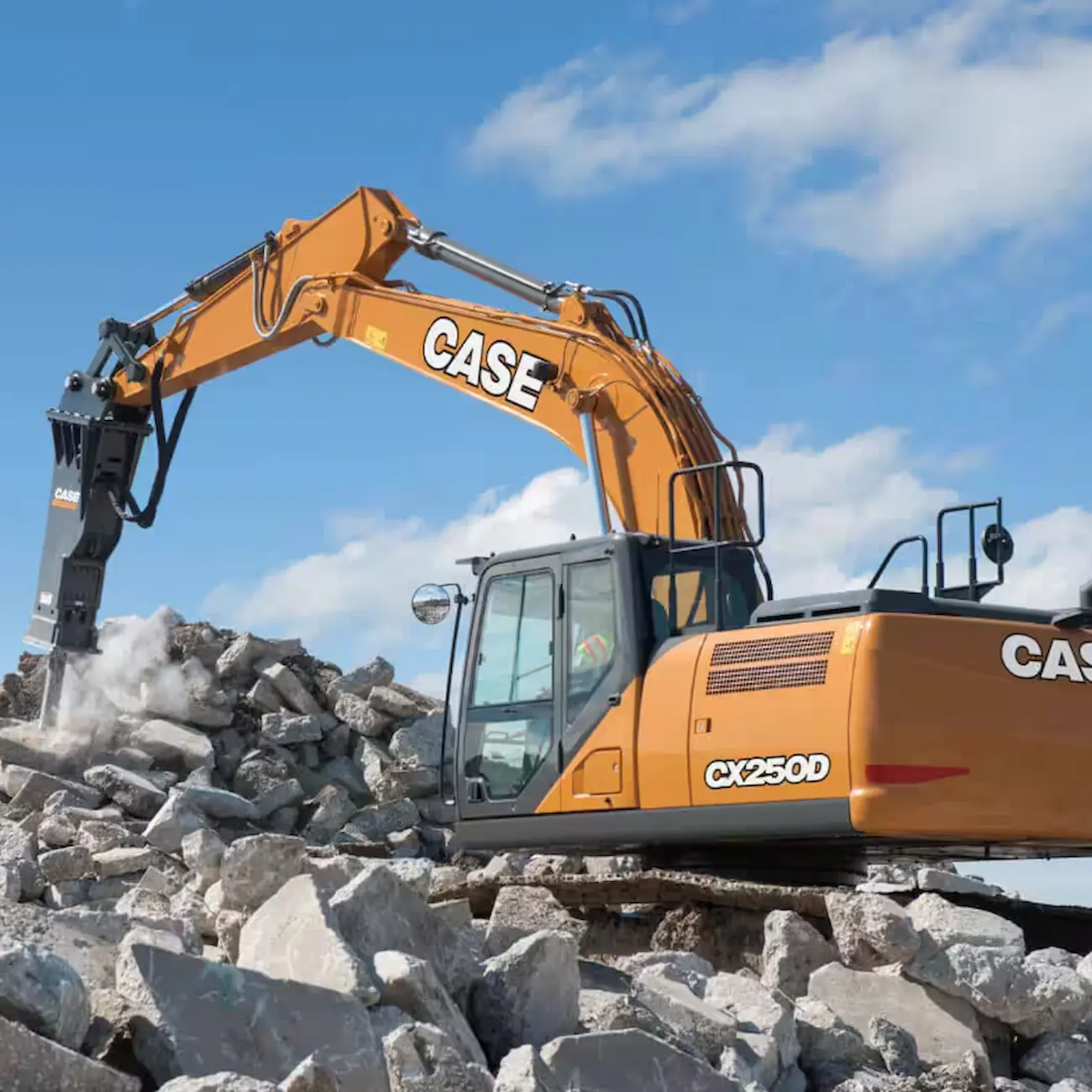

CASE CX250D Full Size Excavator


Request more information:

The CX250D, weighing just under 57,000 pounds, is a powerhouse within the CASE D Series lineup. Its versatility and reliability shine across various applications, from concrete recycling to extensive site development. This excavator embodies the perfect blend of formidable power, exceptional precision, and unmatched efficiency.

BROCHURE: Excavators-D-Series-Machine-Control-Brochure-2



Categories: , , Tag:

CASE CX250D Full Size Excavator

The CX250D, weighing just under 57,000 pounds, is a powerhouse within the CASE D Series lineup. Its versatility and reliability shine across various applications, from concrete recycling to extensive site development. This excavator embodies the perfect blend of formidable power, exceptional precision, and unmatched efficiency.

CX250D Features

Enhanced Productivity:

  • CASE Intelligent Hydraulic System: Upgraded with an electronically controlled hydraulic pump, larger control valve, and solenoid valves, the CX250D boasts increased breakout force and lifting strength, ensuring rapid and smooth operation throughout the work cycle.
  • Improved Cycle Times: Experience operations up to 12% faster than the previous C Series, enhancing job site efficiency.
  • Free-Swing Feature: Offers seamless control during tasks such as craning, pipe laying, or handling offset loads, by allowing the carriage to spin freely.

Fuel Efficiency Redefined:

  • SCR Tier 4 Final Solution: Not only cleaner but also 14% more fuel-efficient, without compromising power. The SCR system ensures the engine performs optimally, offering full-throttle response while simplifying maintenance without DPF regeneration or additional downtimes.

Unparalleled Comfort and Visibility:

  • Ergonomic Cab Design: Spacious with enhanced entry room, foot space, and an air-ride seat designed to minimize pressure points. The seat also offers extensive adjustability for optimum comfort.
  • Advanced Control Layout: Features such as adjustable armrests and pedals, Bluetooth radio, and a climate control system that adapts to sunlight ensure a superior operator experience.
  • Enhanced Awareness: A 7″ widescreen color monitor provides constant rear camera views, increasing job site awareness and safety.

Serviceability for Sustained Performance:

  • Ease of Maintenance: Standard oil sample ports, grouped service points, and auto-locking side panels make routine checks and maintenance hassle-free.
  • Designed for Durability: Added handrails and tilt-out coolers further simplify access and maintenance, ensuring your CASE equipment remains in peak condition.

Precision Technology with OEM-Fit Machine Control:

  • Advanced Machine Control Solutions: Available with optional OEM-Fit 2D and 3D systems, these systems allow for perfect compatibility and installation by certified CASE specialists.
  • Investment Value: This integration streamlines the acquisition process and enhances the excavator’s residual/resale value, assuring future buyers of its reliability and advanced capabilities.

Protected by CASE ProCare:

The CX250D comes with the assurance of CASE ProCare, offering comprehensive support, preventive maintenance, and SiteWatch telematics to protect your investment and give you peace of mind.

The CASE CX250D: Your Partner in Progress

With its dynamic blend of power, efficiency, and precision, the CASE CX250D Full-Size Excavator is designed to tackle the most demanding tasks easily.

CX250D Standard Equipment

Engine Excellence:

  • Model: Isuzu AQ-4HK1X, featuring Tier 4 Final Certification with advanced emissions control through Selective Catalytic Reduction (SCR) and a Diesel Oxidation Catalyst (DOC).
  • Performance: A four-cylinder turbo-charged diesel engine equipped with a Variable Geometry Turbocharger (VGT) and electronic fuel injection, delivering power efficiently.
  • Maintenance: Designed with user-friendly features such as dual-stage fuel filtration, a remote oil filter, and a 500-hour engine oil change interval to ensure reliability and ease of service.

Hydraulic Precision:

  • System: The CX250D boasts an electronically controlled hydraulic pump, auto power boost, and auto swing priority, enhancing the machine’s breakout force and responsiveness.
  • Versatility: Features like the auxiliary flow control, boom and arm holding valve, and selectable work modes, including a free-swing function, make this excavator adaptable to various tasks.

Operator Environment:

  • Comfort: A pressurized ROPS/FOPS Level 1 cab with expansive visibility, air-ride seat, and climate control ensures operator comfort and safety.
  • Control: Ergonomic layout with low-effort joystick controls, adjustable armrests, and a sliding cockpit, providing a tailored operating experience.
  • Connectivity: Equipped with a 7-inch LED color monitor, Bluetooth radio, rear-view camera, and an anti-theft start code system, enhancing convenience and security.


  • Access: Grouped service points, auto-locking side panels, and standard oil sample ports simplify routine maintenance checks.
  • Durability: Additional features like handrails, tilt-out coolers, and a comprehensive extra filter kit support long-term performance and ease of service.

Undercarriage and Attachments:

  • Robust Design: The long undercarriage with 31.5-inch triple semi-grouser steel shoes and hydraulic track adjustment is built for stability and longevity.
  • Work Ready: Comes standard with a 19 ft 2 in boom, 9 ft 10 in arm, and heavy-duty bucket linkage, all designed for optimal digging and lifting capabilities.

Advanced Telematics:

  • CASE SiteWatch™ includes hardware and a 3-year Advanced data subscription. It offers detailed machine monitoring and management capabilities to enhance operational efficiency and preventive maintenance.

The CASE CX250D: Built to Last, Designed to Perform

With its comprehensive suite of standard features, the CASE CX250D Full Size Excavator is engineered for heavy-duty performance, operational efficiency, and unparalleled comfort. It’s a versatile and reliable choice for various applications, further protected and supported by CASE ProCare.

CX250D Optional Equipment

Engine Upgrades for Enhanced Performance:

  • Refueling Pump: Simplifies the refueling process for increased efficiency on the job site.
  • Air Pre-cleaner – Cyclone: Ensures cleaner air intake in dusty environments, prolonging engine life.
  • High Ambient Temperature Cooling Package: Optimizes the excavator’s performance in high-temperature conditions, ensuring reliability.

Hydraulic Customization for Precise Operations:

  • Auxiliary Hydraulics: Choose from single-acting, double-acting for thumbs, multi-function with electronic pressure control, or secondary low-flow options for versatile attachment operation.
  • Proportional Hydraulic Controls: Offers precise control over hydraulic attachments, enhancing job site productivity.
  • Hose Burst Check Valve (HBCV): Adds an extra layer of safety by preventing the accidental dropping of attachments.

Attachment Versatility for Every Task:

  • Arm Options: Select a heavy-duty 8 ft 4 in arm for strength or an 11 ft 6 in long arm for extended reach.
  • Quick Coupler/Case Multi-Pin Grabber: Facilitates easy and fast attachment changes, increasing versatility and efficiency.
  • Tool Selection: Equip your excavator with various tools, including heavy-duty buckets, hammers, thumbs, and compaction plates tailored to your project needs.
  • Load Holding Control: Enhances control and safety when handling heavy loads.

Upper Structure Protection and Utility:

  • Rubber Bumper Guard: Available through Service Parts to protect the excavator’s body from impacts and abrasions.

Undercarriage Options for Stability and Traction:

  • Steel Shoes: For optimal stability and traction on various terrains, choose from 23.6 in or 27.6 in triple semi-grouser shoes.
  • Track Guides – Triple: Ensures better track alignment and durability, enhancing the excavator’s lifespan.

Enhanced Operator Environment for Safety and Comfort:

  • FOPS Cab Top Guard – Level 2: Offers additional protection against falling debris.
  • Front Grill and Rock Guards: Protect the machine’s front from impacts with two or one-piece vertical bar options.
  • Vandal Guard: Secures the front window against potential damage or unauthorized access.
  • Sun Visor and Rain Deflector: Improves visibility and operator comfort in all weather conditions.
  • Side-View Camera and LED Package: Increases visibility around the excavator, ensuring safer operations.

Advanced Machine Control for Precision Excavating:

  • Leica iCON iXE2 – 2D System: Ideal for projects requiring accurate depth and slope control.
  • Leica iCON iXE3 – 3D System: Offers advanced GPS technology for precise positioning and excavation, enhancing efficiency and accuracy.

Customize Your CASE CX250D for Optimal Performance

With a wide range of optional equipment, the CASE CX250D Full Size Excavator can be customized to meet the specific demands of your projects, ensuring maximum productivity, safety, and operational efficiency.

CX250D Specs

Specification CategoryDetails
ModelIsuzu AQ-4HK1X
Emissions CertificationTier 4 Final
Fuel RequirementsUltra-low sulfur fuel, B5 biodiesel tolerant
TypeWater-cooled, 4-cycle diesel, high-pressure common rail system – electric control, VGT Turbocharger with air-cooled intercooler, SCR system
Cylinders4-cylinder in-line
Displacement317 in³ (5.2 L)
Bore/Stroke4.53 x 4.92 in (115 x 125 mm)
Fuel InjectionDirect injection – electronic
Fuel FilterReplaceable, full flow spin-on cartridge
Air FilterDry type element with warning restriction indicator
Oil FilterReplaceable, full flow spin-on cartridge
Engine GradeabilitySide-to-side 35°, Fore and aft 35°
Net Horsepower – SAE J1349 @ 2000 RPM177 hp (132.1 kW)
Net Max. Torque – SAE J1349 @ 1800 RPM458 lbf·ft (621 N·m)
Cooling Operating Range113° to -4°F (45° to -20°C)
Oil RequirementLow-ash oil CJ-4
Travel ControlDual-stage relief/counterbalance design
BrakesMechanical disc, SAHR disc for each motor
Two-Speed TravelMax. high speed 3.4 mph (5.5 km/h), Max. low speed 2.2 mph (3.2 km/h)
Drawbar Pull44,962 lbf (200 kN)
Gradeability70% – 35° Slope
Voltage24 Volts
Alternator Rating50 amp
Batteries2 x 12 Volt
Battery Reserve Capacity92 Ah/5 hour
Work Lights4 – 24 Volt/70 watt (1 boom, 1 upper, 2 cab)
Operator Environment
Air Conditioner Output18,100 BTU/hr
Heater Output20,150 BTU/hr
Sound Level Inside Cab – ISO639570 dBA
Electrical Outlet12 Volt
Cab Interior Light10 watt
Rear View CameraStandard
SeatAir-suspension, heated and 65° tiltable

CX250D Dimensions

Dimension9 ft 10 in (3.0 m) Arm8 ft 2 in (2.5 m) Arm11 ft 6 in (3.52 m) Arm
A. Overall Height – With Attachment10 ft 6 in (3,200 mm)11 ft 0 in (3,350 mm)11 ft 0 in (3,360 mm)
B. Cab Height10 ft 0 in (3,050 mm)10 ft 0 in (3,050 mm)10 ft 0 in (3,050 mm)
Overall Height to Top of Guardrail10 ft 11 in (3,340 mm)10 ft 11 in (3,340 mm)10 ft 11 in (3,340 mm)
C. Overall Length – With Attachment32 ft 5 in (9,880 mm)32 ft 8 in (9,950 mm)32 ft 6 in (9,910 mm)
D. Overall Length – Without Attachment17 ft 3 in (5,270 mm)17 ft 3 in (5,270 mm)17 ft 3 in (5,270 mm)
E. Width of Upper Structure9 ft 1 in (2,770 mm)9 ft 1 in (2,770 mm)9 ft 1 in (2,770 mm)
F. Track Overall Length15 ft 3 in (4,650 mm)15 ft 3 in (4,650 mm)15 ft 3 in (4,650 mm)
G. Track Overall Width – With 31.5 in Shoes11 ft 1 in (3,390 mm)11 ft 1 in (3,390 mm)11 ft 1 in (3,390 mm)
H. Track Shoe Width2 ft 7 in (800 mm)2 ft 7 in (800 mm)2 ft 7 in (800 mm)
J. Center to Center – Idler to Sprocket12 ft 7 in (3,840 mm)12 ft 7 in (3,840 mm)12 ft 7 in (3,840 mm)
K. Upper Structure Ground Clearance3 ft 7 in (1,100 mm)3 ft 7 in (1,100 mm)3 ft 7 in (1,100 mm)
L. Minimum Ground Clearance1 ft 5 in (440 mm)1 ft 5 in (440 mm)1 ft 5 in (440 mm)
M. Rear Tail Swing Radius9 ft 8 in (2,950 mm)9 ft 8 in (2,950 mm)9 ft 8 in (2,950 mm)
Operating Weight56,909 lb (25,814 kg)56,358 lb (25,564 kg)57,240 lb (25,964 kg)
Ground Pressure5.5 psi (0.38 bar)5.5 psi (0.38 bar)5.5 psi (0.38 bar)
Note: Dimensions are based on the configuration with a 19 ft 2 in (5.85 m) boom, 31.5 in (800 mm) track shoe, 1,786 lb (810 kg) bucket, 165 lb (75 kg) operator, full fuel, and standard equipment.


Base & Extended Warranty Coverage

CASE ProCare applicable on select new heavy machine orders.

See your CASE dealer for model availability and timing.
