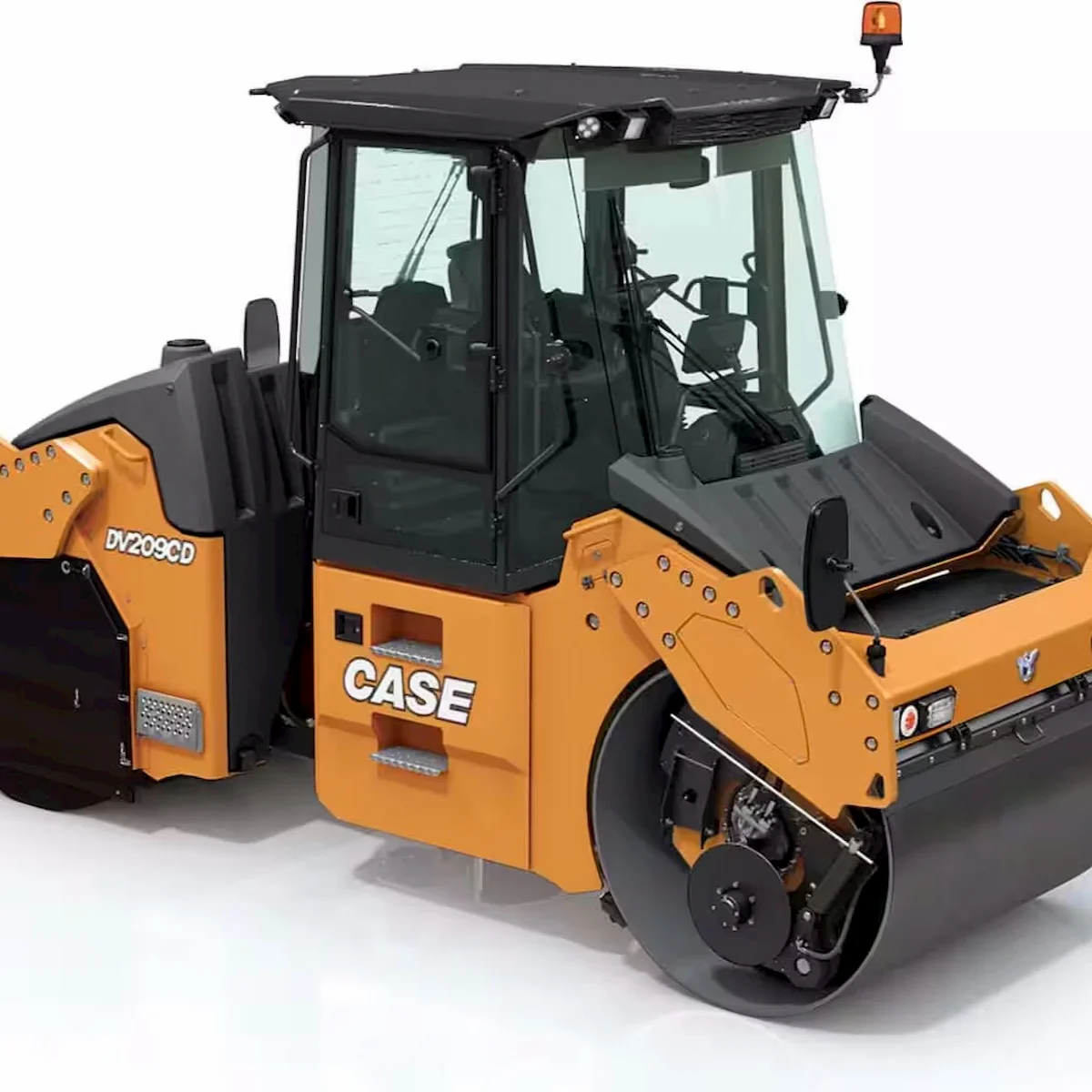

CASE DV209CD Combination Roller
The CASE DV209CD Combination Roller, available at Luby Equipment, excels in delivering unmatched compaction performance with 100% tractive effort, attributed to its balanced drum design. This unique combination roller utilizes a front vibratory drum for adequate compaction, while the rear pneumatic tires ensure a smooth, polished finish. Enhancing the operator experience, the DV209CD features an intuitive platform complemented by a state-of-the-art steering wheel instrument cluster, streamlining operation and making it more user-friendly than ever.
Enhanced Productivity with Advanced Power
- Tier 4 Final 100HP Deutz Engine: This engine powers the DV209CD, ensuring compliance with emissions regulations for DOT projects and beyond.
- Innovative Emission Control Technologies: A combination of EGR, DOC, and SCR after-treatment systems work to reduce emissions and enhance fuel efficiency.
- Fuel Efficiency: The advanced engine, coupled with an updated cooling system and automatic idle control, reduces fuel consumption by up to 15% compared to previous models, making it a cost-effective choice for extensive projects.
Operator Comfort and Enhanced Visibility
- Ergonomic Operator Environment: The spacious cab is designed for comfort and ease of operation, featuring an adjustable sliding/rotating seat that ensures optimal visibility of the drum surfaces, edges, and spray bars.
- Adjustable Controls: The tilting and adjustable-height steering column and adjustable armrests integrated with control switches provide a customizable and comfortable operating experience.
- Multifunctional Display: Mounted on the steering wheel, it offers real-time operational data, precision controls, and diagnostics at the operator’s fingertips, enhancing power and efficiency.
Simplified Serviceability for Maximum Uptime
- Groundline Serviceability: True to CASE’s design philosophy, the DV209CD allows easy maintenance with large swing-out doors on both sides of the machine, granting ground-level access to fluid ports, drains, service checkpoints, and the cooling system. This thoughtful design minimizes downtime and simplifies regular maintenance tasks, ensuring the roller remains operational and efficient.
DV209CD Standard Equipment
Safety and Construction
- Fixed ROPS/FOPS Canopy for enhanced safety.
- Articulated Chassis for improved maneuverability.
- Deutz TCD 3.6 L4/Tier 4 Final Engine ensures robust and compliant performance.
- Hydrostatic Drive offers precise control over both drums. Compaction Efficiency
- Vulcollon Drum Scrapers (fixed) keep drum surfaces clean.
- Machined Tapered Drum Edges allow precise compaction near curbs and other obstructions.
- Drum Offset – Crab Steer enhances maneuverability and compaction around obstacles.
Operator Comfort and Control
- Iso-Mounted Operator’s Platform reduces vibrations for increased comfort.
- Anti-vandal covers protect control panels and instruments.
- Multi-Position Shifting Suspension Seat with Foldable Armrests and an Adjustable Steering Column ensures ergonomic operation.
- Single Lever Speed and Direction Control with Vibration On/Off for easy operation.
- Speed Selector, Smooth Start and Stop, and Return to Center – Offset for precise machine control.
Instrumentation and Visibility
- Intelligent Integrated Display Screen offers essential operational data and diagnostics.
- Worklights with Turn Signals and a Back-Up Alarm enhance job site visibility and safety.
Maintenance and Serviceability
- Spin-On Fuel, Engine Oil, and Hydraulic Filters facilitate easy maintenance.
- Master Disconnect Switch for electrical safety and maintenance.
- 4-Point Lift and Tie Down Provision for easy transportation.
Monitoring and Diagnostics
- Comprehensive Indicator Lights for battery, coolant level, engine temperature, and more.
- Monitor Display Panel provides detailed information on engine RPM, hours, fuel rate, and other crucial metrics.
Water and Vibration Systems
- Pressurized Water System with 3-stage Filtration for effective dust control.
- Front, Rear, and Dual Drum Vibration Control Modes with Auto Stop in Neutral for versatile compaction.
- Dual-Mode Vibratory System for adaptable compaction strategies.
Advanced Telematics
- CASE SiteWatch Telematics with hardware and a 5-year advanced data subscription for machine monitoring and management.
DV209CD Optional Equipment
Comfort and Environmental Control
- Cab with Heat and Ventilation: Provides a comfortable operator environment in various weather conditions.
- Cab Air Conditioning: Keeps the operator cool in hot weather, enhancing comfort and productivity.
- Radio Mounting with 2 Speakers and Antenna: Prepares the cab for radio installation, improving the operator’s environment (radio not included).
Safety and Visibility Enhancements
- Rotating Beacon: Increases visibility on job sites, enhancing safety.
- Cab-mounted LED Work Lights: Improve operator visibility, particularly in low-light conditions.
- 360-Degree Night Illumination Kit: This kit extends visibility around the roller, ensuring safe operation at night or in poorly lit areas.
Performance and Efficiency Upgrades
- Edge Cutters (Right Side, or Both Right and Left Sides): Available in 45 or 60 degrees, these tools allow precise edge compaction and finishing.
- Tiltable Scrapers – Front: Enable easy adjustment to maintain clean drum surfaces and consistent compaction.
- Infrared Thermometer: Provides real-time temperature readings of compacted material, ensuring optimal compaction performance.
Control and Operation Enhancements
- Left-Hand Control Lever: Offers additional control flexibility, catering to operator preference and enhancing ergonomics.
- ACE Force Intelligent Compaction: Delivers advanced real-time compaction monitoring and mapping, optimizing efficiency and compaction quality.
Base & Extended Warranty Coverage
1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
2-Year/2,000-Hour Extended Limited Engine Warranty
Purchased Protection
Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available for up to six years / 7,500 hours on CASE Compaction Equipment.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The Case Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine Case service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
