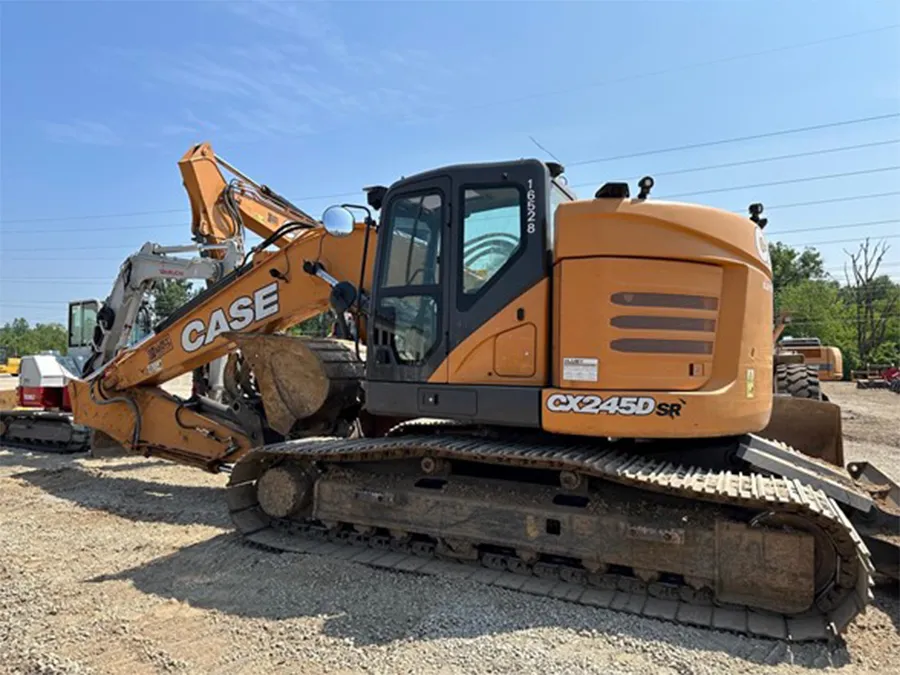

The CASE CX245D SR stands out with its minimum-swing-radius design coupled with a strategically positioned boom, ensuring a compact footprint without compromising on the renowned power, precision, responsiveness, and performance of the CASE D Series. This versatile utility performer excels in tight spaces, making it perfect for road and bridge work, residential projects, and urban construction where space is premium.

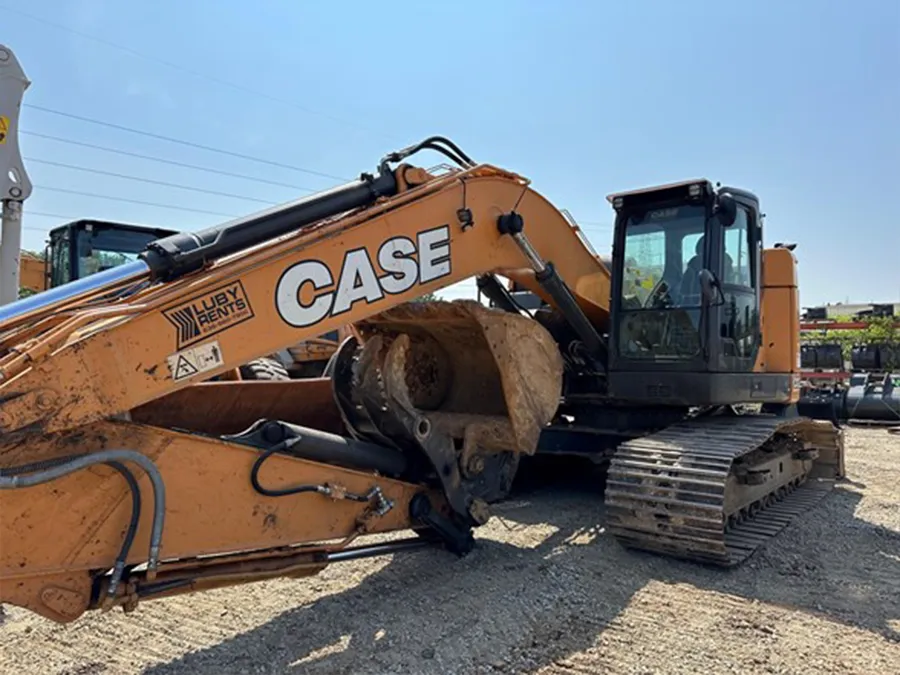

The CASE Excavator CX245D SR combines short-radius maneuverability with full-size digging performance. Its minimum swing radius and optimized boom placement allow operators to work confidently in confined environments while maintaining the power, hydraulic precision, and responsiveness expected from the CASE D Series.
Designed for utility, road and bridge work, residential development, and urban construction, the CX245D SR delivers strong breakout force and smooth multi-function operation in areas where space is limited. It offers the versatility contractors need to stay productive without sacrificing stability or control.
Built for demanding job sites, this short-radius excavator provides the performance of a larger machine in a more compact, job-ready footprint.
CX245D Features
Enhanced Productivity for Tight Spaces:
CASE Intelligent Hydraulic System: Ensures faster cycle times by optimizing the hydraulic flow path, enhancing efficiency and responsiveness.
Three Power Modes: Tailored to various applications with Automatic (A) for the perfect balance, Heavy Duty (HD) for high workloads, and Speed Priority (SP) for maximum productivity in demanding conditions.
Fuel Efficiency Meets Tier 4 Final Standards:
Advanced Emissions Control: This technology utilizes a combination of Selective Catalytic Reduction (SCR) and Diesel Oxidation Catalyst (DOC) technologies, eliminating the need for a Diesel Particulate Filter (DPF) and its associated maintenance.
CASE Intelligent Hydraulic System: Further contributes to making the CX245D SR the most potent and fuel-efficient minimum swing radius excavator in the CASE lineup.
Operator Comfort and Visibility:
Spacious Cab: This vehicle offers unmatched visibility and comfort, featuring a pressurized and iso-mounted cab to minimize noise and vibration.
Enhanced Operator Experience: The machine includes a standard Bluetooth radio for hands-free operation, a rearview and side camera feeding a 7-inch widescreen monitor, and the optional CASE Max View Monitor for 270° visibility around it.
Serviceability for Maximum Uptime:
Easy Access for Maintenance: Daily checks and routine service are simplified with features like hydraulic oil site gauges, DEF level sight gauges, grouped service points, and auto-locking side panels.
Extended DEF Tanks: Ensure a refill frequency of 4-5 times per fuel fill, minimizing downtime.
Precision Technology with OEM-Fit Machine Control:
Optional 2D and 3D Machine Control Solutions: These are available with OEM-Fit precision, removing the uncertainty of matching machine and system and ensuring seamless integration and operation.
Enhanced Value: These systems simplify the acquisition process and boost the residual/resale value of the CX245D SR, assuring future buyers of its reliability and performance.
Protected by CASE ProCare:
Enjoy peace of mind with CASE ProCare, ensuring your investment in the CX245D SR is backed by preventive maintenance, SiteWatch telematics, and comprehensive support from CASE and your local CASE dealer.
Your Go-To Excavator for Restricted Spaces:
With its compact design, advanced features, and commitment to productivity and efficiency, the CASE CX245D SR Full Size Excavator is the ideal choice for tackling challenging projects in confined spaces.
CX245D Standard Equipment
Engineered for Efficiency:
Powertrain: Equipped with an Isuzu four-cylinder turbocharged diesel engine, the CX245D SR combines power with environmental responsibility, featuring a Tier 4 Certified system with a turbocharged, air-cooled intercooler and SCR system.
Fuel Management: Advanced electronic fuel injection and a high-pressure standard rail system work with the Diesel Oxidation Catalyst (DOC) to optimize fuel efficiency and reduce emissions.
Maintenance Simplified: Features like the remote oil filter, green plug oil drain, and extended service intervals (500-hour engine oil, 1,000-hour hydraulic filter) are designed for easy upkeep.
Fuel Economy Systems:
Intelligent Idle Management: With Auto-idle, One-touch idle, and Idle shut-down, the CX245D SR maximizes fuel efficiency while minimizing unnecessary engine wear.
Hydraulic Efficiency Controls: These systems enhance operational efficiency and control, including boom economy control (BEC), auto economy control (AEC), swing relief control (SWC), and spool stroke control (SSC).
Operator Comfort and Visibility:
Climate Control: A robust air-conditioning system (13,492 BTU/hr) and heater (12,892 BTU/hr) maintain comfort regardless of external conditions.
Enhanced Visibility: A rearview camera and strategically placed mirrors provide comprehensive visibility, ensuring safety and precision in operation.
Ergonomic Seating: An air-suspension seat delivers optimal comfort and support through long working hours.
Precision Hydraulics:
Advanced Hydraulic Features: Auto power boost, swing priority, and selectable work modes allow smooth and efficient machine operation.
Customizable Controls: ISO pattern controls, a control pattern selector, and pre-set auxiliary pump settings cater to operator preference and job requirements.
Robust Upper Structure and Undercarriage:
Durable Design: Features like the isolation-mounted cab, common key vandal locks, and a swivel guard belly pan underscore the CX245D SR’s build quality.
Sturdy Undercarriage: 31.5-inch triple semi-grouser steel shoes and a complete overlap turntable bearing tub provide stability and longevity.
Attachments and Utility:
Versatile Boom and Arm: A standard boom (18 ft 8 in) and arm (9 ft 8 in) with heavy-duty linkage are designed for various tasks.
Integrated Work Lights: Boom-mounted work lights enhance visibility, extending safe operational hours.
Advanced Telematics:
CASE SiteWatch™: This system includes hardware and a 3-year Advanced data subscription, offering invaluable insights into machine performance, maintenance needs, and operational efficiency.
The CASE CX245D SR: Your Compact Solution Without Compromise
With its comprehensive suite of standard features, the CASE CX245D SR Full Size Excavator is engineered to deliver superior performance, exceptional fuel efficiency, and unparalleled operator comfort in the most challenging urban environments.
CX245D Optional Equipment
Optimized Operator Environment:
Enhance safety and comfort within the cab with these optional features:
FOPS Cab Top Guard – Level 2: Provides additional protection against falling objects.
Front Grill Guard: A 2 x 2 screen mesh guards against debris.
Front Rock Guards: Choose from vertical bars in two-piece (OPG 1) or fixed one-piece (OPG 2) configurations for extra durability.
Vandal Guard: Secure your machine against unauthorized access.
Rain Deflector and Sun Visor: Improve visibility and comfort in all weather conditions.
Side-View Camera: Expand your visibility on the job site for safer operation.
Hydraulic System Customization:
Tailor the hydraulic system to your specific project needs with:
Auxiliary Hydraulics: Options include single-acting, double-acting, multi-function, and secondary low-flow, all joystick-activated for precise control.
Hose Burst Check Valve (HBCV): Enhances safety by preventing the accidental dropping of attachments.
Undercarriage Adaptability:
Select the perfect undercarriage configuration for your terrain:
Rubber and Steel Shoes: Choose from 23.6 in (600 mm) rubber shoes for delicate surfaces or steel shoes with triple semi-grousers in 23.6 in (600 mm) and 27.6 in (700 mm) sizes for rugged conditions.
Attachment Versatility:
Expand the capabilities of your CX245D SR with a range of attachments:
Short Arm Option: A 7 ft 10 in (2.40 m) arm for enhanced strength and digging force.
Coupler/Case Multi-Pin Grabber: Allows for quick and easy attachment changes.
Bucket Selection: Heavy-duty and extreme-duty options cater to all digging conditions.
Load Holding Control: Improves safety and control when handling heavy loads.
Free Swing: Provides smoother operation when multitasking. This kit can be ordered through Service Parts.
Machine Control Precision:
Achieve higher precision and efficiency with Leica machine control systems:
Leica iCON iXE2 – 2D System: Ideal for projects that require accurate grading and excavation.
Leica iCON iXE3 – 3D System: Provides advanced machine control with real-time positioning for complex site layouts.
Elevate Your CASE CX245D SR Experience
With these optional features, the CASE CX245D SR Full Size Excavator can be tailored to meet the unique demands of your projects, ensuring maximum efficiency, safety, and operator satisfaction.
CX245D Specs
Specification Category
Detail
ENGINE
Model
Isuzu AR-4HK1X, Turbocharged with cooled intercooler/SCR System
31,800 lbf (142 kN) w/ Auto Power Boost 34,600 lbf (154 kN)
OPERATING WEIGHT
Operating Weight
56,900 lb (25,800 kg) with shoes 2 ft 7 in (800 mm), boom 18 ft 8 in (5.70 m), arm 9 ft 8 in (2.94 m), bucket 1,435 lb (651 kg), counterweight 16,400 lb (7,430 kg)
NOTE
With operator, full fuel, standard equipment
CX245D Dimensions
Dimension
7 ft 10 in (2.40 m) Arm
9 ft 8 in (2.94 m) Arm
A. Overall Height – With Attachment
10 ft 5 in (3,180 mm)
10 ft 0 in (2,980 mm)
B. Cab Height
10 ft 0 in (3,040 mm)
10 ft 0 in (3,040 mm)
C. Overall Length – With Attachment
29 ft 3 in (8,920 mm)
29 ft 0 in (8,830 mm)
D. Overall Length – Without Attachment
14 ft 8 in (4,470 mm)
14 ft 8 in (4,470 mm)
E. Width of Upper Structure
9 ft 10 in (2,990 mm)
9 ft 10 in (2,990 mm)
F. Track Overall Length
14 ft 8 in (4,470 mm)
14 ft 8 in (4,470 mm)
G. Track Overall Width – With 23.6 in (600 mm) Shoes
10 ft 4 in (2,990 mm)
10 ft 4 in (2,990 mm)
Track Overall Width – With 23.6 in (800 mm) Shoes
10 ft 6 in (3,190 mm)
H. Track Shoe Width
2 ft 7 in (800 mm)
2 ft 7 in (800 mm)
I. Center to Center – Idler to Sprocket
12 ft 0 in (3,660 mm)
12 ft 0 in (3,660 mm)
J. Upper Structure Ground Clearance
3 ft 4 in (1,020 mm)
3 ft 4 in (1,020 mm)
K. Minimum Ground Clearance
1 ft 5 in (440 mm)
1 ft 5 in (440 mm)
L. Rear Tail Swing Radius
6 ft 4 in (1,790 mm)
6 ft 4 in (1,790 mm)
Operating Weight
59,600 lb (27,000 kg)
59,600 lb (27,000 kg)
Ground Pressure
–
5.8 psi (0.4 bar) with 800 mm grouser
Note: The dimensions provided cater to both the 7 ft 10 in (2.40 m) and 9 ft 8 in (2.94 m) arm configurations, ensuring a comprehensive understanding of the CASE Wheeled Excavator’s specifications for potential buyers.
Warranty
Base & Extended Warranty Coverage
CASE ProCare applicable on select new heavy machine orders.
See your CASE dealer for model availability and timing.
