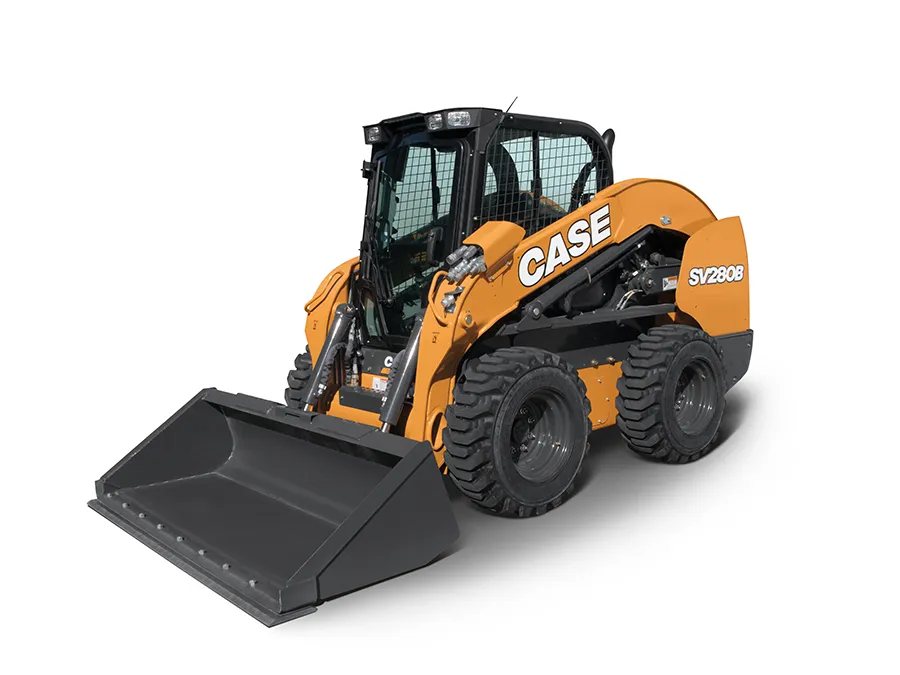

CASE SV280B Skid Steer Loader
Request more information:
The CASE SV280B Skid Steer Loader combines a large-frame machine’s robust power with a medium-frame model’s agility and efficiency. It sets the standard in industry-leading visibility and boasts an intuitive operator interface with an 8-inch LCD multifunction display to enhance performance and ease of use. Powered by a 74-horsepower engine, it offers both standard and high-flow auxiliary hydraulics for versatile application. Additionally, its maintenance-free Tier 4 Final emissions solution eliminates the need for fluid or filter replacements, ensuring hassle-free operation.
PDF Brochure: CASE SV280B Skid Steer Loader Brochure
PDF Specifications: CASE SV280B Skid Steer Loader Specifications
CASE SV280B Skid Steer Loader
The CASE SV280B Skid Steer Loader combines a large-frame machine’s robust power with a medium-frame model’s agility and efficiency. It sets the standard in industry-leading visibility and boasts an intuitive operator interface with an 8-inch LCD multifunction display to enhance performance and ease of use. Powered by a 74-horsepower engine, it offers both standard and high-flow auxiliary hydraulics for versatile application. Additionally, its maintenance-free Tier 4 Final emissions solution eliminates the need for fluid or filter replacements, ensuring hassle-free operation.
SV280B Features
Visibility and Comfort
- Unmatched Visibility: The SV280B is engineered with a backup camera in both forward and reverse, a cab-wide rearview mirror, and expansive front and side windows, ensuring unparalleled visibility down to the bucket. The low entry threshold and sloping rear hood, complemented by 360-degree lighting, enhance visibility and safety. A unique low-profile H-link design significantly improves rear visibility over competitors.
- Operator Comfort: Features one of the industry’s widest cabs for spacious interior comfort. Control handles are ergonomically designed for ease of use, and the cabin includes redesigned controls, cupholders, and air vents to maximize legroom and comfort during long hours of operation.
Optimal Control
- Control Configurations: These are available in electro-hydraulic, mechanical, and hand and foot control configurations, offering versatility to match operator preference.
- Electro-Hydraulic Precision: The 8-inch LCD multi-function display allows precise control, quickly switching between ISO and H operating patterns. It offers the flexibility to customize machine responsiveness (low, medium, high) and independently adjust loader arm and drive responses, tailoring the machine to various tasks or operator styles.
Productivity and Performance
- Robust Capabilities: The SV280B shines with a 2,800-pound rated operating capacity and 75 horsepower, equipped to handle diverse applications efficiently. It boasts standard and high-flow auxiliary hydraulics for high-demand attachments.
- Enhanced Efficiency: Optional electro-hydraulic controls and the 8-inch LCD display empower operators to maximize the machine’s compact yet powerful platform.
Ease of Ownership
- Maintenance Simplicity: Critical checks and service points are conveniently located at the machine’s rear for easy access. The 8-inch LCD display offers real-time operation and performance data, simplifying routine checks.
- Maintenance-Free Emissions Solution: Powered by a 74-horsepower engine, the SV280B benefits from a Tier 4 Final emissions solution that is maintenance-free. This eliminates the need for fluids and filter replacements and ensures uninterrupted productivity.
SV280B Standard Equipment
Operator Environment
- Safety and Comfort: ROPS/FOPS Level 1 canopy with side screens, tilt ROPS/FOPS, rear window with emergency escape, and a deluxe cloth, air suspension seat with a 2-inch retractable 3-point lap seat belt, heater, and lumbar support.
- Controls: Hand and foot throttle, alarm package including back-up and horn, rearview mirror, headliner, dome light, top window, cup holder, 12V power plug socket, footrest, seat pocket, and a padded seat bar with integral armrests for enhanced operation comfort.
- Operational Efficiency: The loader control lockout system, electric parking brake control, operator’s compartment floor cleanout, proportional auxiliary hydraulic control on the joystick, and an advanced instrument cluster featuring a digital hour meter, operator’s read, fuel level LCD bar graph with alarm, and diagnostic features.
- Safety Indicators: Warning lights and alarms for engine coolant temperature, engine oil pressure, engine malfunction, hydraulic charge pressure, hydraulic filter restriction, and hydraulic oil temperature. Additional warnings for battery voltage, oil service, and indicator lights for engine preheat, parking brake, and seat bar reminder.
Engine and Cooling
- Engine Cooling and Maintenance: It features a Charge Air Cooler (CAC), dual-element air cooler, Organic Acid Technology (OAT) anti-freeze solution effective to -34º F, over-and-under radiator and oil cooler, a 3-stack after cooler/radiator/oil cooler configuration, glow plugs, integral engine oil cooler, and a fuel filter with water trap.
- Electrical System: Master electrical disconnect for safety and maintenance.
Drivetrain
- 2-Speed Hydrostatic Four-Wheel Drive: Provides adaptable control and traction.
- ASA #100HS Drive Chain: Ensures durability and reliability.
- SAHR Disc Parking Brake: Offers secure stopping and parking.
Hydraulics
- Auxiliary Hydraulics: Operating at 3,050 psi (210 bar) – 24.2 gpm (91.5 L/min) for powerful attachment use.
- 6 Micron Oil Filtration System: Keeps hydraulic operations clean.
- 3-Spool Loader Control Valve: Allows for precise control over loader functions.
- Auxiliary Hydraulic Disconnects: ISO flat-face, enabling easy attachment changes under pressure with case drain.
- Hydraulic Circuit Pedal Lock: Enhances operational safety.
- Auxiliary Function Lockout Override and Loader Lift Lockout Override: Provide additional safety features.
- Heavy-Duty Hydraulic Oil Cooler: Maintains optimal hydraulic temperatures.
- Loader Arm Float Position and Function Lockout System: Offer enhanced control.
Loader
- Manual Attachment Coupler: This is for easy attachment changes.
- Auxiliary Front Electric Control: Simplifies operation of attachments.
- Vertical Lift Geometry: Provides excellent reach and lift capacity.
- Loader Lift Arm Lock Support Pin: For maintenance and safety.
Tires
- 12 X 16.5 Heavy-Duty Tires: Designed for durability and superior traction across varied terrains.
Other Standard Features
- LED Lights: 2 front, 2 sides, 2 rear floods for optimal visibility.
- Pre-Wired for Rotating Beacon: Enhances safety.
- Lockable Service Access Hood and Single-Point Daily Service: For convenient maintenance.
- Rear Tail Lights, Remote Oil, and Fuel Filters: Facilitate easy maintenance.
- Block Heater: For reliable cold starts.
- Debris Ingression Sealing: Protects against foreign particles.
- Mounting Points for Add-On Counterweights: For enhanced stability.
Telematics
- CASE SiteWatch™ Telematics: Includes hardware and a 5-year data subscription for machine monitoring and management.
- SiteConnect Module: Provides remote diagnostics capability, enhancing maintenance and troubleshooting efficiency.
SV280B Optional Equipment
Operator Environment Options
- Enclosed Cab: Fully sealed and pressurized for maximum operator comfort, featuring a glass door with wiper and washer, removable sliding side windows, heater, and air conditioner.
- Entertainment and Security: This model features an AM/FM Bluetooth radio with 2 speakers, keyless start ignition, and an 8-inch color LCD display.
- Efficiency Features: Economy Mode for auto idle shutdown and Auto Engine Protection Shutdown.
- Control Options: Electro-hydraulic controls for drive/steering, loader functions with switchable patterns between H and ISO, and adjustable sensitivity of controls—mechanical hand controls in H pattern and hand and foot controls for diversified operation preferences.
- Comfort Enhancements: Deluxe cloth, air suspension seat with heater and lumbar support, and a demolition cab door with polycarbonate for increased safety. For personalized settings, ignition Timeout, Machine Settings, User Access Levels, and Operator Security Codes.
Hydraulics
- High-Flow Auxiliary Hydraulics: @ 3,050 psi (210 bar) – 37.6 gpm (142.5 L/min) for demanding attachments.
- Additional Hydraulic Options: Second auxiliary hydraulics, hydraulic one-way self-leveling, Ride Control with mechanical controls, Auto Ride Control with EH controls, and auxiliary flow control within the cab for precise operation.
Loader
- Attachment Efficiency: Hydraulic attachment coupler for quick and easy changes between attachments.
Drivetrain
- Specialized Movement: Creep Speed Mode, standard with EH Controls, for enhanced operational control at reduced speeds.
Other Customization Options
- Personalization: Language decals, various buckets, bolt-on bucket cutting edges for durability, and special paint options.
- Safety and Maintenance: A 3-inch (76.2 mm) retractable seat belt and bolt-on heavy-duty bucket teeth for operational safety. Add-on counterweights, road lights, a rotating beacon, and a four-corner LED strobe for enhanced visibility and safety. Single point and four-point lift devices, aspirator, and precleaner for comprehensive functionality.
SV280B Emissions
Tier 4 Final
HPCR, EXTERNAL CEGR
Why this solution: This Tier 4 Final solution requires no new actions or upkeep and delivers best-in-class performance so operators can focus entirely on the work at hand.
How it works: The high-pressure common rail (HPCR) system electronically controls fuel injection for greater fuel economy through more efficient fuel burn. With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air, and returned to the cylinder. The Diesel Oxidation Catalyst (DOC) manages the additional particulate matter. The DOC converts emissions into neutral gasses and automatically burns it off using heat from the exhaust.
What this means to you: This solution is a maintenance-free emissions solution, requiring no costly DPF (Diesel Particulate Filter) to replace and no new fluids to add. Powered by an FPT engine.
SV280B Warranty
Base & Extended Warranty Coverage
- 1-Year/Unlimited-Hour Full-Coverage Base Warranty
- 2-Year/2,000-Hour Full Coverage Base Limited Warranty
- 2-Year/2,000-Hour Extended Limited Engine Warranty
Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler, and water pump.
Purchased Protection
The Purchased Protection Plan extends the factory base, and extended coverage is available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available for up to three years / 5,000 hours on CASE Skid Steer Loader models.
Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
