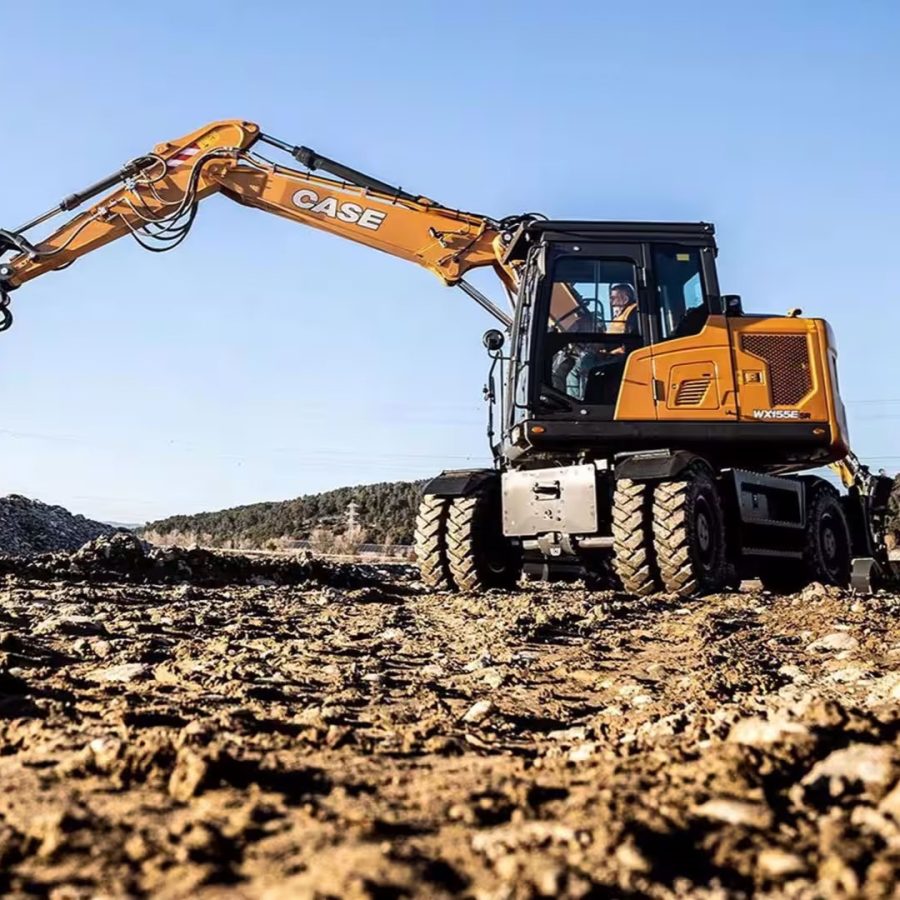

CASE WX155E SR Wheeled Excavator

The CASE WX155E SR is specifically designed for the demanding needs of road builders, municipalities, infrastructure utilities, and demolition crews. This wheeled excavator offers swift, smooth, and smart features, manufacturer productivity, and efficiency on any jobsite.

Performance

At the heart of the WX155E SR lies a powerful 170 hp engine, free from Exhaust Gas Recirculation (EGR) complexities, ensuring lower maintenance and operational costs. The engine boasts an automatic after-treatment system cleaning feature. It offers four user modes — including a customizable one — allowing operators to fine-tune performance, power, and fuel efficiency to suit specific job requirements.

Mobility

Designed for optimal mobility, the WX155E SR features four lower-frame configurations with various combinations of dozer blades and stabilizers, twin tires for reduced flat tire downtime, heavy-duty axles, and a hydrostatic transmission that allows up to 25 mph speeds. Standard cruise control and Ride Control smooth out travel, while a trailer hitch facilitates easy transport of attachments and materials.

Versatility

The standard two-piece boom enhances the excavator’s agility, enabling operation in tight spaces and close to the machine. An optional monoboom provides a traditional operating experience for tasks requiring greater lift capacity. Joystick steering ensures precise low-speed maneuverability. The high-flow hydraulics support one-way and two-way attachments, with an optional excavator’s circuit for delicate operations. A Leica 2D Precision package and various attachments extend the machine’s utility from asphalt cutters to pallet forks.

Comfort

Operator comfort is prioritized with features like expansive glass for superior visibility, an air-suspension heated seat with extensive adjustability, and an 8″ touchscreen display for easy access to machine controls and camera views. An optional smart ignition key with push-to-start enhances security, and the machine’s Auto-Braking feature boosts confidence and efficiency during repetitive start-stop tasks.

Serviceability: Maintenance is straightforward, with extended service intervals for engine oil, fuel filters, and hydraulic oil. A 3-year/3,000-hour full machine warranty and a 2,000-hour maintenance plan support this. Most consumables are easily accessible for ground-level servicing, simplifying upkeep and minimizing downtime.

Safety

Safety features include standard rear radar object detection and the CASE maximum view monitor system, which offers 360-degree visibility and intelligent object detection to ensure operational safety in all conditions. Hose burst check valves on critical hydraulic cylinders provide an added layer of protection, and optional cab reinforcements are available for heightened operator safety.

• Engine:
  • Cummins B4.5 engine, water-cooled, 4-cylinder inline, 4.5-liter
  • High-pressure standard rail system with electronic control
  • Waste gate turbocharger with air-cooled intercooler
  • DOC+DPF+SCR after-treatment system, EGR-free
  • Rated flywheel horsepower: 170 hp (ISO 9249) and 173 hp (ISO 14396) at 2200 RPM
  • Maximum torque: 575 ft·lb (ISO 14396) at 1500 RPM
  • Tier 4 Final / Stage V emissions certified
  • Compatible with ultra-low sulfur diesel and B7 biodiesel
  • ECO gauge for fuel efficiency monitoring
  • Detailed reports for fuel, work modes, and throttle position utilization
  • Variable power control via jog dial
  • Automatic and postponable after-treatment filter cleaning
  • Programmable electronically-controlled reversible fan
  • Programmable engine Auto Idle and Auto Shutdown functions
  • Automatic or manually controlled 9.2 gpm electric refuel pump
  • DEF tank overload warning
  • Air intake with cup-type pre-cleaner
  • Dual dry-type element air filter with warning restriction indicator
  • Air grid heater for starting aid
  • Replaceable, full-flow spin-on fuel and engine oil cartridges
  • Fuel pre-filter with water drain
  • Stacked cooling pack configuration with protective screen for radiators
• Upper Carriage:
  • Standard counterweight for stability
  • Safety handrails on front and right-hand side
  • Lockable cab door, fuel and DEF tanks, service doors, and toolbox for security
  • Rear work lamp and headlights with indicator lights for visibility
  • LED working lights package for enhanced illumination during operations
• Hydraulics:
  • Load sensing hydraulic system (LUDV) with advanced flow sharing for efficiency and responsiveness.
  • Three selectable work modes for optimal performance: Heavy Duty, Standard, and Economy.
  • Customizable work mode allows operators to set engine speed, idle speed, machine speed, and pump flow according to specific job requirements.
  • High-flow multi-function hydraulic circuit with pressure setting for one-way and two-way flow attachments.
  • Storage and management system for hydraulic settings of up to 10 one-way and 10 two-way attachments is directly on the monitor for easy access.
  • Three attachment work modes (push, detent, proportional) for versatility in operation.
  • Quick coupler hydraulic circuit for easy attachment changes.
  • Safety valves with overload warnings are equipped on the boom, arm, dozer blade, and front axle oscillation cylinders for enhanced safety.
  • Power boost mode activated via joystick for temporary increased hydraulic power.
  • Accumulator on boom cylinders for cushioning and a ride control system for smoother operation are also needed.
  • Boom float control for precise handling and reduced operator fatigue.
  • High-quality high-pressure hoses for durability and performance.
  • Main hydraulic pump: Variable displacement piston pump for efficient power delivery.
  • Maximum oil flow of 68.9 gpm (261 l/min) at 1800 RPM to support high-demand attachments.
  • Working circuit pressures optimized for performance: Boom/Arm/Bucket at 4,975 psi / 5,410 psi with auto power boost, Swing circuit at 3,655 psi, Travel circuit at 5,685 psi, and Pilot circuit at 566 psi.
• Attachments:
  • Standard 2-piece boom for versatility and reach in a variety of applications.
  • Digging arm options include an 8 ft (2.45 m) arm with reinforcements for durability.
  • Reinforced pins, bushings, and polymer shims for extended service life and reduced maintenance.
• Maintenance:
  • Full Machine Protection Factory Warranty for 3 years or 3000 hours, and Planned Maintenance for 3 years or 2000 hours for peace of mind.
  • Convenient single-point engine checks under the hood for daily maintenance.
  • Advanced self-diagnostics system for troubleshooting and maintenance efficiency.
  • Service intervals include 250-hour greasing for boom and arm pins and bushings, 800-hour engine oil and filter change, 1,000-hour fuel filter and pre-filter maintenance, 2,000-hour air filter replacement, and 5,000-hour hydraulic oil change for sustained performance and reliability.
• Cab Features:
  • A lockable door for enhanced security complements an enclosed pressurized cab with full climate control, including air conditioning, heat, and defrost.
  • ROPS/FOPS certification ensures the cab’s structural integrity and the operator’s safety in the event of rollovers or falling objects.
  • Universal ignition key with antivandalism features for added security.
• Visibility and Access:
  • One-piece sliding fold-in front window and a left-hand side window for improved visibility and ventilation.
  • Safety glass is on all windows; the front window features laminated glass for extra protection.
  • A clear roof view with a sunshade and rain deflector enhances visibility while protecting against the elements.
• Seating and Controls:
  • High-back premium heated air-suspension seat with tilting capability and extensive adjustments (fore/aft, weight, height, pan angle, depth, lumbar, backrest) for optimal comfort and ergonomics.
  • Adjustable armrests, headrests, seatbelts, and warning systems ensure comfort and safety.
  • Low-effort joystick controls with proportional control, FNR transmission switch, detent activation, and front axle oscillation lock for precise operation.
  • Selectable steering options, including a steering wheel or right-hand joystick and a slim 3-way adjustable steering column, cater to operator preferences and comfort.
• Technology and Information:
  • An 8-inch touchscreen monitor is a hub for instrument cluster navigation, air conditioning control, and engine throttle, and all managed via a right-hand console jog dial module.
  • Instrument cluster gauges provide critical information, including engine RPM, coolant temperature, hydraulic oil temperature, fuel level, and DEF level.
  • CASE MaxView 360-degree 4-camera system offers intelligent moving object detection and a warning system, ensuring safety around the machine.
    Radar object detection at the rear enhances safety with alerts for obstacles up to 32 feet 9 inches away.
• Additional Features:
  • A comprehensive audio system with a radio, USB MP3 player, aux-in port, and Bluetooth capability for entertainment and hands-free calling.
  • There is a 12-volt electric outlet, an adjustable-speed cruise control, an emergency FNR switch, and a 4-wheel auto-brake mode for attachment operation.
  • A ride control system for smoother travel, reduced attachment spillage, essential tools like an interior dome light, emergency exit and hammer, and exterior mirrors.
  • Storage solutions include a warm/cool storage compartment, cup holder, and additional compartments for personal items.
  • Cab filters and suspension mounts are designed to minimize noise and vibration, enhancing the overall operator experience.

Hydraulics:

• Secondary low 2-way flow electronic proportional controlled auxiliary hydraulics for precision attachment operation.
• Fine Swing control for smooth and precise swing movements, enhancing control during lifting and positioning tasks.
• Cold-climate hydraulic oil ensures optimal hydraulic performance in colder working environments.

Operator Environment:

• Optional rearview camera for enhanced rear visibility, improving safety and operational efficiency.
• Smart key with a push-to-start button offers a modern and secure way to start the excavator, enhancing convenience and theft protection.

Front End Equipment:

• Additional digging arm options for versatility in various applications:
• 6 ft 7 in (2 m) digging arm for compact working conditions.
• 8 ft 6 in (2.6 m) digging arm for extended reach and depth.
• Monoboom option is available for a traditional single-piece boom setup, providing enhanced lifting capacity and reach. (Note: Ride control is not compatible with the monoboom.)

Upper Structure:

• FOPS (Falling Object Protective Structure) top cab guard to protect the operator from falling debris.
• Wire mesh screen front guard for additional protection against flying debris and materials.
• OPG (Operator Protective Guard) Level 2 front guard for high-level front protection, especially in hazardous working conditions.

Undercarriage:

• Rear blade for backfilling and grading tasks, enhancing the excavator’s versatility.
• 2F/2R stabilizers to provide additional stability during lifting and digging operations.
• F/R blade option combines a front and rear blade for versatile ground leveling and backfilling.
• Solid tires are designed for durability and puncture resistance and are suitable for rugged terrain and urban construction sites.
