Compact Track Loader Caterpillar 259B3 – EQ0050748
$21,595.00
Request more information:

2011 Caterpillar Compact Track Loader 259B3 for Sale in Cape Girardeau, MO at lubyequipment.com. OROPs, Standard Flow, Manual Coupler, Multiple Buckets Available for Purchase!
| BRAND |
Caterpillar |
|---|---|
| MODEL |
259B3 |
| CONDITION |
Used |
| YEAR |
2011 |

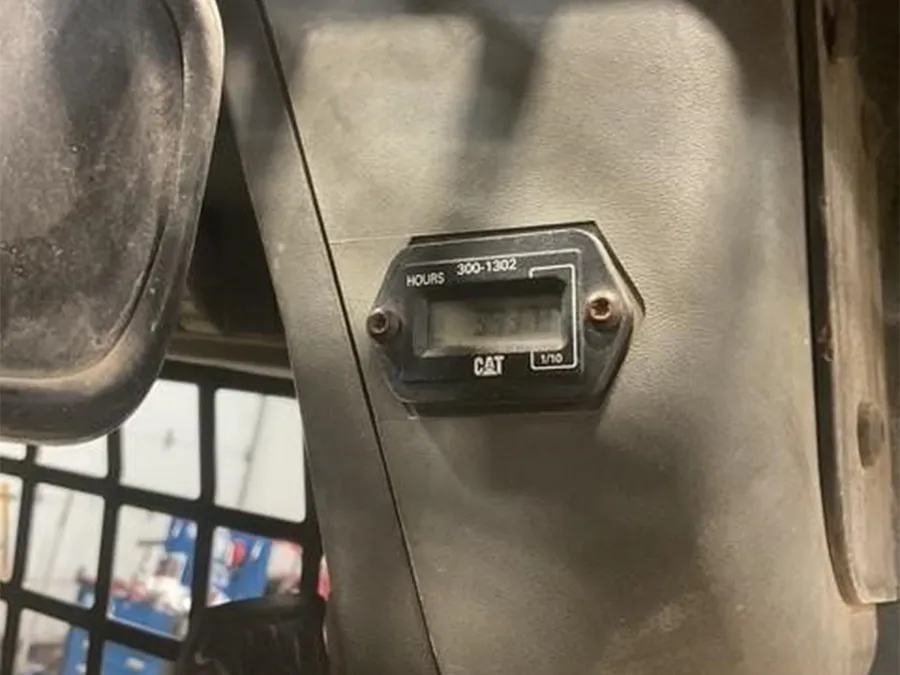

| HOURS |
3,938 |
| HORSEPOWER |
74 hp |
| ROPS |
OROPs |
| OPERATING WEIGHT |
8,934 lb |
| PRODUCT |
Compact Track Loader |
| LOCATION |
Cape Girardeau, MO |
Luby Equipment is the authorized CASE CE & Takeuchi dealer of O’Fallon, MO and the surrounding areas that has been in business for over 50 years. We have the knowledge and experience to give you peace of mind when purchasing used equipment. Always Transparent, Globally Trusted. Call us today
Compact Track Loader 2011 Caterpillar 259B3 For Sale
OROPs, Standard Flow, Manual Coupler, Multiple Buckets Available for Purchase!
The 2011 Compact Track Loader Caterpillar 259B3 delivers dependable performance for grading, material handling, land clearing, and general construction applications. Built with Caterpillar’s proven durability, the 259B3 offers strong lift capability, responsive controls, and excellent traction across varied terrain.
Its compact footprint allows operators to work efficiently in tighter job sites while maintaining the power needed for demanding tasks. The rugged undercarriage and balanced design help ensure stability and long-term reliability in tough working conditions.
If you’re looking for a compact track loader that combines performance, durability, and versatility, the 259B3 is ready to get to work.
Contact us for availability, pricing, and attachment options.
259B3 Dimensions
| Width Over Tracks | 5.76 ft in |
| Height To Top of Cab | 6.52 ft in |
| Ground Clearance | 9 in |
| Clearance at Max Lift and Dump | 7.36 ft in |
| Reach at Max Lift and Dump | 2.43 ft in |
| Length – Track on Ground | 59 in |
| Length – With Bucket on Ground | 135 in |
| Length – Without Bucket | 107 in |
| Bucket Pin Height – Maximum Lift | 10 ft |
| Clearance at Maximum Lift and Dump | 88 in |
| Departure Angle | 35 degrees |
| Height – Top of Cab | 6.5 ft in |
| Turn Radius from Center – Rear | 58 in |
| Turning Radius from Center – Inc Bucket | 85.6 in |
| Turning Radius from Center – Machine Rear | 57.92 in |
| Vehicle Width | 66 in |
| Length with Bucket | 11.26 ft in |
| Bucket Pin Height – Carry Position | 8 in |
| Maximum Dump Angle | 49.5 degrees |
| Maximum Overall Height | 152 in |
| Maximum Reach – With Arms Parallel | 53 in |
| Overall Length – Track | 79 in |
| Rack Back Angle – Maximum Height | 87 degrees |
| Reach at Maximum Lift/Dump | 29 in |
| Turn Radius from Center – Bucket | 86 in |
| Turn Radius from Center – Coupler | 55 in |
Undercarriage
| Length of Track on Ground | 4.91 ft in |
| Width of Track | 15.75 in |
| Ground Pressure | 5 psi |
| Ground Contact Area | 1848 in² |
259B3 Specs
Engine
| Engine Make | 2236 |
| Engine Model | C3.4 DIT |
| Gross Power | 74 hp |
| Net Power | 71 hp |
| Displacement | 201 cu in |
| Bore | 3.7 in |
| Stroke | 4.7 in |
| Gross Power – Sae J1995 | 74 hp |
| Engine Model | Cat C3.4T |
| Net Power – Sae 1349 | 71 hp |
Operational
| Operating Weight | 9226.4 lb |
| Cooling System Fluid Capacity | 2.7 gal |
| Fuel Capacity | 22.2 gal |
| Engine Oil Capacity | 2.4 gal |
| Hydraulic System Fluid Capacity | 14.6 gal |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Max Speed – Low Range | 5.9 mph |
| Max Speed – High Range | 8.5 mph |
Power Train
| Travel Speed Forward – 2-speed | 8.5 mph |
| Travel Speed Reverse – 2-speed | 8.5 mph |
| Travel Speed Forward | 5.9 mph |
| Travel Speed Reverse | 5.9 mph |
Loader
| Breakout Force | 4508.5 lb |
| Operating Load | 2949.8 lb |
| Tipping Angle | 5899.6 degrees |
Weights
| Operating Weight | 8934 lb |
Hydraulic
| Pump Flow | 22 gal/min |
| Relief Valve Pressure | 3335 psi |
Hydraulic System
| Hydraulic Flow (1) | Standard |
| Hydraulic Power | 42.8 hp |
| Loader Hydraulic Pressure | 3335 psi |
| Hydraulic Flow (2) | High Flow |
| Hydraulic Power – Calculated | 60.3 hp |
| Loader Hydraulic Flow (1) | 22 gal/min |
| Loader Hydraulic Flow (2) | 31 gal/min |
Operating Specifications
| Rated Operating Capacities – 50% Tipping Load | 2950 lb |
| Rated Operating Capacities – 35% Tipping Load | 2065 lb |
| Ground Contact Area | 1495 in² |
| Ground Pressure | 6 psi |
| Rated Operating Capacity with Optional Counterweight | 3000 lb |
| Tipping Load | 5900 lb |
| Breakout Force – Tilt Cylinder | 4508 lb |
Service Refill Capacities
| Cooling System | 2.6 gal |
| Fuel Tank | 22.2 gal |
| Hydraulic Tank | 9.2 gal |
| Engine Crankcase | 2.4 gal |
| Hydraulic System | 14.5 gal |
Cab
| Rops | SAE J1040 MAY94, ISO 3471:1994 |
| Fops | SAE J1043 SEPT87, ISO 3449:1992 Level I |
| Fops Level li | SAE J231 JAN81, ISO 3449:1992 Level II |
Additional information
| Condition | Used |
|---|---|
| Hours | 3938 |
| Location | Cape Girardeau, MO |
| Year | 2011 |
