Engine Rated Power (kW): 1,000 HP (746 kW) Operating Weight: Backhoe: 429,901 lb (195,000 kg) Shovel: 427,697 lb (194,000 kg) Max. Digging Reach:Backhoe: 50 ft 4 in (15.34m) Shovel: 44 ft 3 in (13.49 m) Max. Digging Depth: Backhoe: 26 ft 7 in (8.09 m) Shovel:14 ft 4 in (4.38 m)

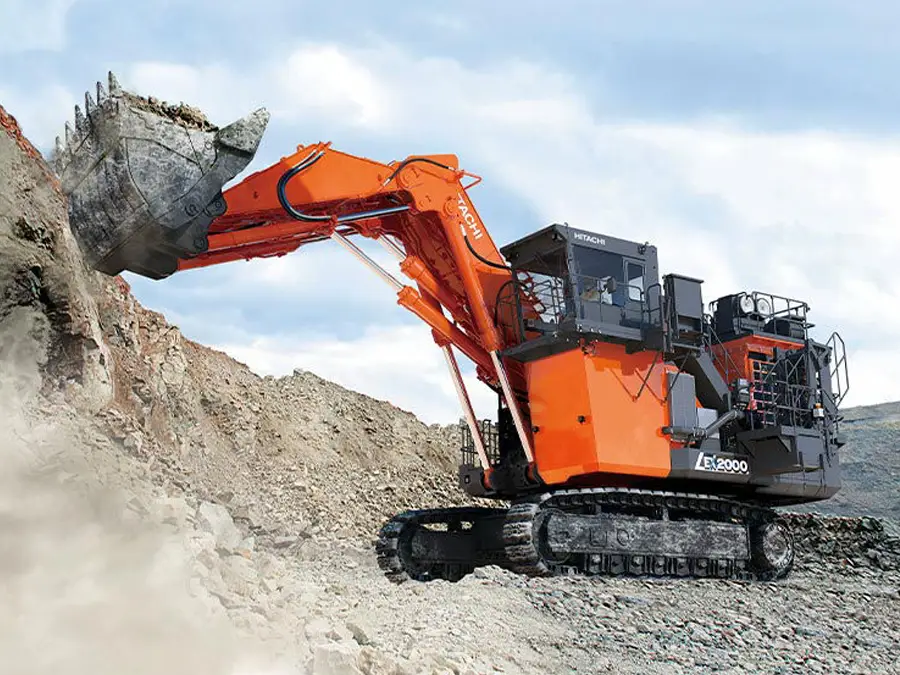

Hitachi mining excavator EX2000-7B T4F built for quarry and large-scale earthmoving with Tier 4 Final performance.
The Hitachi Mining Excavator EX2000-7B T4F is designed for high-production mining and quarry operations where durability, power, and efficiency are essential. Built to move massive volumes of material with consistent performance, the EX2000-7B delivers exceptional digging force, strong lifting capability, and reliable cycle times in demanding excavation environments.
Powered by a Tier 4 Final compliant diesel engine, the EX2000-7B T4F meets U.S. emissions standards while maintaining the high-output performance required for large-scale mining applications. Its advanced hydraulic system provides smooth, responsive control that supports efficient digging, loading, and material handling during continuous production cycles.
The excavator is built on a reinforced structural platform designed to withstand the extreme conditions found in quarry and mining environments. Heavy-duty boom and arm components, a durable undercarriage, and optimized hydraulic performance help maximize uptime and maintain productivity during long operating shifts.
Engineered for reliability and performance, the EX2000-7B T4F delivers the strength, stability, and efficiency expected from Hitachi mining excavators working in large-scale production environments.
EX2000-7B T4F Specifications
Specifications
Engine Rated Power (kW):
1,000 HP (746 kW)
Operating Weight:
Backhoe: 429,901 lb (195,000 kg) Shovel: 427,697 lb (194,000 kg)
Max. Digging Reach:
Backhoe: 50 ft 4 in (15.34m) Shovel: 44 ft 3 in (13.49 m)
Max. Digging Depth:
Backhoe: 26 ft 7 in (8.09 m) Shovel:14 ft 4 in (4.38 m)
Engine
Model
Cummins QST30-C Tier 4 Final
Rated power @1 800 min-¹ (rpm) ISO14396
746 kW (1 014 PS, 1 000 HP) at 1 800 min-¹ (rpm)
Piston displacement
30.5 L (8 gal.)
HYDRAULIC SYSTEM
Main pumps
6 variable-displacement, axial piston pumps for front attachment, travel and swing
Pressure setting
29.4 MPa (300 kgf/cm², 4,264 psi)
Max. oil flow
6 x 335 L/min. (6 x 88 gal./min.)
UPPERSTRUCTURE
Swing speed
4.7 min-¹ (rpm)
Fuel tank capacity
3,690 L (975 gal.)
Def tank capacity (T4F only)
241 L (64 gal.)
UNDERCARRIAGE
Travel Speeds
High: 0-2.8 km/h (0-1.7 mph) Low: 0-2.1 km/h (0-1.3 mph)
Weights and Ground Pressure
Loading Shovel Equipped with 12.0 m³ (15.7 cu. yd.) ISO 7546 Heaped 2:1 bottom dump bucket
Shoe type
Shoe width
Operating weight
Ground pressure
Double grousers
800 mm (32 in.)
194 000 kg (427,697 lb.)
187 kPa (1.90 kgf/cm³, 27.1 psi)
Backhoe Equipped with 12.0 m³ (15.7 cu. yd.) ISO 7451: 2007 bucket
Shoe width
Operating weight
Ground pressure
800 mm (32 in.)
195,000 kg (429,901 lb.)
188 kPa (1.91 kgf/cm³, 27.3 psi)
Cummins T4F configuration
Attachments
Loading Shovel: ISO 7546 Heaped 2 : 1:12.0 m3 (15.7 cu. yd.): Material density 1 800 kg/m3 (3,034 lb./cu. yd.) or less 13.5 m3 (17.7 cu.yd.): Material density 1 600 kg/m3 (2,697 lb./cu.yd.) or less
Backhoe: ISO 7451: 2007:12.0 m3 (15.7 cu. yd.): Material density 1 800 kg/m3 (3,034 lb./cu. yd.) or less 14.0 m3 (18.3 cu.yd.): Material density 1 600 kg/m3 (2,697 lb./cu.yd.) or less
