Engine Rated Power (kW):1,500 HP (1,119 kW) Operating Weight: Backhoe: 566,588 lb (257,000 kg) Shovel: 570,997 lb (259,000 kg) Max. Digging Reach: Backhoe: 54 ft 6 in (16.6 m) Shovel: 46 ft 2 in (14.06 m) Max. Digging Depth: Backhoe: 27 ft 1 in (8.25 m) Shovel: 12 ft 2 in (3.72 m)

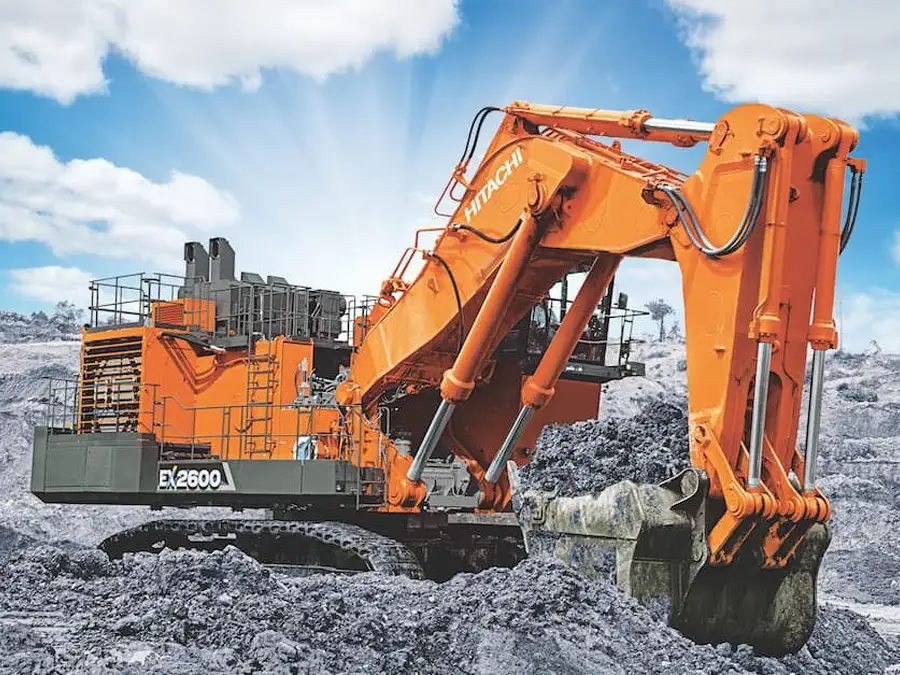

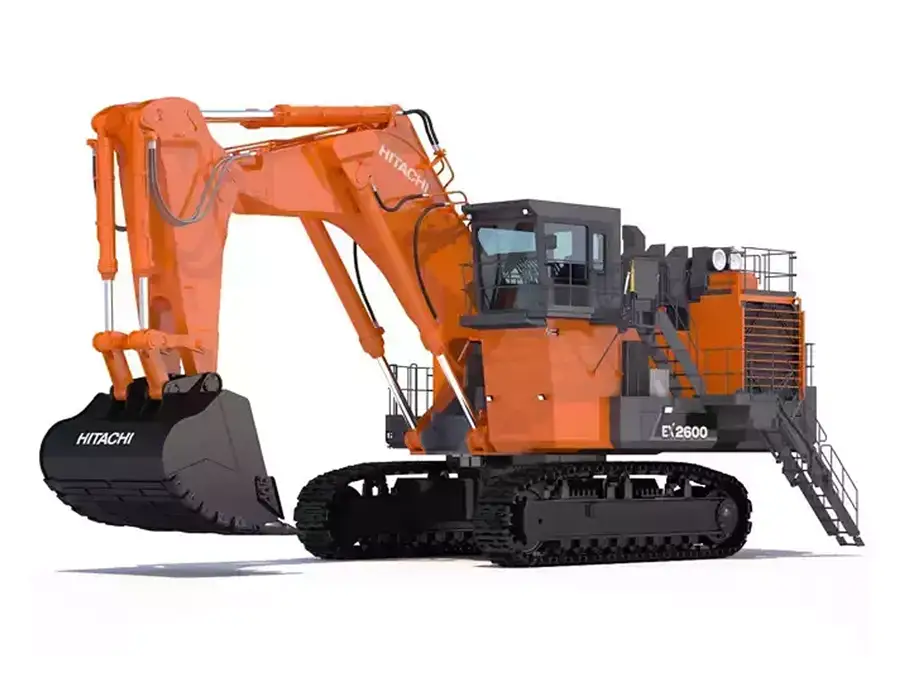

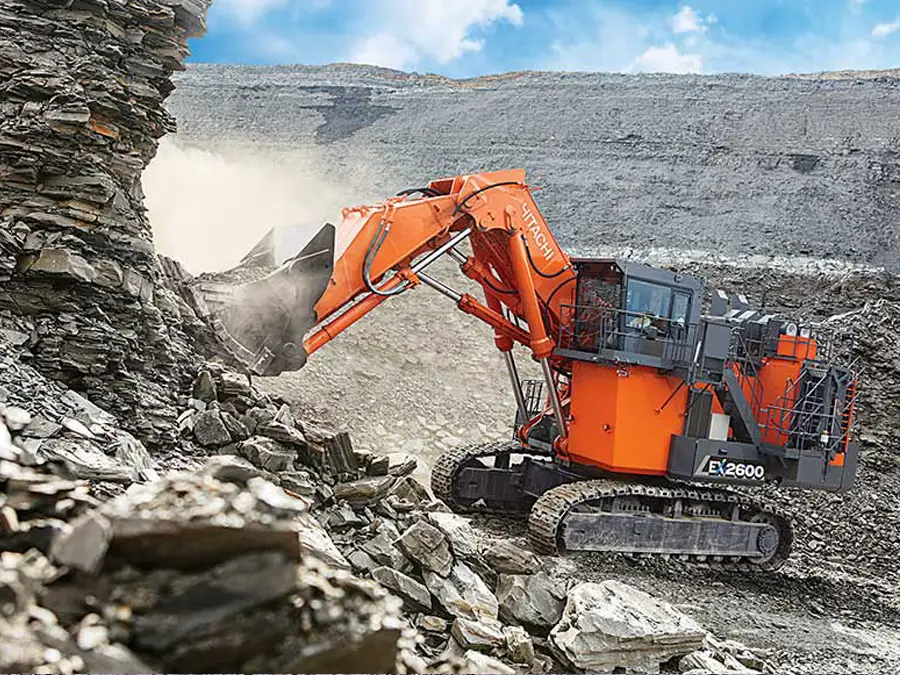

Hitachi mining excavator EX2600-7B T4F built for quarry and open-pit mining with powerful Tier 4 Final performance.
The Hitachi Mining Excavator EX2600-7B T4F is engineered for high-production mining and large-scale quarry operations where power, durability, and efficiency are critical. Designed to move significant volumes of material with consistent performance, the EX2600-7B delivers exceptional digging force, stable lifting capability, and dependable cycle times across demanding production environments.
Powered by a Tier 4 Final compliant diesel engine, the EX2600-7B T4F meets U.S. emissions standards while maintaining the high output required for open-pit mining and heavy excavation applications. Its advanced hydraulic system provides smooth, responsive control, allowing operators to maintain precise digging and truck loading performance during continuous production shifts.
The EX2600-7B is built on a reinforced structure designed to withstand the extreme conditions found in mining environments. A heavy-duty undercarriage, durable boom and arm components, and optimized hydraulic performance help maximize uptime and maintain productivity during long operating cycles.
Designed for reliability and long-term performance, the EX2600-7B T4F delivers the power, stability, and efficiency mining operations expect from Hitachi mining excavators.
EX2000-7B T4F Specifications
Specifications
Engine Rated Power (kW):
1,500 HP (1,119 kW)
Operating Weight:
Backhoe: 566,588 lb (257,000 kg) Shovel: 570,997 lb (259,000 kg)
Max. Digging Reach:
Backhoe: 54 ft 6 in (16.6 m) Shovel: 46 ft 2 in (14.06 m)
Max. Digging Depth:
Backhoe: 27 ft 1 in (8.25 m) Shovel: 12 ft 2 in (3.72 m)
Engine
Model
MTU 12V4000 C15 (T4F)
Rated power @1 800 min-¹ (rpm) ISO14396
1,150 kW (1 563 PS, 1 542 HP)
Piston displacement
57.2 L (3,490 cu.in.)
HYDRAULIC SYSTEM
Main pumps
6 variable-displacement, axial piston pumps for front attachment, travel and swing
Pressure setting
29.4 MPa (300 kgf/cm², 4,264 psi)
Max. oil flow
4 x 375 L/min (4 x 99.1 gal./min.), 2 x 425 L/min (2 x 112.3 gal./min.)
UPPERSTRUCTURE
Swing speed
4.1 min-¹ (rpm)
Fuel tank capacity
5,300 L (1,400 gal.)
Def tank capacity (T4F only)
356 L (94 gal.)
UNDERCARRIAGE
Travel Speeds
High : 0 to 2.3 km/h (0 to 1.4 mph) Low : 0 to 1.6 km/h (0 to 1.0 mph)
Maximum traction force
1,330 kN (135 600 kgf, 298,944 lbf.)
Weights and Ground Pressure
Loading Shovel Equipped with 15.0 m³ (19.6 cu. yd.) (ISO heaped) bottom dump bucket
Shoe width
Operating weight
Ground pressure
1,000 mm (40 in.)
259,000 kg (570,997 lb.)
189 kPa (1.92 kgf/cm², 27.4 psi)
Backhoe Equipped with 17.0 m³ (22.2 cu. yd.) (ISO heaped) bucket
Shoe width
Operating weight
Ground pressure
1,000 mm (40 in.)
257,000 kg (566,588 lb.)
187 kPa (1.91 kgf/cm², 27.1 psi)
Cummins T4F configuration
Attachments
Loading Shovel: 15.0 m³ (19.6 cu.yd.) : Material density 1 800 kg/m³ (3,034 lb./cu.yd.) or less 16.5 m³ (21.6 cu.yd.) : Material density 1 600 kg/m³ (2,697 lb./cu.yd.) or less
Backhoe Bucket Capacity (ISO heaped): 17.0 m³ (22.2 cu.yd.) : Material density 1 800 kg/m3 (3,034 lb./cu.yd.) or less 18.0 m³ (23.5 cu.yd.) : Material density 1 800 kg/m3 (3,034 lb./cu.yd.) or less 19.5 m³ (25.5 cu.yd.) : Material density 1 600 kg/m3 (2,697 lb./cu.yd.) or less
