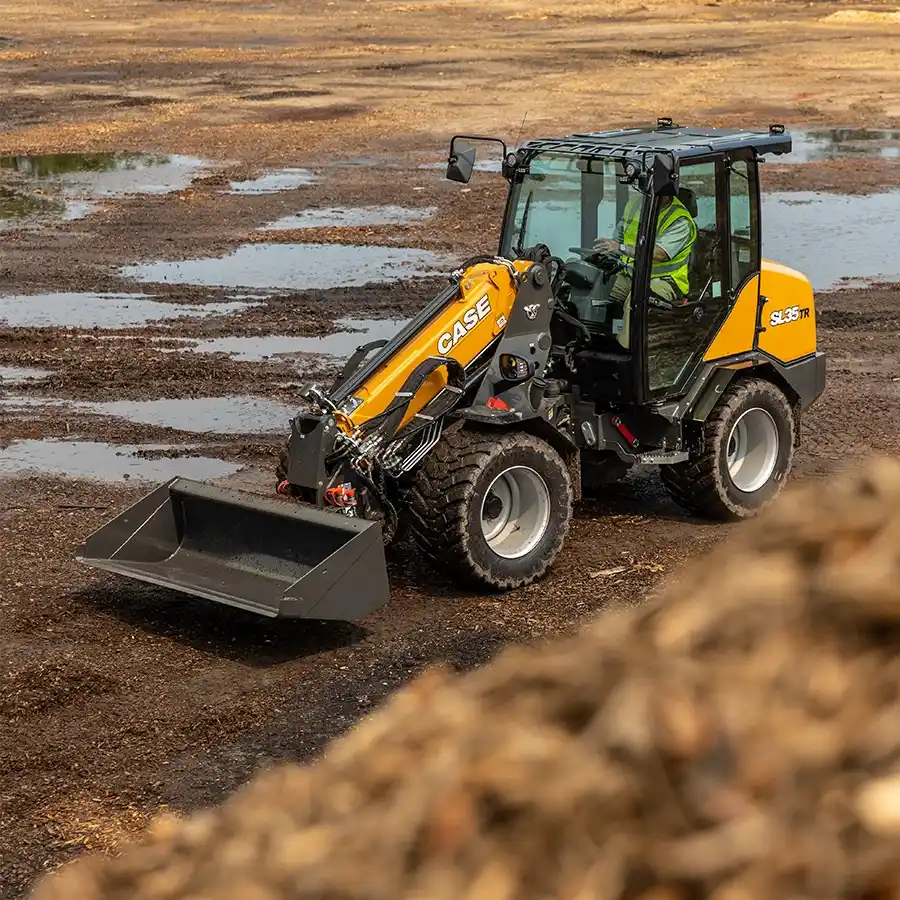

The CASE SL35 TR is the titan of the small articulated loader lineup. Designed to conquer many tasks, the SL35 TR combines formidable power with unparalleled versatility, setting a new standard for performance in compact equipment.
Available for sale at Luby Equipment, the CASE SL35 TR stands as the powerhouse of our small articulated loader lineup. Designed to tackle a broad spectrum of tasks, this machine boasts an impressive operating weight of 8,818 lbs and a lifting capacity of 5,500 lbs with the telescopic boom retracted. It also delivers a robust 65 hp, a notable figure for its size class. The SL35 TR excels in efficiency, reaching speeds up to 18.6 mph, ensuring quick operations on any site. Its telescopic boom extends nearly 170 inches, enabling higher stacking and offloading capabilities. Equipped with an optional 14-pin electric connector, this model offers the attachment versatility typically found in larger machines, enhancing its utility and performance in a variety of jobs.
SL35 TR Features
Key Features:

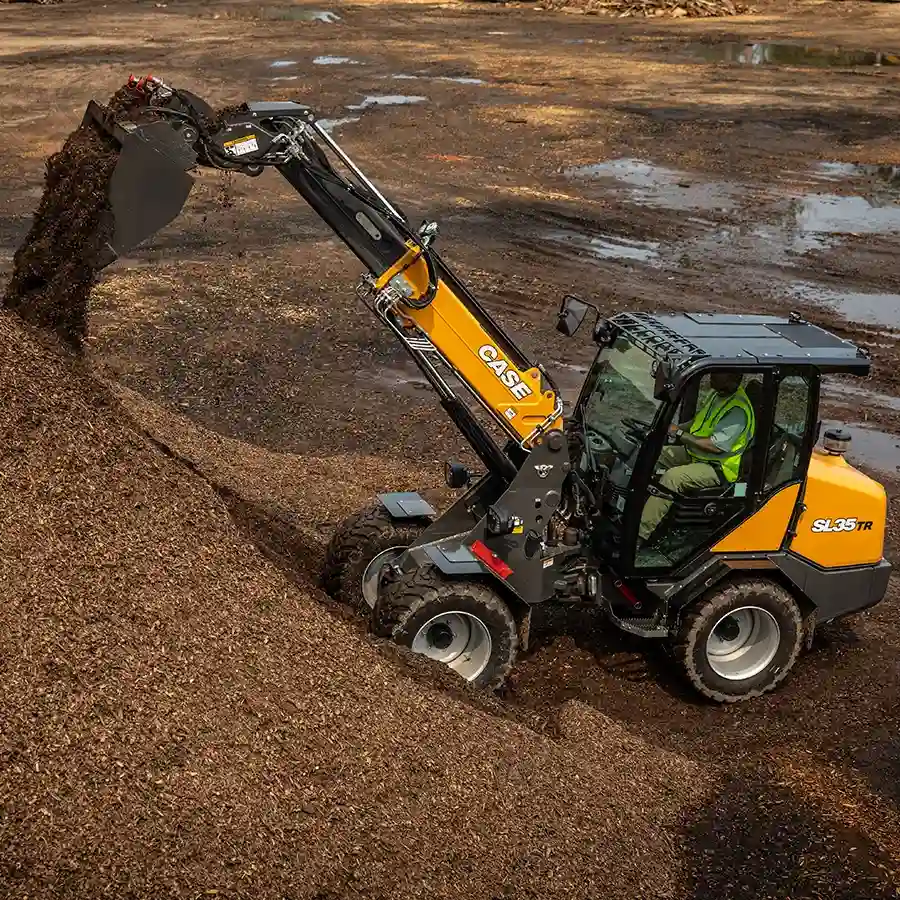

Telescoping Boom:
Extended reach up to nearly 170 inches, ideal for stacking and offloading at greater heights.
Enhances the loader’s versatility in handling materials in various work environments.
Exceptional Power and Capacity:
Delivers a robust 65 hp, ensuring high efficiency and productivity.
It offers a significant lifting capacity of 5,500 lbs. with the telescopic boom retracted, making it ready to take on heavy-duty tasks.
Operator Comfort and Efficiency:
Optional HVAC: Available cab with heating, ventilation, and air conditioning, providing comfort in all seasons.
Ergonomic Design: The operator’s station is thoughtfully designed for easy access and optimal control.
Advanced Mobility:
Impressive travel speeds up to 18.6 mph enable rapid movement across job sites.
Forward articulation design ensures stability, zero cab swing, and superior visibility.
Innovative Design:
Forward Articulation:
Positions the operator station on the rear section for a larger cab and easy entry/exit.
Allows operation close to walls and enhanced line-of-sight for precision work.
Attachment Versatility:
The optional 14-pin electric connector expands the SL35 TR’s compatibility with a wide range of attachments, mimicking the capabilities of much larger machines.
SL35 TR Standard Equipment
Operator Environment:
Safety and Comfort: Equipped with a ROPS/FOPS safety roof, safety entry bar, and key start system for enhanced safety and ease of use.
Ergonomic Seating: Features an air suspension vinyl seat with armrests and a retractable seat belt for maximum comfort during long operations.
Enhanced Visibility: Exterior mirrors are provided to improve visibility and safety on the job site.
Engine Capabilities:
Emission Control: Includes a Diesel Oxygen Catalyst and Diesel Particulate Filter to meet environmental standards.
Reliable Starting: Glow plug starting aid and engine block heater facilitate reliable operation in cold conditions.
Fuel Security: Comes with a locking fuel cap and a cyclone air filter for optimal engine performance and protection.
Drivetrain Dynamics:
All-Terrain Mobility: Features hydrostatic 4-wheel drive with FNR control on the joystick for smooth maneuverability across various terrains.
Enhanced Control: Electrical differential lock axles and drum brakes ensure stability and safe stopping.
Hydraulic System:
Precision Operation: A 3-spool main control valve and 1x dual-acting auxiliary hydraulics allow for versatile attachment operation.
Added Safety: Includes hose rupture protection on the lift cylinder and a hydraulic self-level function for secure and efficient lifting.
Cooling Efficiency: An oil cooler maintains optimal hydraulic fluid temperatures during intense operations.
Loader Functionality:
Extended Reach: The telescopic reach loader arm enhances the loader’s utility in material handling and stacking tasks.
Attachment Versatility: Features an SSL-compatible hydraulic-powered attachment coupler and additional counterweights for increased stability and lifting capacity.
Electrical System:
Reliable Power: A robust 12-volt system with a 77 AHR, 780 CCA battery, and 60 A alternator ensures all electrical components are powered effectively.
Illumination and Security: Includes one boom worklight, two front cab work lights for improved visibility, anti-theft protection with an access code, and a battery disconnect switch for electrical system security.
Additional Features:
Utility and Safety: Equipped with a recovery hook for towing, a backup alarm for reversing safety, and a horn for on-site communication.
SL35 TR Optional Equipment
Enhanced Operator Environment:
Enclosed Cab with HVAC: Opt for a fully enclosed cab complete with heating, ventilation, and air conditioning to ensure operator comfort in all weather conditions, from the cold to the sweltering heat.
Engine Customization:
Hand Throttle: For specialized tasks, you can gain precise control over engine speed, allowing for smoother operation and enhanced efficiency.
Drivetrain Improvements:
Pro Inching Creep Control: This feature provides finer control over the loader’s movement, allowing for precise positioning and easier operation in tight spaces or when handling delicate tasks.
Hydraulic System Upgrades:
Expanded Hydraulic Capabilities: Opt for 2x dual-acting auxiliary hydraulics with a broader range of attachments for increased versatility.
Auxiliary Hydraulic Hold Function: Maintain continuous hydraulic pressure for attachments that require a steady flow, improving performance and reliability.
Continuous Flow Auxiliary Hydraulics: Ideal for attachments that operate continuously, such as sweepers or snow blowers, enhancing the SL35 TR’s utility.
Hydraulic Boom Suspension (Ride Control): Improve load stability and operator comfort while traveling over rough terrain, reducing spillage and increasing efficiency.
Electrical Enhancements:
Additional Lighting: Equip your SL35 TR with two cab rear work lights for improved visibility in low-light conditions, ensuring safer operation.
14-pin Electrical Auxiliary Connection: Expand the range of compatible electrical attachments, increasing the loader’s versatility and capability.
Safety Lighting: Add a rotating beacon and strobe light to enhance visibility and safety on busy job sites, alerting personnel to the loader’s presence.
Convenience and Accessibility:
Multilingual Operator Manual: Available in English, Spanish, or French, this option ensures that operators can fully understand and utilize the loader’s features and safety protocols, regardless of their preferred language.
SL35 TR Specs
Engine Specification
Detail
Model
Kubota V2403 CR
Emissions Certification
Tier 4 Final/Stage V
Cylinders
4
Displacement
148.5 in³ (2.434 L)
Fuel
Diesel
Exhaust Aftertreatment
DOC + DPF
Engine Speeds RPM (Rated – Full Load)
2700
Horsepower @ 2700 RPM – SAE J1349
Gross: 65 hp (48.6 kW)
Peak Torque @ 1600 RPM
146.4 lb·ft (198.5 N·m)
SL35 TR Dimensions
Specification Category
Specification Detail
DIMENSIONS
Wheelbase (A)
77.6 in (1,972 mm)
Total Length (B)
160.1 in (4,067 mm)
Length with Bucket (C)
77.4 in (1,965 mm)
Seat Height (D)
50.0 in (1,270 mm)
Max. Height with Safety Roof (E)
89.6 in (2,275 mm)
Max. Height with Cabin (F)
89.6 in (2,275 mm)
Height Front Frame (G)
69.9 in (1,775 mm)
Max. Dumping Height (H)
134.3 in (3,410 mm)
Lifting Height (I)
169.8 in (4,312 mm)
Height with Bucket (J)
77.0 in (1,955 mm)
Rollback Angle on the Ground (K)
42°
Rollback Angle at Max. Lift Height (L)
55°
Max. Dumping Angle (M)
37°
Max. Loading Angle (N)
22°
Outer Size of Tires (O)
37.0 in (940 mm)
Maximum Radius External (P)
142.3 in (3,615 mm)
Turning Radius on Outer Edge (Q)
124.0 in (3,150 mm)
Inner Turning Radius (R)
65.9 in (1,675 mm)
Width on Standard Tires (S)
52.8 in (1,340 mm)
TIPPING LOAD PATHS
Path T
1,630 lb (740 kg)
Path U
1,770 lb (805 kg)
Path V
2,810 lb (1,275 kg)
Path W
3,750 lb (1,700 kg)
Path X
5,510 lb (2,500 kg)
Warranty
Base warranty coverage: 2-Year/1,000-Hour
Full Machine Limited Warranty
Electric power train warranty coverage: 3-year/3,000 Hour Limited Warranty (EV models only)
