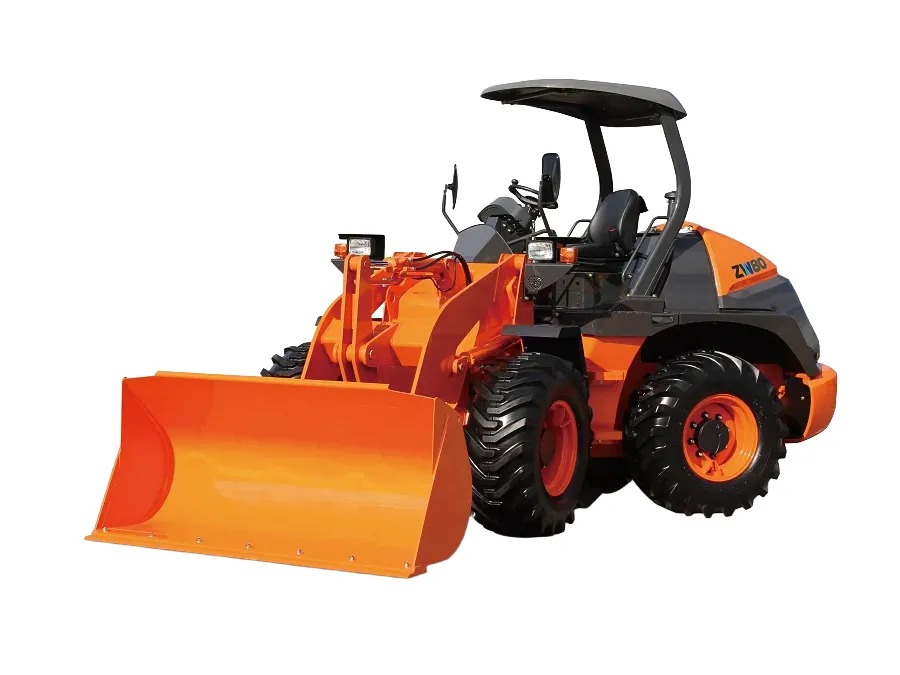

The Hitachi Compact Wheel Loader ZW80-5B delivers increased lifting performance and breakout force in a compact, maneuverable design. Built for construction, agriculture, landscaping, and municipal work, the ZW80-5B offers the capacity and stability needed for daily production tasks while maintaining a smaller footprint for confined job sites.

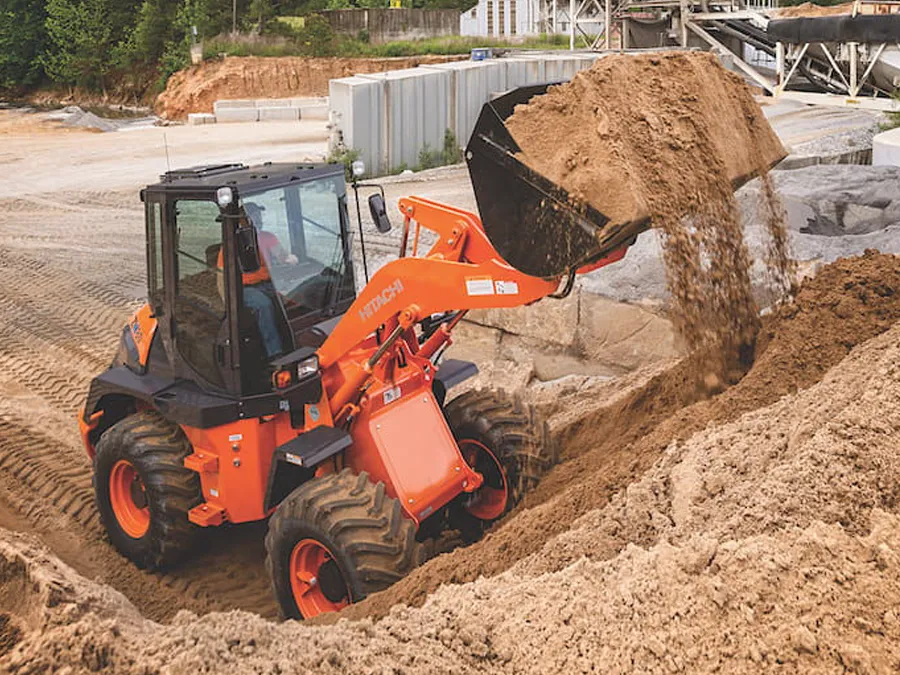

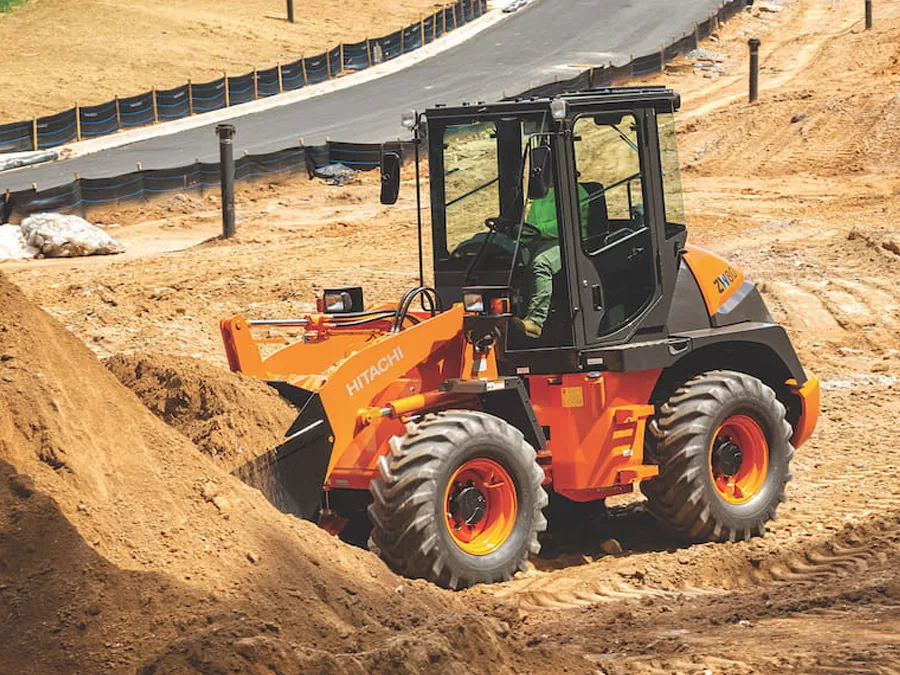

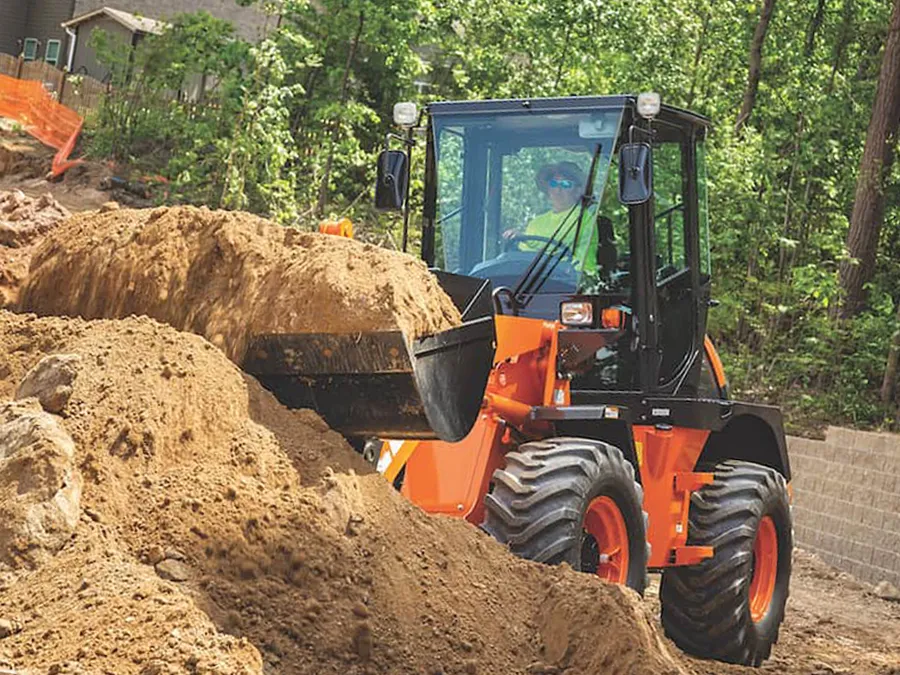

Its balanced chassis design supports dependable lifting and material handling performance, making it well suited for loading trucks, stockpiling materials, and general site support work. Smooth hydraulic response allows for precise bucket control and efficient operation throughout the workday.
Engineered for durability and long-term reliability, the ZW80-5B provides the strength and productivity expected from Hitachi Construction Equipment in compact loader applications.
ZX17U-5n Specifications
Specifications
Bucket capacity (m³) ISO Heaped:
1.2 yd³ (0.9 m³)
Net Rated Power:
63 HP (47 kW)
Operating Weight:
12,600 lb (5,715 kg)
Breakout force (kN):
8,270 lbf (36.8 kN)
Engine
Gross power (ISO 14396)
66 HP/2,200 RPM (49 kW/2,200 RPM)
Net power (ISO 9249)
63 HP/2,200 RPM (47 kW/2,200 RPM)
Make/Model
Deutz TD2.9L4 diesel engine
Type
4-cycle, water-cooled, direct injection with turbocharger and air-cooled intercooler
Fuel type
2 Diesel (Requires ultra-low sulfur fuel.)
Fuel injection pump
Electronically controlled, common rail type
Governor
All speed electrical type
Cooling module type
Forced circulation type
Number of cylinders
4
Bore and stroke
3.6″ x 4.3″ (92mm x 110mm)
Total displacement
179 in³ (2.93 liters)
Alternator
AC 14V–95A (13.3 kW)
Air cleaner
Dry type (double element) with restriction indicator
Starter motor
DC 12V–4.4 HP (3.2 kW)
Battery
12V–800 CCA (92 Ah), 2 units
Transmission
Transmission
Hydrostatic transmission (HST) automatically controls power and 2-speed
Normal Mode
Speeds: Forward
1st: 2nd:
7.5 MPH (12.0 km/hr) 21.1 MPH (34.0 km/hr)
Speeds: Reverse
1st: 2nd:
7.5 MPH (12.0 km/hr) 21.1 MPH (34.0 km/hr)
System Refill Capacity
Location
Gallons
Liters
Fuel tank (diesel fuel)
21.7
82
Engine lubricant (including oil pan)
2.4
9
Engine coolant
4
15
T/M
0.2
1
Axle (front/rear)
1.6/1.7
6.2/6.4
Hydraulic oil tank
19
72
Hydraulic and Steering System
Accordion Content
Steering type
Articulated frame steering
Steering mechanism
Double-acting piston type
Lift (boom) cylinder
Two (2) double-acting piston type: 3.2″ x 21.7″ (85mm x 552mm)
Tilt (bucket) cylinder
Two (2) double-acting piston type: 3.1″ x 18.0″ (80mm x 457mm)
Steering cylinder
Two (2) double-acting piston type: 1.8″ x 13.4″ (45mm x 340mm)
