ZX35U-5N
Request more information:
The Hitachi ZX35U-5N Compact Excavator is built for operators who demand durability, efficiency, and control in tight working environments.
See Brochure: ZX35U-5N Brochure
See Spec Sheet: ZX35U-5N Spec Sheet

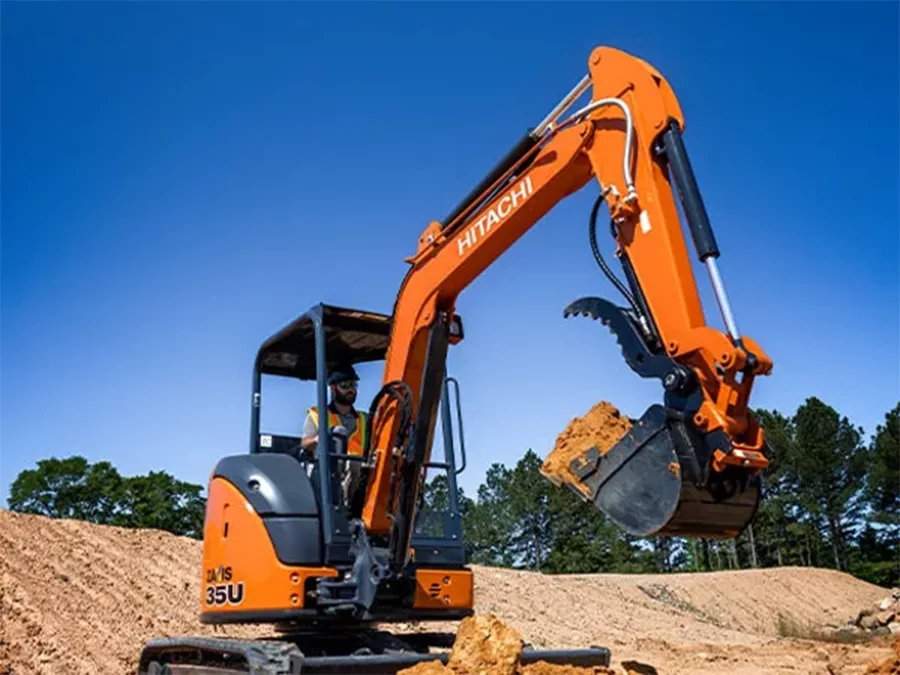

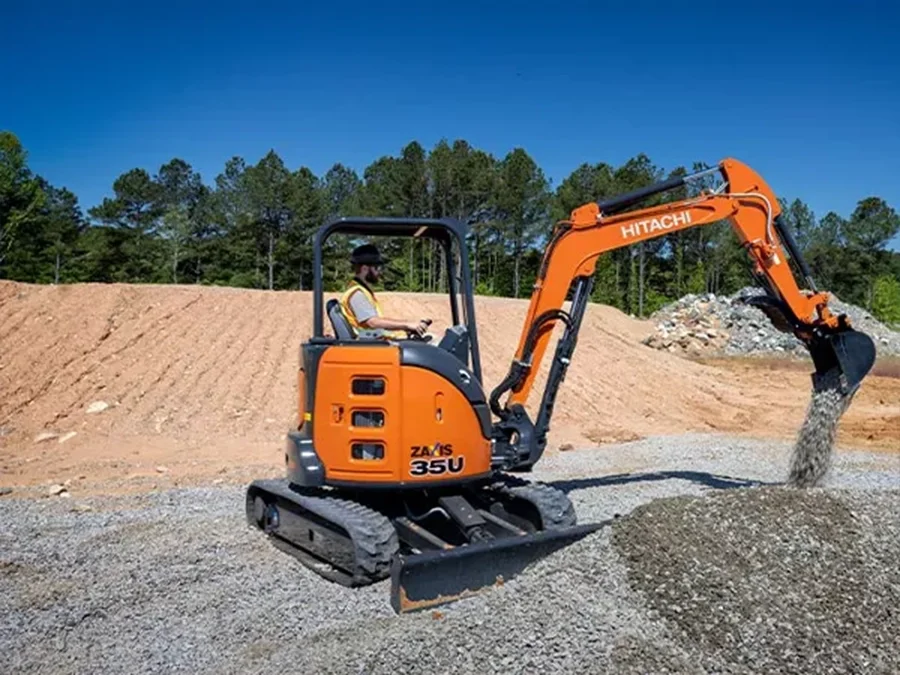

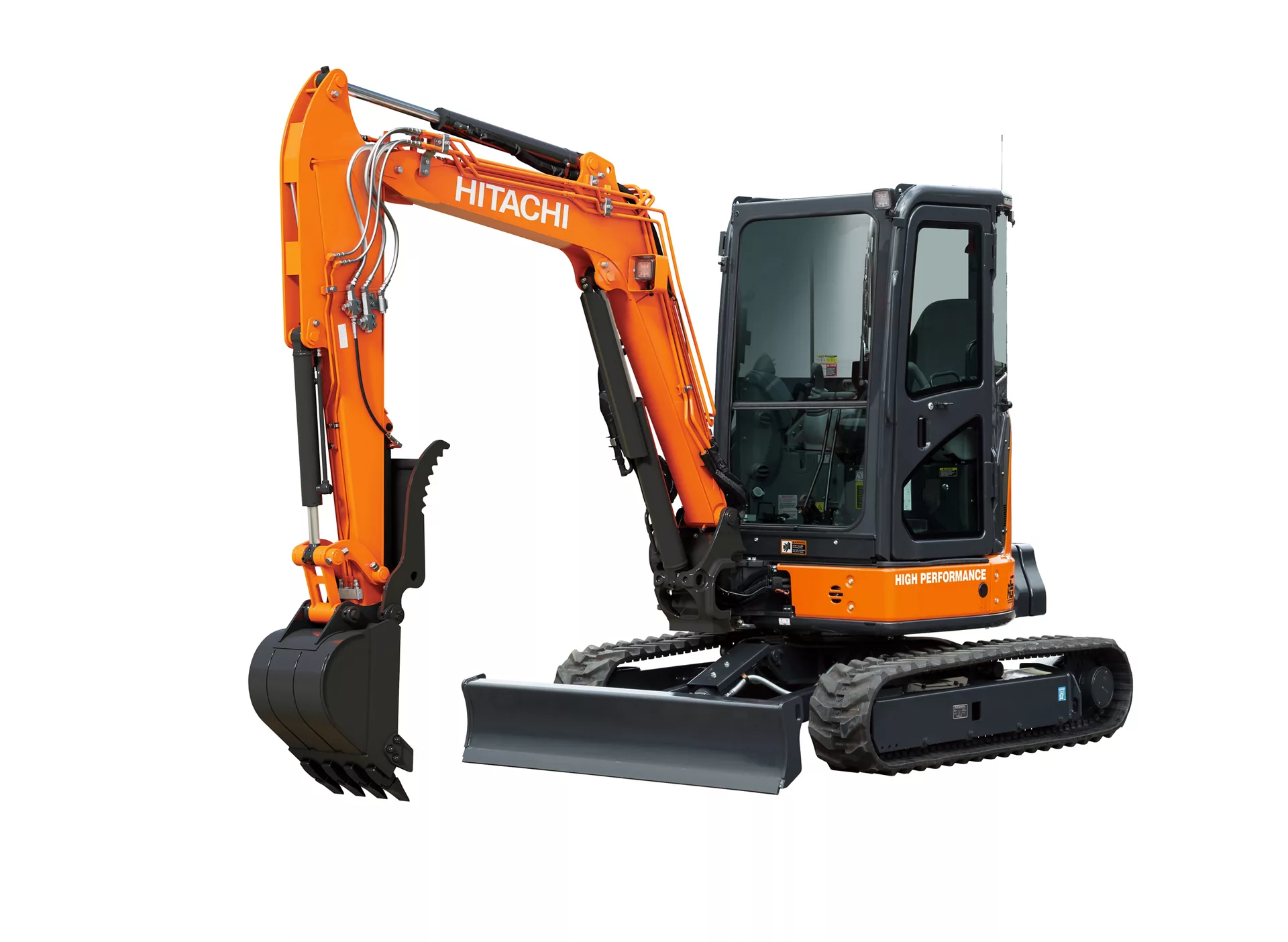

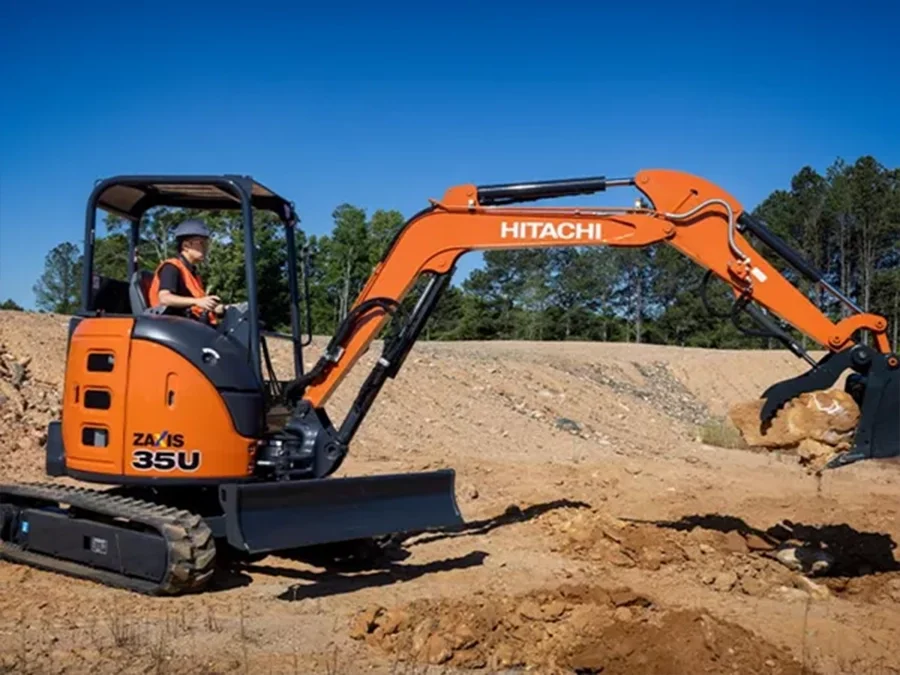

Hitachi Compact Excavator ZX35U-5N
The Hitachi ZX35U-5N Compact Excavator delivers big impact performance in a compact, easy-to-transport machine built for demanding work environments. Designed for both confined job sites and wide-open spaces, the ZX35U-5N provides the power, control, and durability contractors need for trenching, excavating, loading trucks, and general construction work.
Advanced hydraulics and responsive controls give operators precise handling across a wide range of applications, while the machine’s strong undercarriage and reinforced structure ensure long-term reliability. Easy maintenance access and a comfortable cab further enhance productivity, keeping downtime low and operators focused on the job.
Product Highlights
Advanced Hydraulic Performance
Precision hydraulic pilot controls deliver smooth, responsive operation for the boom, arm, swing, travel, and blade, with selectable work modes to match productivity and efficiency needs.
Versatile Attachment Control
An integrated auxiliary control system supports a wide range of hydraulic attachments, allowing operators to switch functions easily for breakers, thumbs, and specialty tools.
Robust Structure and Undercarriage
A debris-resistant track design helps reduce material buildup, with multiple track options available to suit varied terrain and job site conditions.
Simplified Service Access
Wide-opening service panels and an efficient cooling layout make routine inspections and maintenance faster and easier, helping reduce downtime.
Operator-Focused Cab Design
A well-laid-out cab improves visibility, control access, and overall comfort for extended workdays.
Reinforced Boom and Arm Components
Protective guards and high-durability bushings help extend service life while maintaining smooth operation in demanding applications.
ZX17U-5n Specifications
| Specifications | |
|---|---|
| Net Rated Power | 23.7 HP (17.4 kW) |
| Operating Weight | 7,584 – 9,017 lb (3,440 – 4,090 kg) |
| Max. Digging Reach at Ground Level | 16 ft 8 in – 17 ft 9 in (5.08 – 5.41 m) |
| Max. Digging Depth | 10 ft – 11 ft 4 in (3.06 – 3.46 m) |
| Working Ranges | |
|---|---|
| Arm Length | 4 ft 4 in – 5 ft 8 in (1.315 – 1.715 m) |
Engine
| Model | Yanmar 3TNV88F |
| Type | 4-cycle water-cooled, vertical in-line, direct injection |
| Aspiration | Natural |
| Aftertreatment | – |
| No. of cylinders | 3 |
| Rated power | |
| ISO 14396: Gross | 24.7 hp (18.2 kW) at 2,400 rpm |
| ISO 9249: Net | 23.7 hp (17.4 kW) at 2,400 rpm |
| Maximum Torque | 66.5 lbf-ft (90.2 Nm) at 1,300 min-1 |
| Piston displacement | 100.2 cu. in. (1.642 L) |
| Bore and Stroke | 3.5″ x 3.5″ (88 mm x 90 mm) |
| Batteries | 1 x 12 V/55 Ah |
Hydraulic System
| Hydraulic Pumps | |
|---|---|
| Main pumps | Open center, pilot operated, with 2 variable-displacement pumps, 1 single gear pump |
| Maximum oil flow | 2 x 10.1 gpm (2 x 38.4 L/m) |
| Gear pump | 6.0 gpm (22.8 L/min) |
| Auxiliary flow | 16.2 gpm (61.2 L/min) |
| Auxiliary pressure | 2,495 psi (17.2 Mpa) |
| Hydraulic Motors | |
|---|---|
| Travel | 2 variable displacement axial piston motors |
| Swing | 1 axial piston motor |
| Relief Valve Settings | |
|---|---|
| Implement circuit | 3,553.4 psi (24.5 MPa) |
| Swing circuit | 2,697.7 psi (18.6 MPa) |
| Travel circuit | 3,553.4 psi (24.5 MPa) |
| Pilot circuit | 594.7 psi (4.1 MPa) |
| Quantity | Bore | Rod Diameter | |
|---|---|---|---|
| Boom (Canopy) | 1 | 3.3″ (85) | 2.0″ (50) |
| Boom (Cab) | 1 | 3.3″ (85) | 2.0″ (50) |
| Arm | 1 | 3.0″ (75) | 1.8″ (45) |
| Bucket | 1 | 2.6″ (65) | 1.6″ (40) |
| Blade | 1 | 3.5″ (90) | 2.0″ (50) |
| Angle Blade | 1 | 2.4″ (60) | 1.4″ (35) |
| Boom swing | 1 | 3.3″ (85) | 1.8″ (45) |
Upperstructure
| Revolving Frame | D-Section frame for resistance to deformation |
|---|---|
| Swing Device | |
| Axial piston motor with planetary reduction gear is bathed in oil. Swing circle is single row. | Swing parking brake is spring-set/hydraulic released disc type |
| Swing speed | 9.0 rpm |
| Swing torque | 4,425.4 lbf-ft (6.0 kNm) |
| Max boom swing angle (Canopy), left/right | 72 degrees /62 degrees |
| Max boom swing angle (Cab), left/right | 62 degrees, 62 degrees |
Undercarriage
| Tracks |
|---|
| Tractor-type undercarriage. Welded track frame using selected materials. Side frame welded to track frame |
| Numbers of Rollers and Shoes on Each Side | |
|---|---|
| Upper rollers | 1 |
| Lower rollers | 4 |
| Steel track (optional) | 44 |
| Travel Device | |
|---|---|
| Each track driven by a 2-speed axial piston motor | Parking brake is spring-set/hydraulic-released disc type. Automatic transmission system: High-Low |
| Travel Speeds | High: 0 to 2.7 mph (0 to 4.8 km/h) Low: 0 to 1.7 mph (0 to 2.8 km/h)) |
| Maximum traction force | 6,069.9 lbf (27.0kN) |
| Gradeability | 58% (30 degree) continuous |
Environment
| Engine Emissions | EPA Final Tier 4 |
| Sound Level | |
| Sound level in canopy according to iso 6396: 2008 | *LpA 78.0 (right)/75.4 (left) dB(A) |
| Sound level in cab according to ISO 6396: 2008 | *LpA 70.4 (right)/70.2 (left) dB(A) |
| External sound level according to ISO 6395: 2008 | *LwA 95.5 (cab) dB(A) |
Service Refill Capacities
| Fuel tank | 11.1 (42.0) |
| Engine coolant | 1.3 (5.0) |
| Engine oil | 1.9 (7.2) |
| Travel device (each side) | 0.2 (0.6) |
| Hydraulic system | 11.4 (43.0) |
| Hydraulic oil tank | 8.5 (32.0) |
Weights and Ground Pressure
Operating Weight and Ground Pressure
| Shoe width Unit: in (mm) | Operating weight Unit: lb (kg) | Ground pressure Unit: psi (kPa) | |
| *Rubber track, Canopy 4′ 4″ (1,315 mm) arm | 12″ (300mm) | 7,584 lb (3,440 kg) | 4.6 psi (32.0 kPa) |
| *Rubber track, Cab 4′ 4″ (1,315 mm) arm | 12″ (300mm) | 7,959 lb (3,610 kg) | 4.8 psi (33.0 kPa) |
| **Rubber track, Canopy 5′ 8″ (1,715 mm) arm | 12″ (300 mm) | 8,157 lb (3,700 kg) | 4.9 psi (33.7 kPa) |
| **Rubber track, Cab 5′ 8″ (1,715 mm) arm | 12″ (300 mm) | 8,532 lb (3,870 kg) | 5.1 psi (35.2 kPa) |
| *Steel track, Canopy 4′ 4″ (1,315 mm) arm | 12″ (300 mm) | 8,069 lb (3,660 kg) | 4.8 psi (33.0 kPa) |
| *Steel track, Cab 4′ 4″ (1,315 mm) arm | 12″ (300 mm) | 8,444 lb (3,830 kg) | 4.9 psi (34.0 kPa) |
| **Steel track, Canopy 5′ 8″ (1,715 mm) arm | 12″ (300 mm) | 8,642 lb (3,920 kg) | 5.1 psi (35.0 kPa) |
| **Steel track, Cab 5′ 8″ (1,715 mm) arm | 12″ (300 mm) | 9,017 lb (4,090 kg) | 5.4 psi (37.0 kPa) |
Basic Machine Weight and Components Weight
| Components Weight | Unit: lb (kg) |
| Standard | 1,190 lb (540 kg) |
| Additional | 529 lb (240 kg) |
| Optional Angle Blade | 653 lb (296 kg) |
| Optional Angle Blade Weight Increase | 573 lb (260 kg) |
Bucket and ARM Digging Force
| Arm length | 4′ 4″ (1.315 m) | 5′ 8″ (1.715 m) |
| Arm crowd force (ISO 6015:2006) | 4,277 (19.0) | 3,792 (16.9) |
| Bucket digging force* (ISO 6015:2006) | 6,085 (27.1) | 6,085 (27.1) |
Additional information
| Condition | New |
|---|
