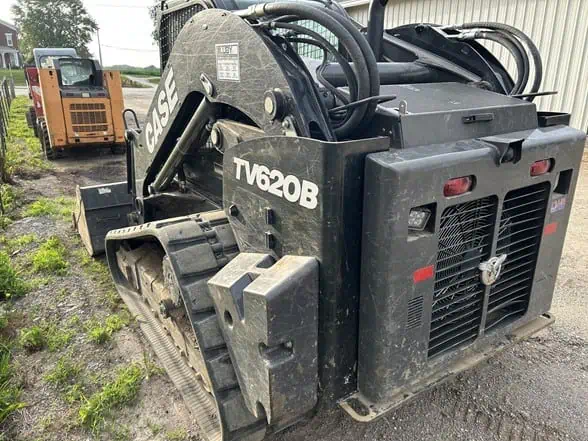

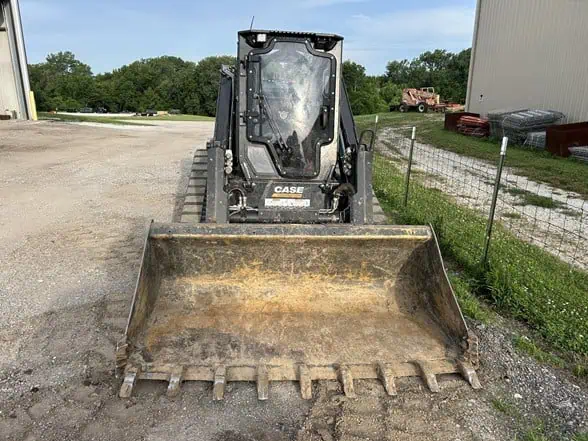

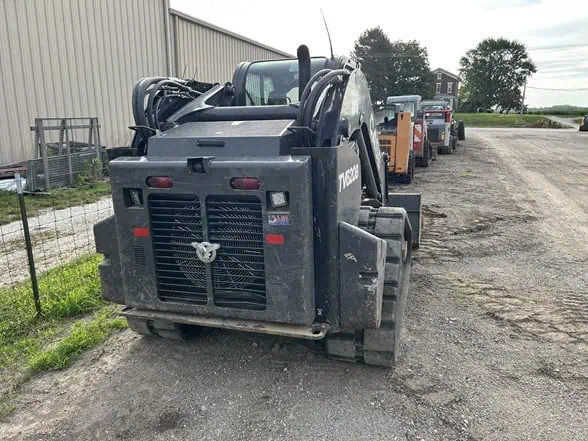

2023 CASE TV620B Compact Track Loader – EQ0050470

Unmatched Performance: The Titan of Compact Track Loaders
The TV620B sets a new benchmark as the most formidable compact track loader on the market. It’s engineered for operating heavy-duty attachments with ease, loading the highest of trucks without effort, and digging through harsh terrains with outstanding efficiency.

Key Performance Specifications:
• Rated Operating Capacity: 6,200 pounds
• Breakout Force: 12,907 pounds (bucket), 12,084 pounds (lift)
• Track Length on Ground: 74 inches

Feature-Rich Standard Equipment
The TV620B includes more standard features than ever, making it a complete solution for demanding jobs.

Standard Features Include:
• Electro-hydraulic controls with adjustable responsiveness
• High-flow hydraulics for powerful attachment operation
• Automatic Ride Control and one-way self-leveling
• Programmable hydraulically reversing fan
• LED lighting for excellent visibility
• SiteConnect Module for enhanced connectivity
• One year of CASE SiteWatch telematics

Precision and Control
The adjustable electrohydraulic controls allow operators to easily tailor machine responsiveness to the task.

Control Features:
• Adjustable responsiveness: low, moderate, or aggressive
• Independent settings for tilt, lift, drive speed, loader arm, and drive control
• Adjustments made through the in-cab LCD display

Power and Attachment Versatility
With strong high-flow hydraulics, the TV620B handles powerful and precise attachments.

Hydraulic Specifications:
• Standard: 41.6 gpm at 3,450 psi (83.7 hydraulic horsepower)
• Enhanced High-Flow: 41.6 gpm at 4,100 psi (99.5 hydraulic horsepower)

Perfect for Attachments Such As:
• Cold planers
• Mulchers
• CASE precision grader blade

Visibility and Safety
The TV620B delivers industry-leading visibility for safer, more precise operation.

Visibility Features:
• Split-screen display for simultaneous camera and machine info
• Cab-wide rearview mirror and CASE H-Link rear visibility design
• Large front and side windows

Fleet Management with SiteConnect
The SiteConnect Module provides powerful telematics and efficiency tools.

SiteConnect Advantages:
• Improved telematics performance
• Remote diagnostics and software updates
• Real-time machine data sharing with dealers and the CASE Uptime Center

Designed for Ease of Ownership
Maintenance and machine monitoring are simple and efficient.

Maintenance and Operational Highlights:
• Grouped service points for easy maintenance
• 8-inch LCD multi-function display for real-time machine data
• One year of CASE SiteWatch telematics included

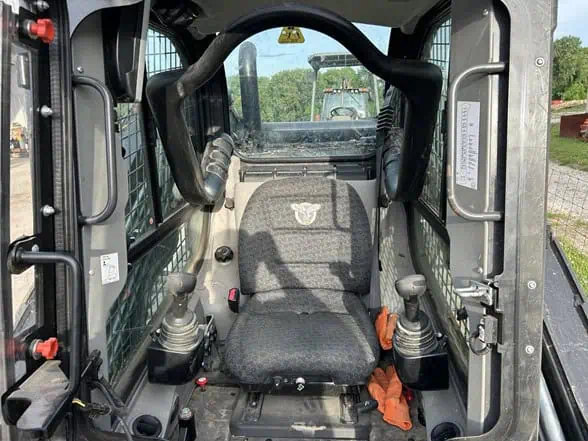

Operator Environment – Comfort & Functionality

• Enclosed cab – ROPS/FOPS Level 1 certified
• Fully sealed and pressurized cab
• FSP glass door with wiper and washer
• Sliding, removable side windows
• Integrated heater and air conditioner
• AM/FM Bluetooth radio with 2 speakers
• USB port and keyless start ignition
• 8-inch color LCD display
• Deluxe cloth air suspension seat with heat and lumbar support
• 2-inch retractable 3-point lap belt
• Ignition timeout and operator security codes
• Hand and foot throttles
• Backup alarm and horn
• Rearview mirror
• Full warning lights and system alerts

Engine – Power & Efficiency

• Charge Air Cooler (CAC)
• 3-stack aftercooler/radiator/oil cooler system
• Dual element air cleaner
• OAT anti-freeze
• Fuel filter with water trap
• Master electrical disconnect

Drivetrain – Precision & Control

• 2-speed hydrostatic drive
• SAHR disc parking brake
• Foot pedal operating modes

Hydraulics – Power at Your Fingertips

• Auxiliary hydraulics with high-flow capability
• 6-micron oil filtration
• Auxiliary hydraulic disconnects
• Hydraulic circuit pedal lock
• Auto Ride Control
• Creep speed mode

Loader – Strength & Versatility

• Hydraulic attachment coupler
• Vertical lift design
• Loader lift arm support pin
• Loader function lockout

Tracks – Durability & Stability

• Heavy-duty rubber tracks

Lighting & Service Features

• LED work lights
• Lockable service hood
• Single-point daily service access

Telematics – Smart Fleet Management

• CASE SiteWatch telematics
• Hardware included with 5-year data subscription
• SiteConnect Module with remote diagnostics capability

Operator Environment – Customized Comfort & Safety

• Open cab option – ROPS/FOPS Level 1 with side screens for better ventilation and visibility
• Mechanical suspension seat in durable vinyl for extended comfort
• Demolition cab door with polycarbonate for added protection

Hydraulics – Power & Precision

• Enhanced High-Flow (EHF) auxiliary hydraulics: 41.6 gpm @ 4,100 psi for high-performance attachments
• Optional second auxiliary hydraulic circuit for greater versatility

Customization & Utility Options

• Language decals for preferred language
• Various bucket options and bolt-on cutting edges
• Special paint options for brand consistency or personal preference
• Steel tracks: 14-inch or 18-inch for rugged terrains

Service & Safety Enhancements

• Road lights, four-corner LED strobe lights, and rotating beacon for increased visibility
• Precleaner for air intake protection
• Optional 3-inch retractable seat belt, fire extinguisher, tamper-resistant front door bracket
• Four-point lift hook or Class III 48-inch pallet forks for lifting and material handling
• 1150 CCA battery for high-altitude performance

Attachment & Weight Options

• Attachment hose kit and drawbar for easy connection
• Extra counterweights are not offered to maintain optimal machine balance and performance

• Model: FPT F5B FL413 D*C005
• Emissions Certification: Tier 4 Final
• Type: Diesel 4-stroke, Turbo, Direct Injection (D.I.)
• Cylinders: 4
• Bore/Stroke: 3.9 x 4.3 in (99 x 110 mm)
• Displacement: 207 in³ (3.4 L)
• Fuel Injection: Direct, high-pressure common rail (HPCR)
• Fuel Type: #2 Diesel
• Fuel Filter: Pre-filter: Beta (30) = 200/spin-on; Main filter: Beta (4) = 20/spin-on
• Air Intake: Turbocharged with waste gate and external cooled EGR
• Exhaust Aftertreatment: Selective Catalytic Reduction (SCR), Diesel Oxidation Catalyst (DOC)
• Cooling: Liquid
• Engine Speeds (RPM): High idle – 2500 ± 25; Rated full load – 2500; Low idle – 1150 ± 25
• Horsepower @ 2500 RPM (SAE J1349): Gross 114 hp (85 kW), Net 114 hp (85 kW)
• Peak Torque @ 1400 RPM: 339 lb·ft (460 N·m)
• Radiator – Core Type: Aluminum bar and plate
• Radiator – Core Size Area: 253 in² (0.163 m²)
• Radiator – Rows of Tubes x Columns: 19 rows
• Radiator – Cap Pressure: 16 ± 2 psi (1.10 ± 0.14 bar)
• Fan – Diameter: 22 in (560 mm)
• Fan – Ratio: 0.96:1 standard, 1.1:1 high-flow
• Water Pump – Style: Centrifugal
• Water Pump – Flow: 47.8 gpm (181 L/min)
• Engine Lubrication Pump: Rotor pump with deep sump pan, plate cooler, pressurized under-piston nozzles
• Pump Operating Angle Ratings: Side to side 45°, Bucket up 35°, Bucket down 45°

• Overall Operating Height: With heavy-duty bucket: 176.5 in (4.48 m); With XHD bucket: 189.6 in (4.82 m)
• Height to Bucket Hinge Pin: 140.2 in (3.56 m)
• Height to Top of ROPS: 84.6 in (2.15 m)
• Bottom of Level Bucket, Fully Raised: 133.3 in (3.39 m)
• Overall Length Without Attachment: With coupler: 129.5 in (3.29 m)
• Overall Length With Bucket: With heavy-duty bucket: 159.1 in (4.04 m); With XHD bucket: 172.7 in (4.39 m)
• Maximum Dump Angle: 46.1°
• Dump Height: With heavy-duty bucket: 109.0 in (2.77 m) @ 46.1°; With XHD bucket: 99.2 in (2.52 m) @ 46.1°
• Dump Reach at Maximum Height: With heavy-duty bucket: 39.0 in (0.99 m) @ 46.1°
• Maximum Attachment Rollback: Bucket on ground: 30°; Bucket at full height: 84°
• Track on Ground: Rubber: 74 in (1.88 m); Steel: 66 in (1.7 m)
• Ground Clearance (Bottom of belly pan): 12.6 in (0.32 m)
• Angle of Departure: 37.7°
• Clearance Circle Without Bucket: Rubber Track: 67.4 in (1.71 m)
• Clearance Circle With Bucket: With 84 in heavy-duty bucket on ground – Rubber Track: 102.3 in (2.60 m)
• Clearance Circle Rear: Rubber Track: 69.5 in (1.77 m)
• Track Gauge: 60.6 in (1.54 m)
• Over the Track Width: Rubber Track: 78.3 in (1.99 m); Steel Track with 14 in tracks: 74.6 in (1.894 m); Steel Track with 18 in tracks: 78.6 in (1.995 m)

Tier 4 Final
HPCR, External CEGR with DOC & SCR

Why this solution:
The Selective Catalytic Reduction (SCR) after-treatment system lowers exhaust temperatures without using extra fuel to burn off particulate matter. There’s no Diesel Particulate Filter (DPF) to replace, making it ideal for larger, high-productivity engines.

How it works:

• The High-Pressure Common Rail (HPCR) system electronically controls fuel injection for more efficient combustion and better fuel economy.
• Cooled Exhaust Gas Recirculation (CEGR) blends cooled exhaust gases with fresh air and returns them to the cylinder.
• The Diesel Oxidation Catalyst (DOC) oxidizes exhaust to generate heat and manage particulate matter.
• SCR combines Diesel Exhaust Fluid (DEF) with exhaust in the presence of a catalyst to convert NOx emissions into nitrogen and water. DEF is non-toxic and simple to use.

What this means to you:
SCR reduces fuel use and eliminates the need for a DPF, lowering total operating costs over the machine’s life. Maintenance is simple—just refill DEF as needed.

Powered by an FPT engine.
