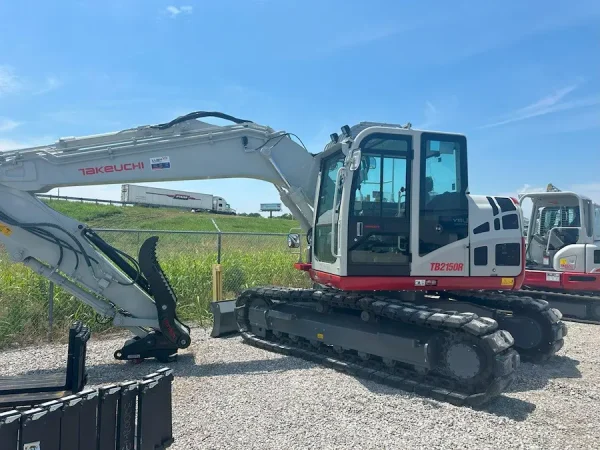

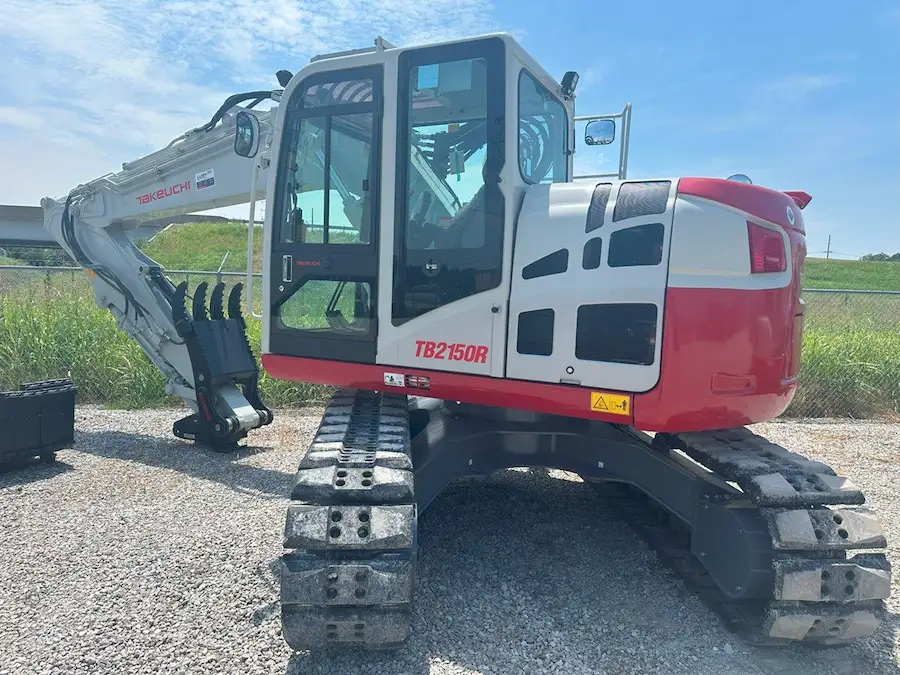

2024 Takeuchi Compact Excavator TB2150R-CL – EQ0032255

Engineered for Excellence:

At the heart of the TB2150R lies an engine equipped with an automatic fuel priming system and a dual-element air cleaner, ensuring reliability across working modes, including Standard, ECO, and High Altitude. An automatic cold start device and a variable speed hydraulic fan enhance performance, while the engine’s safe start system ensures operation safety.

Visibility and Control:

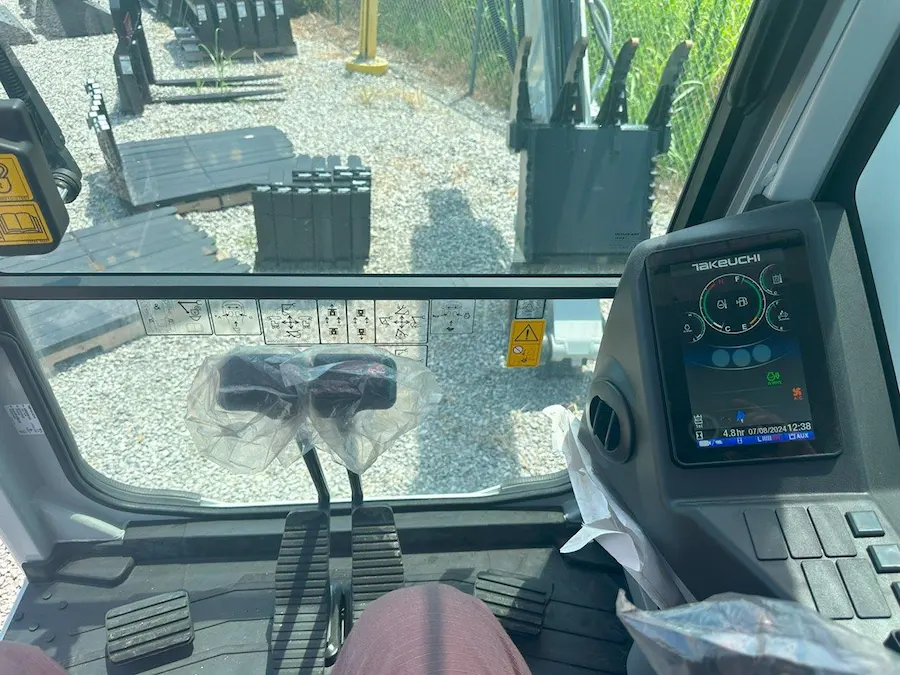

The operator’s station has been meticulously designed for maximum efficiency and comfort. It features a 7″ multifunction color display, a radio with Bluetooth capabilities, intuitive rocker switches, and hydraulic joystick controls. A high-back air suspension seat keeps operators comfortable and productive, highlighting Takeuchi’s commitment to ergonomic design.

Advanced Hydraulic System:

The TB2150R excels with its three auxiliary hydraulic circuits, including a high-flow primary circuit capable of delivering up to 59 GPM, making it an exceptional platform for attachments. Cushioned boom and arm cylinders and a pattern change valve (ISO or SAE) provide smooth operation and versatility.

Stability and Performance:

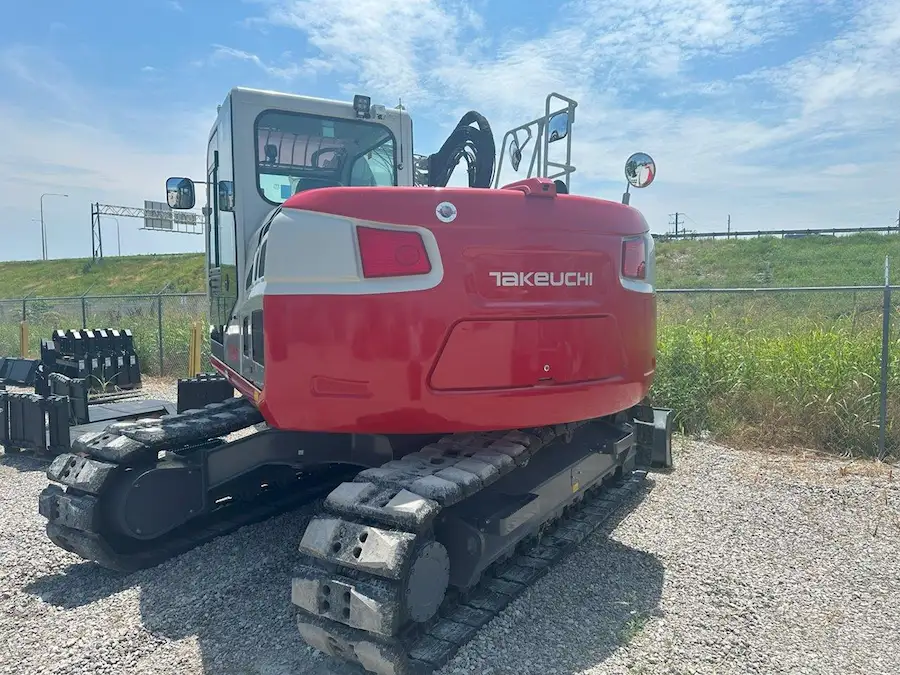

This compact excavator is designed with a fixed boom for superior stability, allowing operators to handle heavier loads confidently. The long arm with thumb mount extends its reach and digging depth, while the large wraparound counterweight and deluxe LED work light package ensure safety and visibility.

Undercarriage and Durability:

Featuring triple-flanged track rollers, 2-speed axial piston travel motors with counterbalance valves, and high torque final planetary drives, the TB2150R is built to last. The heavy-duty backfill blade with float adds to its versatility, ensuring it can tackle any challenge.

Operator’s Station:

The cab is fully equipped with air conditioning, heat, defrost, and additional amenities such as a windshield wiper and washer, a polycarbonate skylight with sunshade, and an AM/FM/Bluetooth radio. With ROPS/OPG Level 2 protection and adjustable armrests, operators can enjoy safety and comfort.

Takeuchi Fleet Management:

Take advantage of minimized downtime, remote diagnostics, utilization tracking, and proactive maintenance with Takeuchi Fleet Management. This system helps control costs and keeps your TB2150R running smoothly.

Versatile and Reliable:

With its 270° view camera system and comprehensive features, the Takeuchi TB2150R Compact Excavator is the ultimate tool for professionals seeking efficiency, reliability, and precision in their excavation work.

OPERATING PERFORMANCE
Operating Weight – Cab (Rubber)	34,215 lb
Operating Weight – Cab (Steel)	34,435 lb
Operating Weight – Cab (Segmented Rubber)	34,403 lb
Maximum Bucket Breakout Force	22,256 lb
Maximum Arm Digging Force	13,490 lb
Arm Length	8 ft 3.6 in
Slew Speed	11.0 rpm
Traction Force	35,230 lb
Ground Pressure – Cab (Rubber)	6.6 psi
Ground Pressure – Cab (Steel)	6.7 psi
Ground Pressure – Cab (Segmented Rubber)	6.7 psi
Max Travel Speed
Low Range	1.8 mph
High Range	3.4 mph
ENGINE
Make / Model	Deutz / TCD 3.6 L4
Displacement	221.0 cu in
Horsepower @ 2,000 rpm	114.0 hp
Maximum Torque @ 1,600 rpm	338 ft-lb
HYDRAULIC SYSTEM
Total Hydraulic Flow	78.9 gpm
Auxiliary Flow – Primary Circuit	59.2 gpm
Auxiliary Flow – Secondary Circuit	14.5 gpm
Hydraulic System Pressure	4,974 psi
FLUID CAPACITIES
Engine Lubrication	10.6 qt
Cooling System	28.5 qt
Fuel Tank Capacity	58.4 gal
DEF Fluid Tank Capacity	5.3 gal
Fuel Consumption (65% of Full Load)	3.88 gal / hr
Hydraulic Reservoir Capacity	26.9 gal

MACHINE DIMENSIONS
Maximum Reach	28 ft 10.1 in
Maximum Reach at Ground Level	28 ft 5.2 in
Maximum Digging Depth	19 ft 9.4 in
Maximum Dumping Height	23 ft 6.4 in
Transport Length	25 ft 6.5 in
Transport Height	9 ft 8.5 in
Overall Width (Rubber)	8 ft 2.0 in
