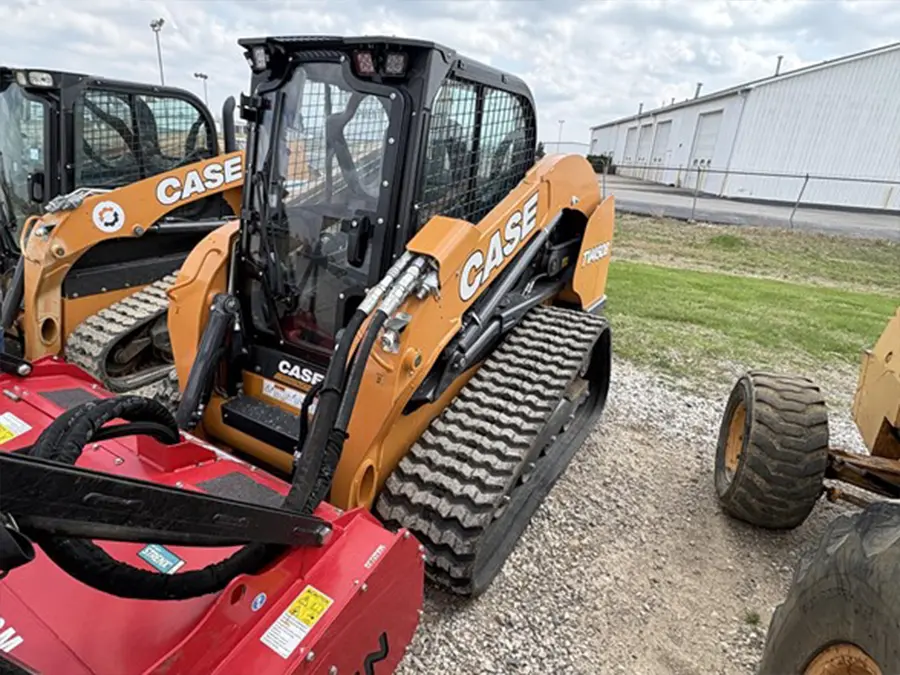

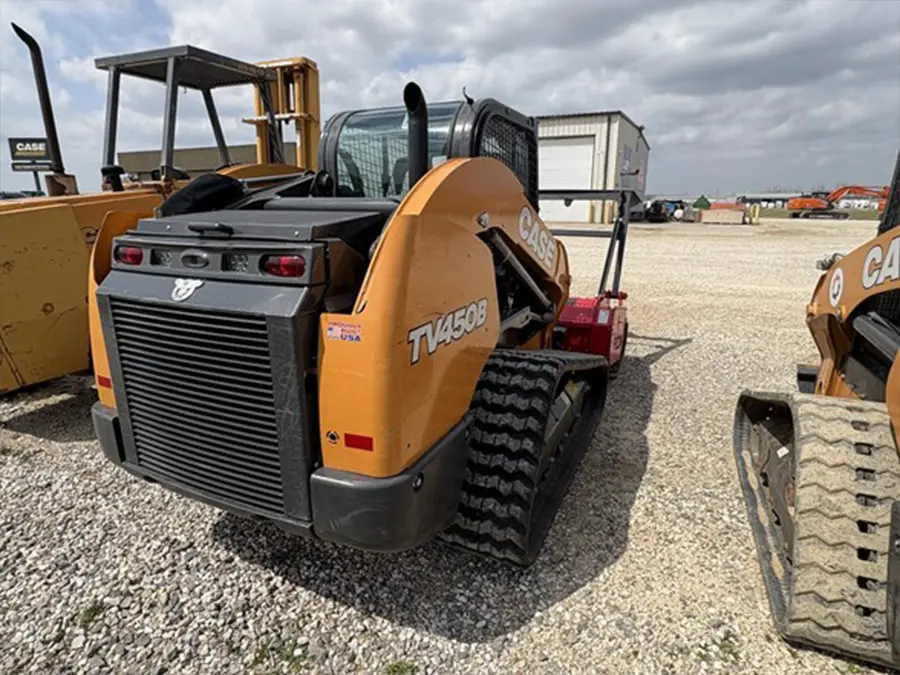

2024 TV450B CASE Compact Track Loader – EQ0050937
Request more information:

CASE TV450B Compact Track Loader for Sale at Luby Equipment. Cab, HVAC, 2 Speed EH Controls, High Flow Auxiliary Hydraulics, Hydraulic Quick Coupler, Ride Control, Premium LCD Display, Backup Camera, Heated Air Ride Seat, Buckets Available for Purchase.
| BRAND |
CASE |
|---|---|
| MODEL |
TV450B |
| CONDITION |
Used |
| YEAR |
2024 |
| HOURS |
200 |
| HORSEPOWER |
90 HP |
| ROPS |
Enclosed |
| OPERATING WEIGHT |
10,610 lbs |
| PRODUCT |
Track Loader |
| LOCATION |
Cape Girardeau, MO |
Luby Equipment is the authorized CASE CE & Takeuchi dealer of St. Louis, MO and the surrounding areas that has been in business for 50 years. We have the knowledge and experience to give you peace of mind when purchasing new and used equipment. Always Transparent, Globally Trusted. Call us today!
BROCHURE: CASE B-Series Track Loaders
SPEC SHEET: CASE TB450B
2024 TV450B CASE Compact Track Loader For Sale
Cab, HVAC, 2 Speed EH Controls, High Flow Auxiliary Hydraulics, Hydraulic Quick Coupler, Ride Control, Premium LCD Display, Backup Camera, Heated Air Ride Seat, Buckets Available for Purchase.
The CASE TV450B compact track loader delivers powerful performance and versatility for demanding construction, grading, and attachment-driven applications. Built for productivity, the TV450B combines strong lifting capability with advanced hydraulic performance, making it well suited for material handling, land clearing, and site preparation work.

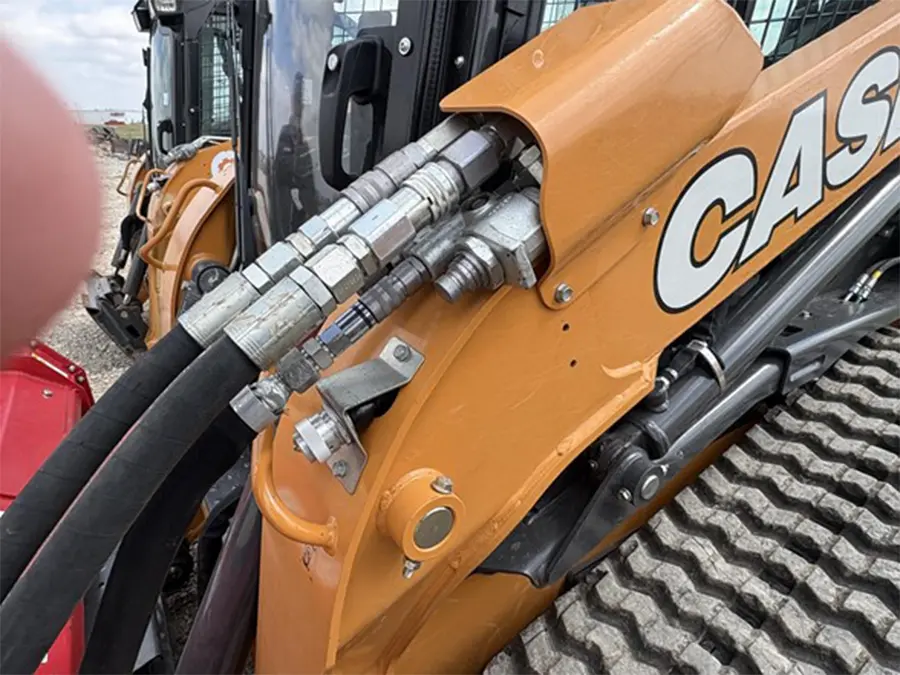

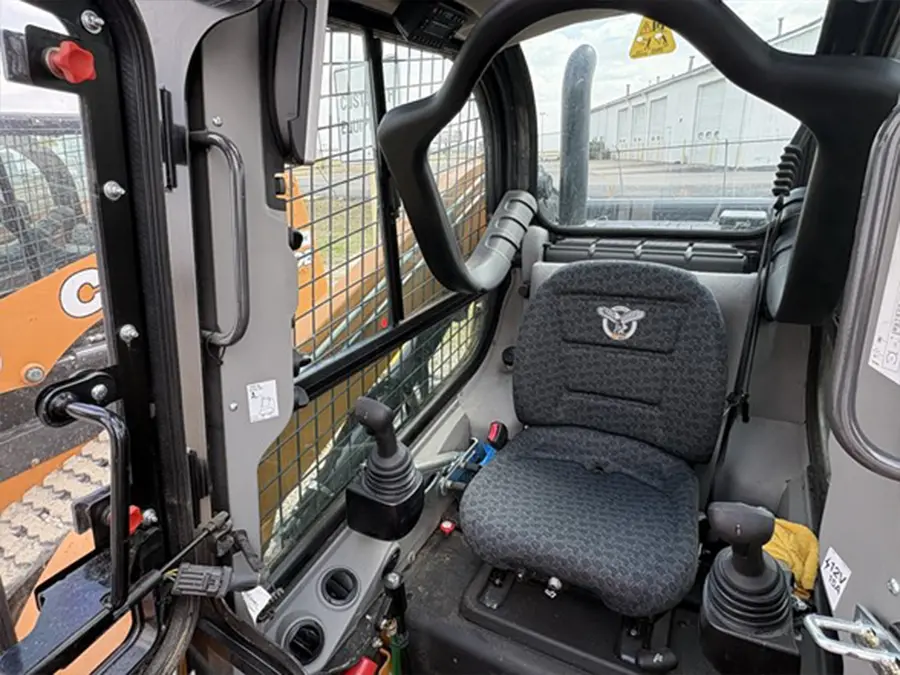

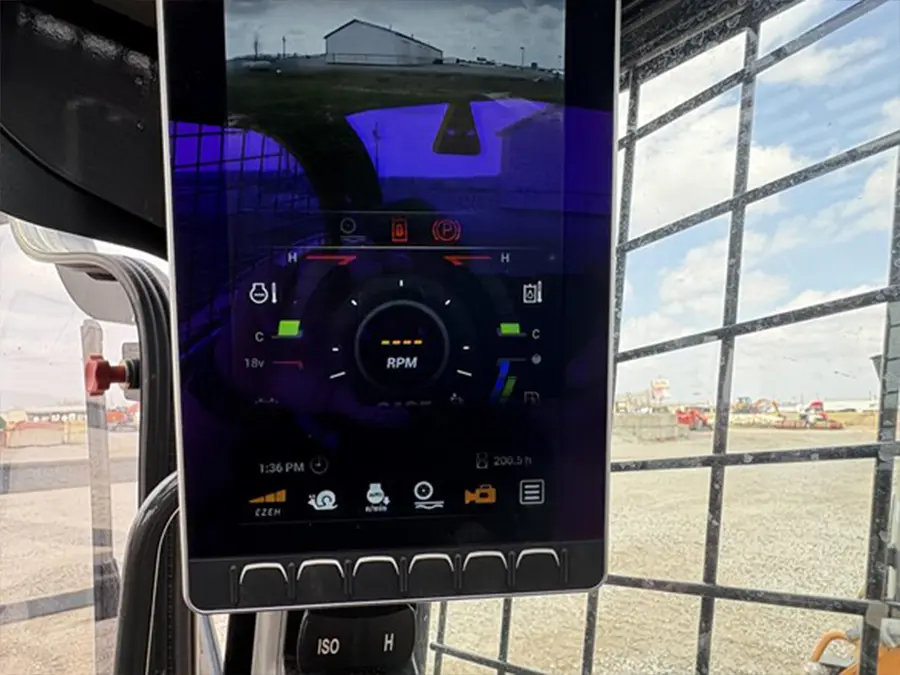

This machine is equipped with a fully enclosed cab with HVAC and 2 speed EH controls for smooth, precise operation. High flow auxiliary hydraulics allow operators to run demanding attachments, while the hydraulic quick coupler makes attachment changes fast and efficient. Ride control improves material retention and travel comfort, and the premium LCD display provides clear machine information at a glance.
Additional features like a backup camera and heated air ride seat enhance visibility and operator comfort for long workdays. Buckets are available for purchase, allowing this unit to be configured for a variety of jobsite needs.
If you need a dependable compact track loader with strong hydraulic performance and premium operator features, this CASE TV450B is ready to go to work.
Contact us for pricing, availability, and attachment options.
Operating Specifications
| US | Metric | |
|---|---|---|
| Horsepower | 90.0 HP | 67.1 kW |
| Lifting Capacity (35% Tipping) | 3150 lbs | 1428.8 kg |
| Lifting Capacity (50% Tipping) | 4500 lbs | 2041.2 kg |
| Operating Weight | 10600 lbs | 4808.1 kg |
| Tipping Load | 9000 lbs | 4082.3 kg |
| Lift Breakout Force | 77000 lbs | 3492.7 kg |
| Tilt Breakout Force | 9200 lbs | 4173.0 kg |
| Max Travel Speed | 5.5 mph | 8.9 km |
| Optional High Speed | 8.0 mph | 12.9 km |
| Ground Pressure | 4.6 psi | 31.7 kPa |
Cycle Time
| Raise Lift Arms | 5.1 sec |
| Lower Lift Arms | 3.2 sec |
| Bucket Rollback | 2.0 sec |
| Bucket Dump | 2.7 sec |
Hydraulic System
| US | Metric | |
|---|---|---|
| Pump Flow | 24.2 GPM | 91.5 LPM |
| Relief Pressure | 3046 psi | 210.0 Bar |
| Optional Flow | 39.5 GPM | 149.5 LPM |
| Hydraulic Capacity | 11.9 gal | 96.5 L |

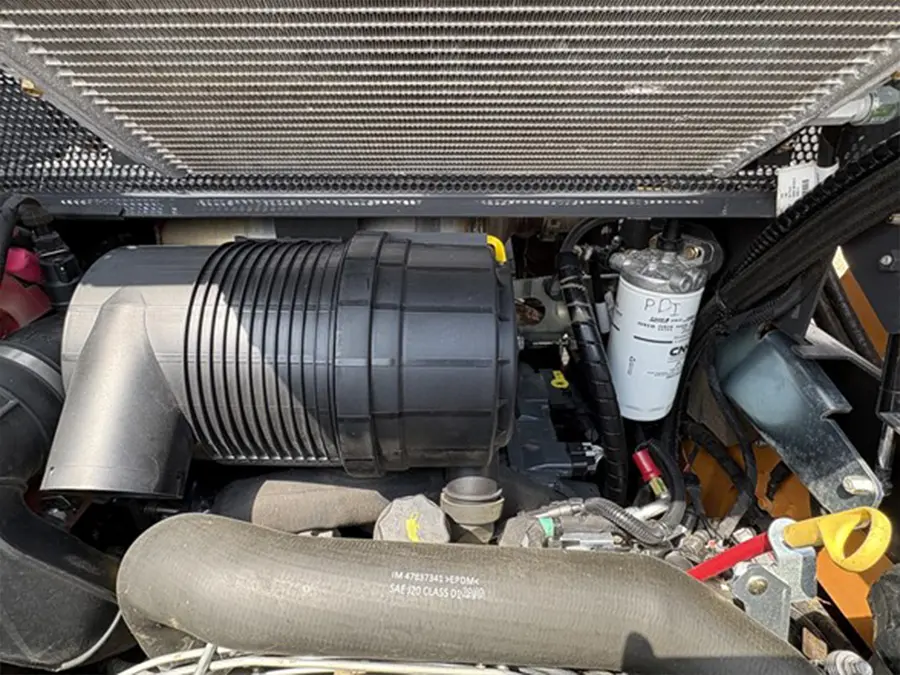

Engine Specs
| Manufacturer | FPT |
| Model | FSB FL413 D*C001 |
| Type | Diesel |
| Cylinders | 4 |
| Emissions | Tier 4 Final |
| Rated Speed | 2500 RPM |
| Torque Power | 1400 RPM |
| Combustion | Direct Injection |
| Compression Ratio | 22.0 |
| Firing Order | 1-3-4-2 |
| US | Metric | |
|---|---|---|
| Gross Power | 90.0 HP | 67.1 kW |
| Net Power | 84.0 HP | 62.6 kW |
| Displacement | 207 cu in. | 3392 cc |
| Bore | 3.9 in | 9.9 cm |
| Stroke | 4.3 in | 11.0 cm |
| Peak Torque | 282 ft-lb | 383.0 N-m |
| Coolant Capacity | ||
| Engine Oil Capacity | 2.2 gal | 8.5 L |
| Fuel Tank Capacity | 25.5 gal | 96.5 L |
Dimensions
| US | Metric | |
|---|---|---|
| Height | 80.4 in | 204.2 cm |
| Bucket Hinge Pin | 131.6 in | 334.3 cm |
| Width | 76.0 in | 193.0 cm |
| Length | 144.6 in | 367.3 cm |
| Dump Height | 101.9 in | 258.8 cm |
| Dump Reach | 35.5 in | 90.2 cm |
| Ground Clearance | 9.5 in | 24.1 cm |
| Dump Angle | 45° |
| Rollback Angle | 31° |
| Departure Angle | 32° |
Additional information
| Model | |
|---|---|
| Condition | Used |
| Year | 2024 |
| Location | Cape Girardeau, MO |
| Hours | 200 |
