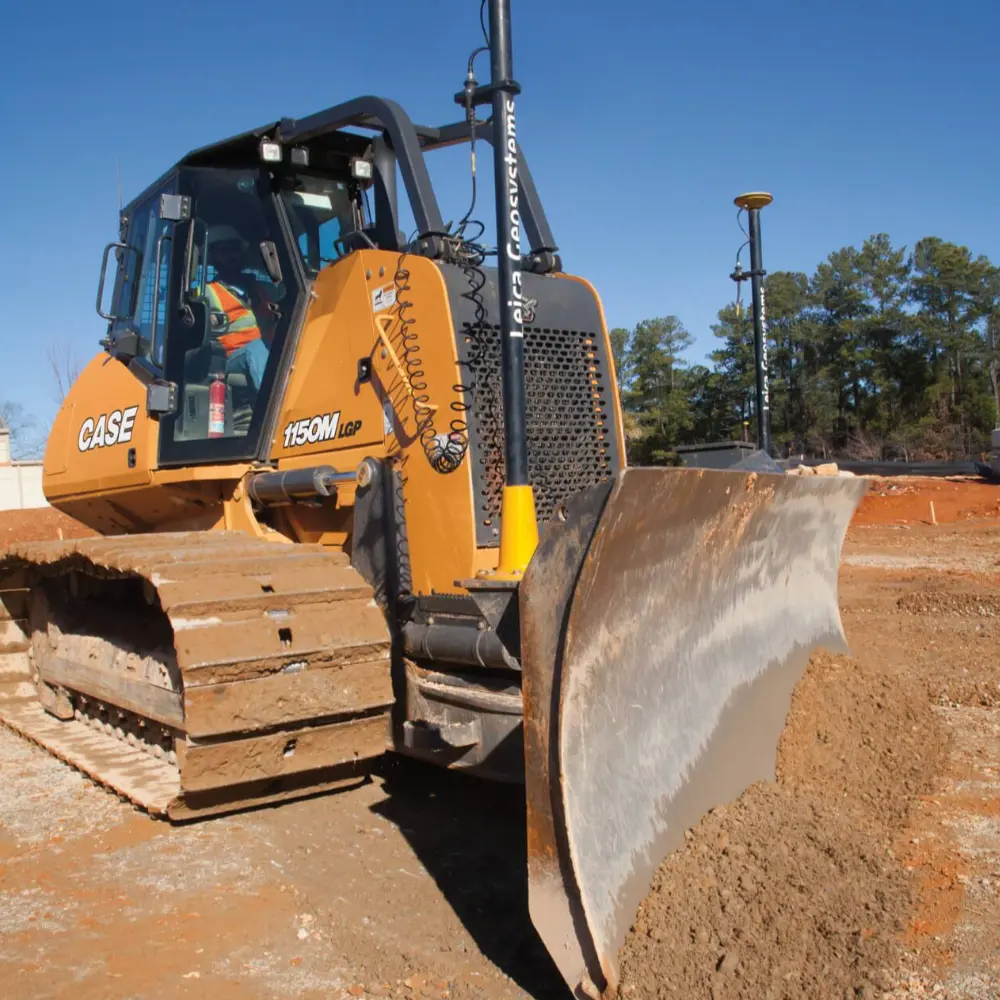

CASE 1150M Dozer

Power and Productivity:

• Drawbar Pull: Offers best-in-class drawbar pull for superior pushing power.
• Control Customization: Features adjustable settings for shuttle, steering, and blade sensitivity to match site conditions, enhancing control and efficiency.
• Load Management System: Optimizes productivity and machine performance by automatically adjusting track speed according to the load on the blade.
• Emissions System: Employs a selective catalytic reduction (SCR)-only system to ensure all engine power is directed towards work, maximizing fuel efficiency and compliance with emissions regulations.

Total Control for the Operator:

• Adjustable Sensitivity: Allows for the adjustment of shuttle, steering, and blade sensitivity settings to ensure optimal control in various operating conditions.
• Advanced Features: Includes additional fingertip controls for Blade Shake and Fine Grading, enhancing the dozer’s functionality and performance.

Operator Comfort and Jobsite Visibility:

• Industry-Leading Visibility: Provides excellent sight lines to the blade, tracks, and worksite, ensuring safety and precision in operation.
• Positive-Pressure Cab: Designed with advanced sealing to keep out dust and noise, offering one of the lowest sound ratings in the industry for a comfortable working environment.
• Isolated Design: Reduces cab vibration for a smoother ride, minimizing operator fatigue.

Ease of Maintenance and Service:

• Accessible Service Points: Features easy access to grouped service points, simplifying maintenance tasks and helping to ensure the machine’s longevity.
• CASE SiteWatch™ Telematics: Offers enhanced insights into machine performance and maintenance needs, enabling proactive service and optimal uptime.

Protected by CASE ProCare:

• Comprehensive Coverage: Includes a three-year, 3,000-hour full-machine factory warranty, a three-year, 2,000-hour planned maintenance contract, and a three-year advanced CASE SiteWatch™ telematics subscription, providing peace of mind and controlled owning and operating expenses.

Operator Environment:

• Comfortable Cab: ROPS-certified cab with a cloth air suspension seat featuring back adjustment for optimal comfort.
• Intuitive Controls: Single lever control for speed, steering, and direction ensures ease of operation.
• Convenience Features: Includes rearview mirror, two-door windshield wipers, dome light, 12-volt accessory outlet, headliner, floor mat, rear wiper, and a radio for a comfortable and convenient operator environment.
• Climate Control: Heat and air conditioning systems maintain comfortable cab conditions.
• Monitoring Systems: Equipped with warning lights and gauges for comprehensive machine monitoring, alongside audible warnings for critical alerts.

Engine:

• Powerful Engine: The F4HFE613F*A002 engine is Tier 4 Final Certified with SCR technology, ensuring high efficiency and low emissions.
• Reliable Operation: Features include an automatic fan belt tensioner, integral engine oil cooling, a dual-element radial seal air cleaner, and a 120 amp alternator for dependable performance.
• Enhanced Durability: Anti-sandblast radiator and coolant heated DEF lines are designed for harsh environments.

Drivetrain:

• Advanced Drivetrain: Dual path hydrostatic drive provides precise control, complemented by a robust final drive system for maximum power transmission.

Blade:

• Versatile Blade Control: The 55°—60° variable pitch blade has a single lever control for lift, angle, and tilt, providing flexibility for various tasks.

Undercarriage:

• Durable Undercarriage: Features hydraulic track adjusters, sealed and lubricated track chains (SALT), and robust components designed for longevity and reliability.

Additional Features:

• Safety and Utility: Backup alarm, horn, work lights, master disconnect switch, and towing hooks ensure safety and utility on the jobsite.
• Maintenance and Service: The 1150M boasts easy access to service points and enhanced CASE SiteWatch™ telematics for proactive maintenance and service planning.

Protected by CASE ProCare:

• Comprehensive Coverage: Includes a full-machine factory warranty, planned maintenance contract, and advanced telematics subscription, providing peace of mind and controlled operating expenses.

The CASE 1150M Dozer is built to deliver superior performance and productivity, focusing on operator comfort and machine durability.

Hydraulics:

• 4 Spool Hydraulic Valve: Designed for field-installed rippers, enhancing the dozer’s versatility for ground engagement tasks.

Rear Mounted Equipment:

• Ripper: Offers a 5-position, 3-shank configuration for breaking through rigid surfaces.
• Hydraulic Pump with PTO: Adds versatility for running various hydraulic attachments.
• Drawbar Options: Standard drawbar and drawbar with step for improved accessibility and towing capabilities.

Blades:

• Expanded Blade Choices: Includes 120 (3050 mm) and 132 (3355 mm) options to accommodate larger-scale tasks and improve productivity.

Guards:

• Protection: Sweeps, center rock guard, and radiator brush screen protect the machine from debris and damage, ensuring longevity and reliability.

Precision Control:

• Advanced Guidance Systems: Options for Factory Fit CoPilot, 2D Laser, and 3D GNSS provide superior control and precision. Compatibility with leading guidance systems like Leica, Trimble, and Topcon offers flexibility for integration with existing site systems.

Screens:

• Enhanced Protection: Additional screens for the ROPS rear, cab rear, and ROPS sides, along with a sandblast screen, offer added protection for the machine and operator in harsh environments.

Other Enhancements:

• Extended Life Track: CASE’s extended life track option ensures durability and a longer service life.
• Additional Lighting: Extra work lights enhance visibility for safe operation in low-light conditions.
• Front Counterweight with Pull Hook: Improves machine balance and utility.
• Severe Cold Weather Package: Allows for reliable operation in freezing temperatures, featuring enhancements like coolant-heated lines and additional heating elements.

Engine Specification	Detail
Model	FPT F4HFE613F*A002
Emissions Certification	Tier 4 Final Certified
Cylinders	6
Displacement	409 in³ (6.7 L)
Fuel Injection	Common rail
Fuel Type	#2 Diesel
Fuel Filter	Spin-on with in-line strainer
Air Intake	Cross-flow
Cooling	Liquid
Engine Speeds (RPM)	High idle – no load: 2200 +/- 50, Rated – full load: 2200, Low idle: 1100 +/- 25
Horsepower @ 2000 RPM – SAE J1349	Net: 127.4 hp (95 kW), Gross: 138 hp (103 kW)
Engine Lubrication	Deep sump plate cooler with pressurized under-piston nozzles
Pump Operating Angle Ratings	Side-to-side: 35°, Fore and aft: 45°
Oil Filtration	Replaceable, spin-on full-flow cartridge
Radiator Fins Per Inch	10.16
Fan Diameter	26.0 in (660 mm)
Fan Ratio	0.96:1

Dimension	Long Track (LT)	Wide Track (WT)	Low Ground Pressure (LGP)
Blade Width	120 in (3,048 mm)	132 in (3,353 mm)	132 in (3,353 mm)
SAE Blade Capacity	3.77 yd³ (2.88 m³)	4.16 yd³ (3.18 m³)	4.16 yd³ (3.18 m³)
Blade Height	44.1 in (1,119 mm)	44.1 in (1,119 mm)	44.1 in (1,119 mm)
A. Blade Lift Above Ground	36.4 in (926 mm)	36.4 in (926 mm)	36.4 in (926 mm)
B. Blade Depth Below Ground	20.4 in (518 mm)	20.4 in (518 mm)	20.4 in (518 mm)
C. Blade Angle Both Directions	25°	25°	25°
D. Cast Reach	16 in (406 mm)	14.5 in (368 mm)	12.5 in (317 mm)
E. Cut Reach	0.8 in (20 mm)	-0.8 in (-20 mm)	-2.8 in (-71 mm)
Blade Tilt, Each End – Up to 8.3°	16.9 in (430 mm)	17.7 in (450 mm)	17.7 in (450 mm)
Track Gauge	72 in (1.83 m)	80 in (2.03 m)	80 in (2.03 m)
Maximum Shoe Width	20 in (508 mm)	26 in (660 mm)	30 in (762 mm)
F. Length of Track on Ground	101 in (2,566 mm)	102.4 in (2,600 mm)	102.4 in (2,600 mm)
Area of Track on Ground	4,095 in² (2.64 m²)	5,320 in² (3.43 m²)	6,142 in² (3.96 m²)
Ground Pressure	7.60 psi (0.53 bar)	6.05 psi (0.42 bar)	5.31 psi (0.37 bar)
G. Height to Top of ROPS/Cab	9 ft 8 in (2,956 mm)	9 ft 8 in (2,956 mm)	9 ft 8 in (2,956 mm)
H. Ground Clearance	12.7 in (322 mm)	12.7 in (322 mm)	12.7 in (322 mm)
Length (Blade Straight with Drawbar)	16 ft 8 in (5,088 mm)	16 ft 8 in (5,088 mm)	16 ft 8 in (5,088 mm)
I. Blade Straight with Ripper	20 ft 4 in (6,191 mm)	20 ft 4 in (6,191 mm)	20 ft 4 in (6,191 mm)
Width (J. Blade Straight)	10 ft 0 in (3,048 mm)	11 ft 0 in (3,353 mm)	11 ft 0 in (3,353 mm)
K. Over Track	7 ft 9 in (2,388 mm)	8 ft 9 in (2,692 mm)	9 ft 2 in (2,794 mm)
