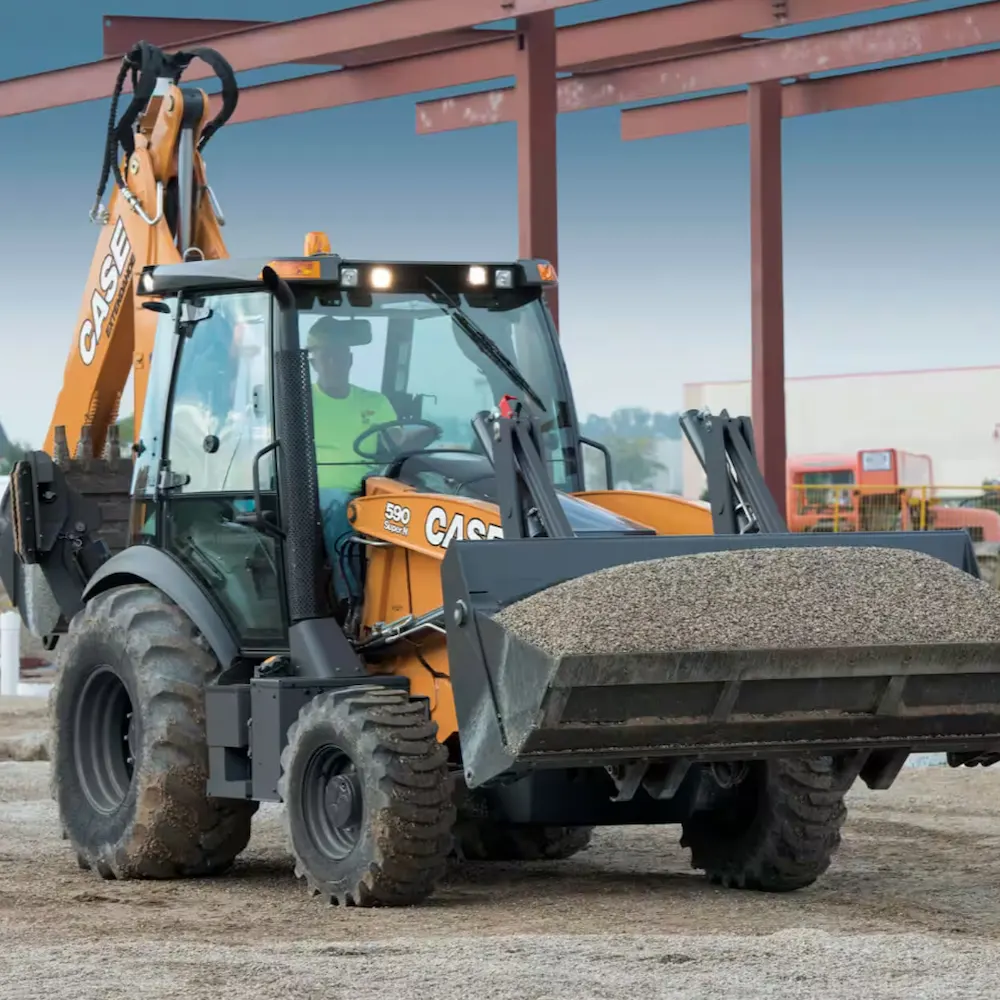

CASE 590 Super N Construction King Backhoe Loader

Purpose-Built Performance for Maximum Productivity

The 590 Super N stands out as our most potent backhoe loader, designed to enhance productivity:

• PowerBoost: Offers a hydraulic power surge with a simple button push, which is ideal for harsh digging conditions.
• PowerDrive Transmission: Provides smooth, automatic drive engagement, enhancing speed and gradeability under load.
• PowerLift: Delivers consistent strength for craning tasks, complemented by a universal hydraulic quick coupler for versatile attachment compatibility.
• ProControl: Ensures precise arm movement with minimal rebound for trenching or precision tasks.
• Comfort Steer & Auto-Ride Control: These features reduce time and spillage during loader operations, enhancing efficiency and control during transit.

Common-Sense Fuel Efficiency

The 590 Super N incorporates SCR (Selective Catalytic Reduction) technology for a Tier 4 Final solution that optimizes fuel savings without compromising engine performance. This system eliminates the need for regeneration downtime, ensuring continuous operation. Standard fuel-efficient ECO Modes for both loader and backhoe functions and adjustable engine Auto-Id and Auto-Off settings further enhance fuel efficiency.

CASE Comfort & Visibility

Designed with the operator in mind, the 590SN offers:

• Premium Seating: A multi-colored air-ride seat with lumbar support and heat for ultimate comfort.
• Connectivity: Bluetooth radio with USB to keep operators connected and productive.
• Versatile Controls: Options for backhoe controls include classic foot swing controls, dual-lever mechanical controls, or adjustable pilot controls.
• Enhanced Visibility: A low-profile hood and extensive glass coverage provide excellent visibility, complemented by optional LED lights for superior illumination.

Simple Serviceability for Peak Performance

Maintaining the 590 Super N is straightforward and efficient:

• Accessible Maintenance Points: Engine oil, transmission fluid, coolant, fuel, and DEF tanks are easily accessible from the ground.
• Serviceable Brakes: The brakes can be serviced without complete axle disassembly, and Extendahoe® wear pads are externally adjustable.
• SCR Solution: With no particulate filter to maintain or replace, the SCR system simplifies upkeep.
• Added Security: A battery disconnect switch and jumpstart terminal provide security and convenience.

Unparalleled Operator Environment:

• Safety and Protection: ROPS/FOPS certified protective canopy ensures operator safety, complemented by an anti-vandalism cover for the dash when equipped with a canopy.
• Comfort and Convenience: Features include rear fender extensions, a coat hook with a garment strap, an interior rearview convex mirror, and a mechanical suspension seat that swivels 180° for vinyl comfort.
• Enhanced Controls: Operators benefit from a 3-inch retractable seat belt, a cup holder/storage tray on the left-hand fender, a right-hand storage compartment with a lid, and a tilt steering wheel on cab models for ultimate comfort and convenience.
• Informative Gauges and Alarms: The operator is well-informed with gauges for engine water temperature, converter oil temperature, fuel level, tachometer/hour meter, and DEF level. Warning lights and audible alarms for various functions and diagnostics ensure optimal machine health and operator awareness.

Robust Engine Performance:

• Powerful FPT Engine: The FPT F5BFL413A diesel engine with Selective Catalytic Reduction (SCR) offers outstanding performance and compliance with Tier 4 Final emissions standards.
• Efficient Operation: Features such as aspirated air cleaner, fuel filter with water trap, radiator with de-aeration bottle, electronic throttles, self-adjusting belt, and High-Pressure Common Rail injection enhance efficiency.
• Engine Management: Engine ECO Mode, Auto Engine Idle, Auto Engine Shutdown, and Electronic Fuel Priming ensure efficient and smart operation. The Cold Weather Starting Aid includes dual 12-volt batteries, glow plugs, an engine block heater, and a heated CCV hose for reliability in all conditions.

Advanced Drivetrain for Superior Control:

• PowerDrive Transmission: The H-Type 4F-4R hydraulic clutch shifting transmission with kick down, transmission disconnect, and FNR switch in the loader control lever includes auto shift mode and direct drive for seamless operation.
• Durable Axles and Torque Converter: Features a 4WD heavy-duty mechanically driven front axle with 14.0 L x 17.5 tires and an outboard planetary drive rear axle with 21.0 L x 24.0 tires. The 11.8-inch torque converter, electric 4WD control, and differential lock enhance mobility and power.

Hydraulics and Loader Functionality:

• Efficient Hydraulics: Ground-level remote hydraulic test ports and a variable displacement axial piston pump provide 43 gpm @ 3,000 psi for responsive operation.
• Loader Efficiency: The bucket position indicator, lifting lugs, tie downs on the standard bucket, and a single lever control with self-leveling and return-to-dig feature ensure effective material handling.

Backhoe Precision and Power:

• Optimized Design: An over-center design with a fabricated “S” boom, a Pro Control System, and integrated serrated gripper teeth on the dipper stick offer precision and power.
• Enhancements: The Case mechanical coupler, Power Lift, Power Boost, and Extendahoe® enhance functionality for diverse digging and lifting tasks.

Additional Features for Optimal Performance:

• Tires designed for 4WD, a forward-tilt engine hood, replaceable front bumpers, comprehensive lighting options including signal and work lights, a master disconnect switch, hydrostatic steering, and a backup alarm ensure the machine is ready for any task.
• Maintenance and Security: Easy access to engine oil, fuel, and hydraulic filters, locking DEF/Fuel covers, and a step-mounted toolbox support maintenance and security.

Operator Environment Enhancements:

• Speed Selectable Auto Ride Control: Optimizes ride quality and loader performance on 4WD models.
• Comfort Steering: Reduces steering effort with a two-speed steering pump and includes a 3rd/4th gear cutout for enhanced maneuverability.
• Protective Cabs: Choose a Left-Hand (LH) Door or 2-door configuration equipped with heat, A/C, defroster, door-activated dome light, and additional lighting options for superior visibility and comfort.
• Deluxe Cab Package: This package is available on 2-door cabs and features a deluxe interior, viscous fan, pull-down sun visor, and reduced sound level for quieter operation.
• Premium Seating: This multi-color, hand-stitched cloth seat has heat and air suspension and provides exceptional comfort (not available with the ROPS Canopy option).

Engine Options:

• Severe Cold Weather Starting Aid: Ensures reliable performance with the synthetic transmission, hydraulic, and engine oils in extreme conditions.

Backhoe Functionality:

• Auxiliary Hydraulics: Choose between 1-way/2-way auxiliary hydraulics for various attachments, from hammers to thumbs.
• Control Systems: Offers a pilot-operated control system with fingertip proportional controls for the stabilizers and Extendahoe®, including an in-cab control pattern change switch.
• Universal Coupler: Ensures compatibility with a wide range of attachments for increased versatility.

Loader Upgrades:

• Auxiliary Hydraulics: For loader-mounted equipment with thumb-operated proportional control, enhancing attachment functionality.
• Hydraulic Quick Coupler: Allows quick and easy attachment changes, increasing operational efficiency.

Other Notable Options:

• Tire Selections: Choose from standard tire options or upgrade to Michelin for enhanced performance.
• LED Working/Driving Light Package: Enhances visibility with energy-efficient lighting.
• Special Paint and Front Fenders: Customize the appearance of your machine and add protection against debris.

Tool Portfolio: Expand your capabilities with a wide range of additional attachments tailored for the CASE 580 Super N WT.

Specification	Details
Model	FPT F5BFL413A
Emissions Certification	Tier 4 Final
Type	Diesel 4-stroke, Turbocharged
Cylinders	4
Bore/Stroke	3.90 x 4.33 in (99 x 110 mm)
Displacement	207 in³ (3.4 L)
Fuel Injection	Direct, high pressure common rail – HPCR
Fuel	Diesel
Engine Speeds* RPM – Rated Speed – Full Load	2200
Low Idle	900 – 1000
High Idle – No Load	2320 – 2430
Horsepower @ 2200 RPM – Gross	110 hp (82 kW)
Net	108 hp (81 kW)
Maximum Torque @ 1400 RPM – Gross	339 lb·ft (460 N·m)
Net	338 lb·ft (459 N·m)
Torque Rise at Rated Speed	29% +/- 5%
Radiator – Core Type	Square Wave
Core Size Area	486 in² (3 145 cm²)
Rows of Tubes	4
Viscous Fan – Style	9 Blade Viscous Suction
Diameter	19.68 in (500 mm)
Ratio	1.4:1
Pump Operating Angle Ratings – Side to Side	Rated 35°
Fore and Aft	Rated 35°
Oil Filtration	Replaceable, Full Flow Cartridge
Note	*Engine Speeds with Standard Transmission. Meets Federal Emission Regulations.

Feature	Specification
A. Overall operating height – fully raised	13 ft 11 in (4.24 m) / 13 ft 10 in (4.22 m)
B. Bucket hinge pin fully raised	11 ft 6 in (3.50 m) / 11 ft 6 in (3.50 m)
C. Bucket hinge pin at SAE carry	12.8 in (325 mm) / 12.8 in (325 mm)
D. Dump angle at full height	45° / 45°
E. Dump clearance at full height, 45° dump – Bucket	8 ft 11 in (2.72 m) / 9 ft 1 in (2.77 m)
E. Dump clearance at full height, 45° dump – Clam open	— / 9 ft 10 in (3.01 m)
F. Dump reach at full height, 45° dump – from bumper – Bucket	29.2 in (741 mm) / 27.8 in (707 mm)
F. Dump reach at full height, 45° dump – from bumper – Clam open	— / 13.8 in (351 mm)
G. Bucket rollback @ Groundline	40° / 41°
H. Bucket rollback @ SAE carry	46° / 46°
J. Bucket rollback @ Full height	Adjustable / Adjustable
K. Digging depth below grade – Bucket flat	6.2 in (157 mm) / 5.9 in (150 mm)
K. Digging depth below grade – Clam open – dozing	— / 3.5 in (89 mm)
L. Reach from front axle centerline – bucket on ground	6 ft 7 in (2.05 m) / 6 ft 5 in (1.99 m)
Lift capacity to full height – calculated values	8,202 lb (3 721 kg) / 7,807 lb (3 541 kg)
Breakout force – calculated values – Lift cylinders	11,463 lb (5 099 daN) / 11,225 lb (4 993 daN)
Breakout force – calculated values – Dump cylinders	12,776 lb (5 683 daN) / 13,717 lb (6 102 daN)
Bucket cutting edge width	92.7 in (2.36 m) / 93.0 in (2.36 m)
Maximum grading angle	106° / 106°
Maximum clam opening	— / 38.3 in (972 mm)
Moldboard height	— / 36.8 in (934 mm)
Raising time to full height	3.7 sec / 3.7 sec
Bucket dumping time	2.0 sec / 2.0 sec
Lowering time – Power down	2.5 sec / 2.5 sec
Return-to-dig	3.8 sec / 3.8 sec
Clam – Open time	— / 1.3 sec
Clam – Close time	— / 1.1 sec
M. Overall transport length – Long Lip bucket	23 ft 10 in (7.25 m) / —
M. Overall transport length – 4 IN 1® bucket	23 ft 7 in (7.20 m) / —
Overall transport width	7 ft 9 in (2.36 m) / —
Height – To top of canopy	8 ft 9 in (2.68 m) / 8 ft 9 in (2.68 m)
Height – To top of cab	8 ft 11 in (2.71 m) / 8 ft 11 in (2.71 m)
Height – To top of exhaust stack	8 ft 9 in (2.67 m) / 8 ft 9 in (2.67 m)
N. Transport	11 ft 8 in (3.54 m) / —
Ground clearance at backhoe frame	14.2 in (360 mm) / 14.2 in (360 mm)
Angle of departure	18.7° / 18.7°
Front wheel tread – 14.0 L x 17.5 Industrial Rib	74.3 in (1.89 m) / —
Rear wheel tread – 21.0 L x 24.0	69.6 in (1.77 m) / —
O. Wheelbase – 2WD	84.0 in (2.13 m) / —
O. Wheelbase – 4WD	84.5 in (2.15 m) / —

Base & Extended Warranty Coverage

• 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
• 2-Year/2,000-Hour Extended Engine Warranty

Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump. Drive Train Warranty – Drive (flex) plates / flywheel, drive axle assembly, drive couplings, drive shafts / universal joints, final drive / planetary, hydraulic drive motor, hydraulic drive pump, hydraulic pump when used as a power source for drive pump or drive motor, propulsion planetary drive, pump drive coupling, pump drive gearbox, seals in idlers and rollers, swing reducer transmission, torque converter, track steering brakes and clutch, transfer gear group, transmission charge pump, transmission / transmission control valve, transmission electronic controller, trencher drive gearbox, turntable bearing / swing gear / hydraulic swivel, and wet brakes / wet clutch.

Purchased Protection Plan

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Loader/Backhoe models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
