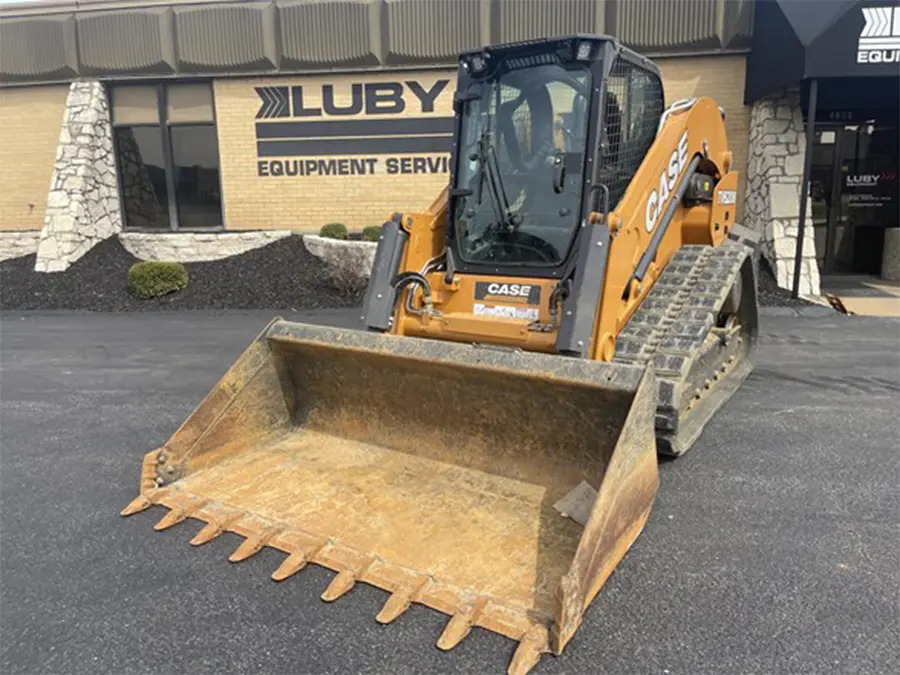

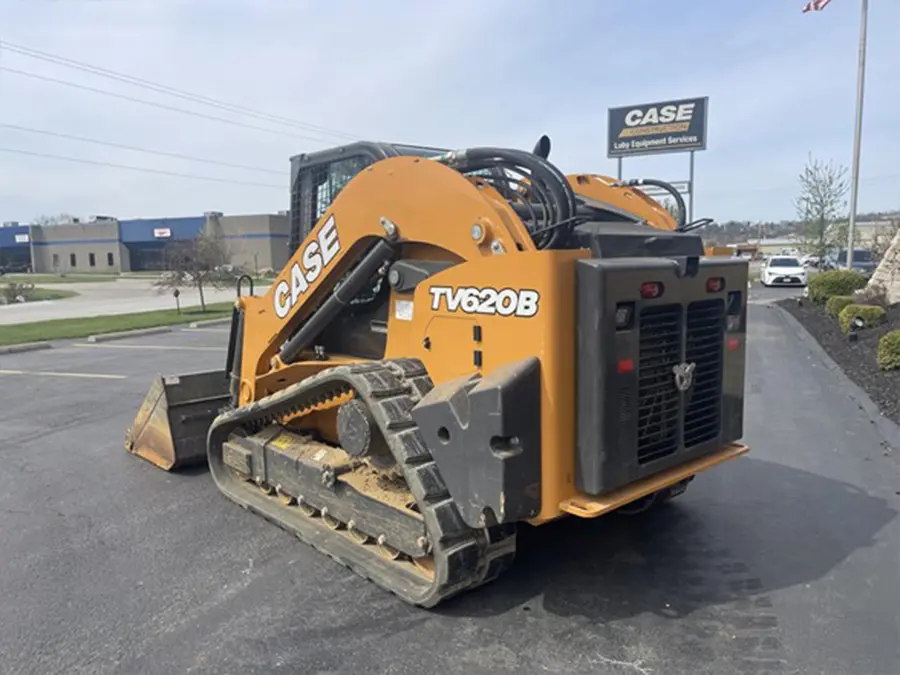

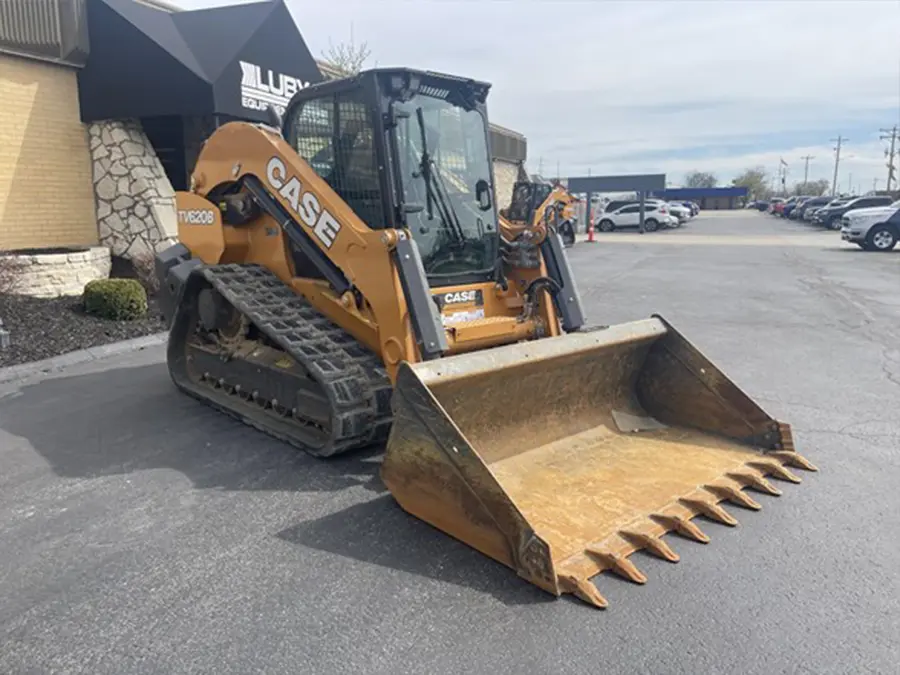

CASE Compact Track Loader TV620B – EQ0050923

Unmatched Performance: The Titan of Compact Track Loaders

The TV620B sets a new benchmark as the most formidable compact track loader on the market. It’s engineered for:

• Operating heavy-duty attachments with ease
• Loading the highest of trucks without breaking a sweat
• Digging through the harshest terrains with unmatched efficiency

Key Performance Specifications:

• Rated Operating Capacity: 6,200 pounds
• Breakout Force: 12,907 pounds (bucket), 12,084 pounds (lift)
• Track Length on Ground: 74 inches

Feature-Rich Standard Equipment

The TV620B has more standard features than ever, ensuring it’s not just a machine but a comprehensive solution for your most demanding jobs.

Standard Features Include:

• Electro-hydraulic controls with adjustable responsiveness
• High-flow hydraulics for robust attachment operation
• Automatic Ride Control and one-way self-leveling for optimal machine balance
• Programmable hydraulically reversing fan to keep the engine compartment clean
• LED lights for superior visibility
• The new SiteConnect Module for enhanced machine connectivity
• One year of CASE SiteWatch telematics for insightful fleet management

Precision and Control at Your Fingertips

The TV620B stands out with its user-friendly, adjustable electrohydraulic controls, which allow operators to tailor machine responsiveness to specific tasks easily.

Control Features:

• Adjustable machine responsiveness: low, moderate, or aggressive
• Independent setting for tilt, lift, drive speed, loader arm, and drive control
• Simple adjustments through the LCD multi-function display in the cab

Power Meets Precision: Attachment Versatility

With its robust high-flow hydraulics, the TV620B is ready for the most powerful and precise attachments.

Hydraulic Specifications:

• Standard: 41.6 gallons per minute at 3,450 psi; 83.7 hydraulic horsepower
• Optional Enhanced High-Flow: 41.6 gallons per minute at 4,100 psi; 99.5 hydraulic horsepower

Perfect for Attachments Such as:

• Cold planers
• Mulchers
• CASE precision grader blade

Unparalleled Visibility and Safety

The TV620B leads the industry in operator visibility, ensuring safety and precision on every job.

Visibility Features:

• The industry’s only split-screen display for simultaneous rearview and machine information
• The cab-wide rearview mirror and CASE H-Link design for rear visibility
• Large front window and side windows for comprehensive sightlines

Seamless Fleet Management with SiteConnect

Introducing the SiteConnect Module in a CASE CTL, offering unparalleled telematics performance and operational efficiencies.

SiteConnect Advantages:

• Enhanced telematics performance
• Remote diagnostics and software updates
• Real-time machine information sharing with dealers and the CASE Uptime Center

Designed for Ease of Ownership

The TV620B simplifies maintenance and provides real-time operational data to keep your machine running at its best.

Maintenance and Operational Highlights:

• Conveniently grouped service points for easy maintenance

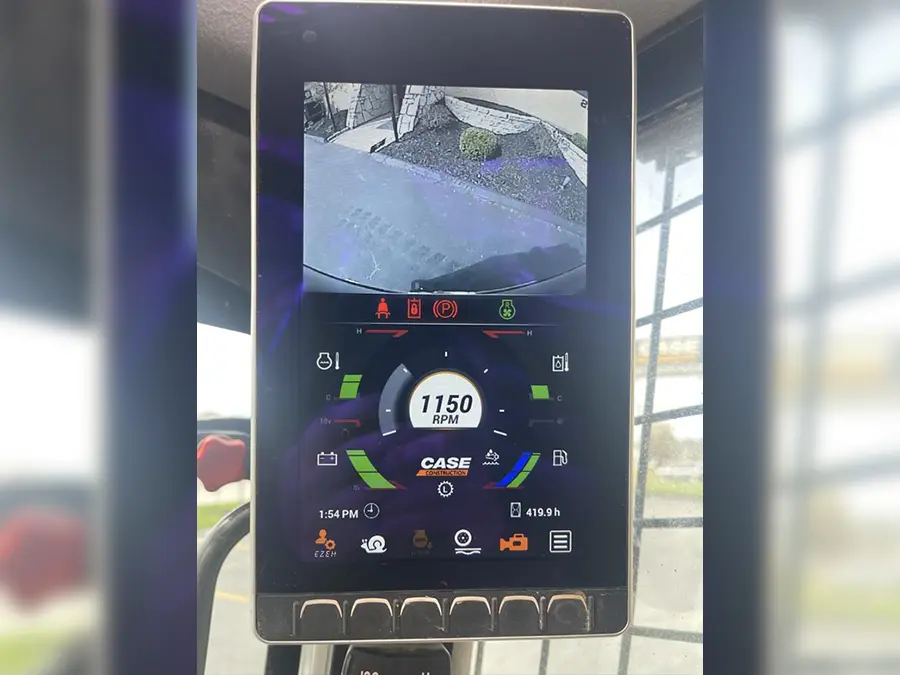

• 8-inch LCD multi-function display for real-time data
• One year of CASE SiteWatch telematics for comprehensive machine insights

Operator Environment: Comfort Meets Functionality

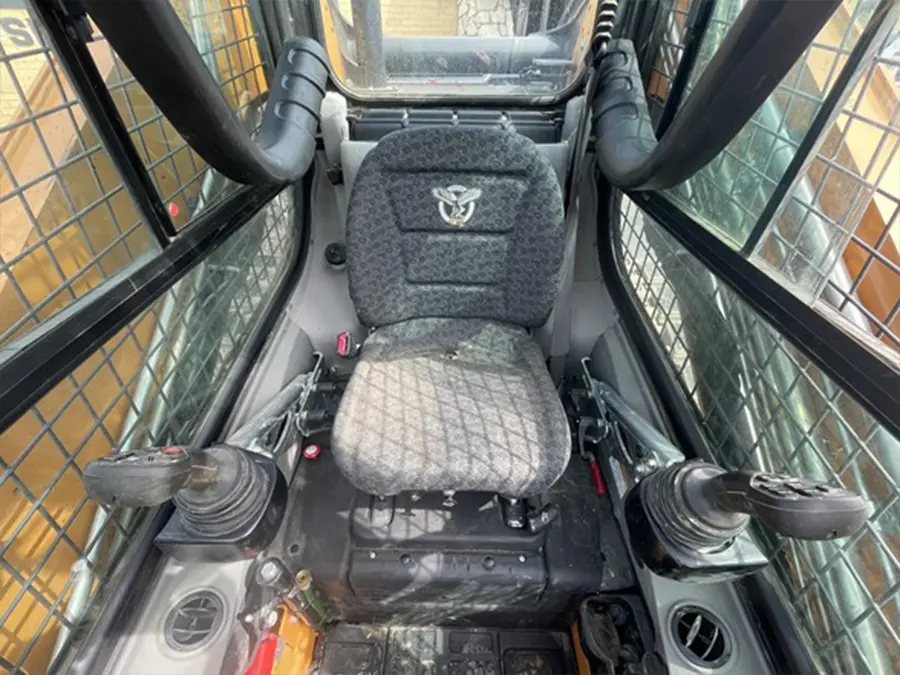

• Enclosed Cab: ROPS/FOPS Level 1 certified, providing a safe and secure working environment.
• Visibility and Comfort: Fully sealed and pressurized cab with FSP glass door, including wiper and washer, and sliding, removable side windows for optimal visibility and comfort.
• Climate Control: Integrated ventilation system with heater and air conditioner, ensuring operator comfort in all weather conditions.
• Entertainment and Convenience: AM/FM Bluetooth radio with two speakers, a USB port, keyless start ignition, and an 8-inch color LCD display for ease of use and entertainment.
• Advanced Seating: Deluxe cloth, air suspension seat with heater and lumbar support, ensuring comfort during long working hours.
• Safety Features: 2-inch retractable 3-point lap seat belt, ignition timeout, and machine settings with operator security codes for enhanced safety and security.
• Control and Alerts: Hand and foot throttles, alarm package (back-up and horn), rearview mirror, and a comprehensive set of warning lights and alarms for critical system alerts.

Engine: Power and Efficiency

• Advanced Cooling: Charge Air Cooler (CAC) and a 3-stack after cooler/radiator/oil cooler configuration for optimal engine performance.
• Maintenance and Safety: Dual element air cleaner, Organic Acid Technology (OAT) anti-freeze solution, fuel filter with water trap, and master electrical disconnect for easy maintenance and enhanced safety.

Drivetrain: Precision and Control

• Hydrostatic Drive: 2-speed hydrostatic four-wheel drive offering precise control and maneuverability.
• Safety: SAHR disc parking brake for secure stops and foot pedal modes for varied operational control.

Hydraulics: Power at Your Fingertips

• Versatile Hydraulics: Auxiliary hydraulics with high-flow options, a 6-micron oil filtration system, and auxiliary hydraulic disconnects for various applications.
• Advanced Features: Hydraulic circuit pedal lock, auto Ride Control, and creep speed mode for enhanced operational control.

Loader: Strength and Versatility

• Efficient Design: Hydraulic attachment coupler and vertical lift geometry for superior lifting and loading capabilities.
• Convenience: Loader lift arm support pin and loader function lockout system for ease of use.

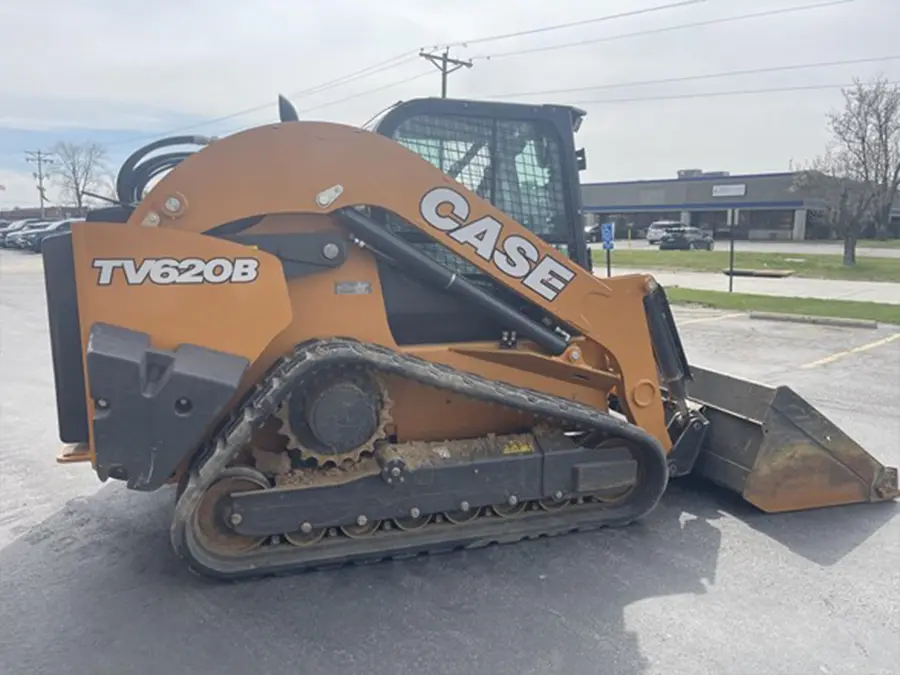

Tracks: Durability and Stability

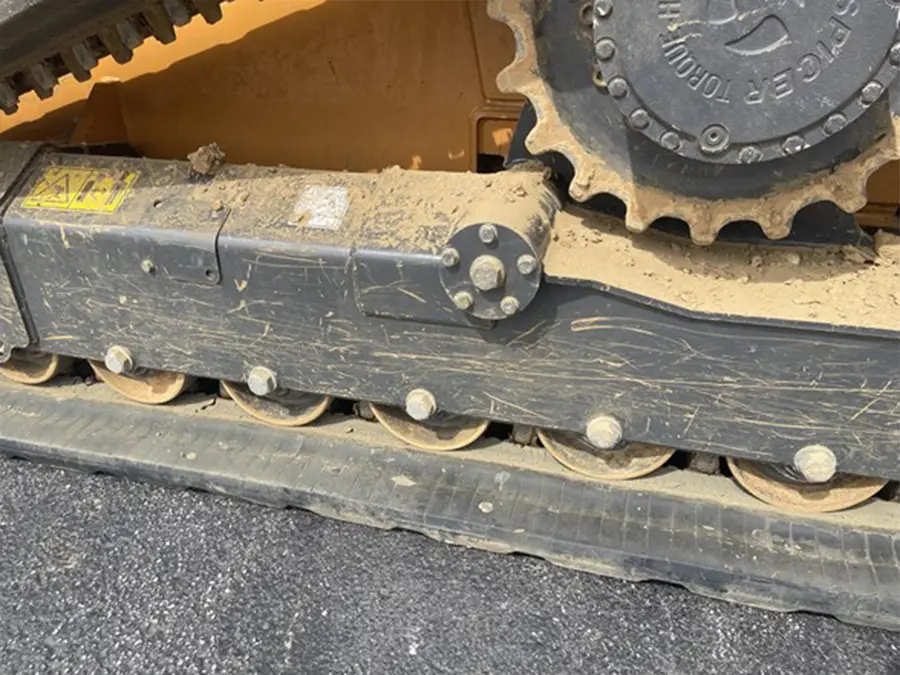

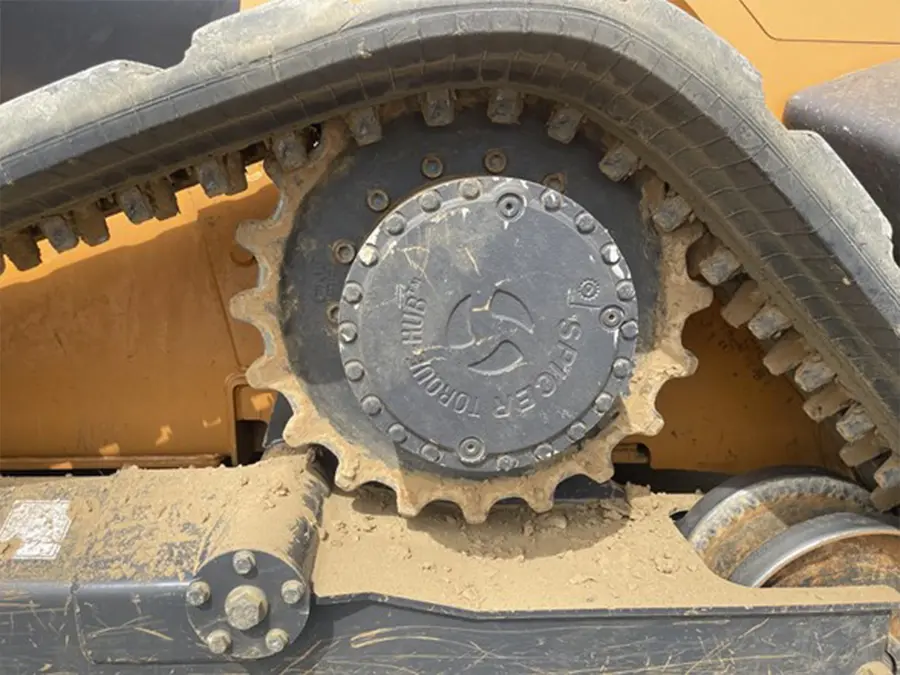

• Robust Tracks: Heavy-duty rubber tracks designed to withstand challenging terrain and provide stable, reliable performance.

Lighting and Service Features: Enhancing Productivity

• Enhanced Visibility: LED lights are strategically placed for optimal visibility during operations.
• Easy Maintenance: Lockable service access hood and single-point daily servicing for convenient maintenance.

Telematics: Advanced Fleet Management

• CASE SiteWatch™ Telematics: Includes hardware and a 5-year data subscription, offering comprehensive fleet management solutions.
• Remote Diagnostics: SiteConnect Module provides remote diagnostics capability, enhancing machine uptime and efficiency.

Operator Environment: Customized Comfort and Safety

• Open Cab Option: Choose an open cab (ROPS/FOPS Level 1) with side screens for increased ventilation and visibility.
• Seating Options: Opt for a mechanical suspension seat in durable vinyl for comfort during extended operations.
• Enhanced Safety: Select the demolition cab door with polycarbonate for added protection in hazardous environments.

Hydraulics: Power and Precision

• Enhanced High-Flow Hydraulics: Upgrade to Enhanced High-Flow (EHF) auxiliary hydraulics at 4,100 psi and 41.6 gpm for operating high-performance attachments.
• Dual Functionality: Add a second auxiliary hydraulic circuit for greater versatility in attachment use.

Customization and Utility Options

• Language Decals: Choose decals in your preferred language for ease of use and safety.
• Bucket Options: Select from various buckets and bolt-on bucket cutting edges to suit your job requirements.
• Special Paint: Customize your loader with unique paint options for brand consistency or personal preference.
• Steel Tracks: Choose between 14-inch or 18-inch steel tracks for enhanced durability and traction on rugged terrains.

Service and Safety Enhancements

• Visibility and Safety: Enhance safety with options like road lights, four-corner LED strobe lights, and a rotating beacon for increased visibility on job sites.
• Air Intake Protection: Opt for a precleaner to extend the life of your engine by preventing dust and debris from entering the air intake system.
• Additional Safety Features: Upgrade to a 3-inch retractable seat belt, install a fire extinguisher, and add a tamper-resistant front door bracket for increased safety.
• Lifting and Carrying: Equip your loader with a four-point lift hook or Class III 48-inch pallet forks for versatile lifting and material handling capabilities.
• High Altitude Performance: Select an 1150 CCA battery option for reliable performance in high-altitude conditions.

Attachment and Weight Options

• Attachment Readiness: Prepare for any attachment with an attachment hose kit and a drawbar for easy connection.
• Extra Counterweights: Note that extra counterweights are not offered for this model, ensuring the machine’s optimal balance and performance are maintained.

Engine Feature	Specification
Model	FPT F5B FL413 D*C005
Emissions Certification	Tier 4 Final
Type	Diesel 4-stroke, Turbo, Direct Injection (D.I.)
Cylinders	4
Bore/Stroke	3.9 x 4.3 in (99 x 110 mm)
Displacement	207 in³ (3.4 L)
Fuel Injection	Direct, high pressure common rail – HPCR
Fuel Type	#2 Diesel
Fuel Filter	Pre-filter: Beta (30) = 200/spin-on Main filter: Beta (4) = 20/spin-on
Air Intake	Turbocharged with waste gate and external cooled EGR
Exhaust Aftertreatment	Selective Catalytic Reduction (SCR) Diesel Oxidation Catalyst (DOC)
Cooling	Liquid
Engine Speeds (RPM)	High idle – no load: 2500 +/- 25 Rated – full load: 2500 Low idle: 1150 +/- 25
Horsepower @ 2500 RPM (SAE J1349)	Gross: 114 hp (85 kW) Net: 114 hp (85 kW)
Peak Torque @ 1400 RPM	339 lb·ft (460 N·m)
Radiator – Core Type	Aluminum bar and plate
Radiator – Core Size Area	253 in² (0.163 m²)
Radiator – Rows of Tubes x Columns	19 rows
Radiator – Cap Pressure	16 +/- 2 psi (1.10 +/- 0.14 bar)
Fan – Diameter	22 in (560 mm)
Fan – Ratio	0.96:1 standard, 1.1:1 high-flow
Water Pump – Style	Centrifugal
Water Pump – Flow	47.8 gpm (181 L/min)
Engine Lubrication Pump	Rotor pump with deep sump pan, plate cooler, and pressurized under-piston nozzles
Pump Operating Angle Ratings	Side to side: 45° Bucket up: 35° Bucket down: 45°

Dimension	Specification
A. Overall Operating Height	With heavy-duty bucket: 176.5 in (4.48 m) With XHD bucket: 189.6 in (4.82 m)
B. Height to Bucket Hinge Pin	140.2 in (3.56 m)
C. Height to Top of ROPS	84.6 in (2.15 m)
D. Bottom of Level Bucket, Fully Raised	133.3 in (3.39 m)
E. Overall Length Without Attachment	With coupler: 129.5 in (3.29 m)
F. Overall Length With Bucket	With heavy-duty bucket: 159.1 in (4.04 m) With XHD bucket: 172.7 in (4.39 m)
G. Maximum Dump Angle	46.1°
H. Dump Height	With heavy-duty bucket: 109.0 in (2.77 m) @ 46.1° With XHD bucket: 99.2 in (2.52 m) @ 46.1°
I. Dump Reach at Maximum Height	With heavy-duty bucket: 39.0 in (0.99 m) @ 46.1°
J. Maximum Attachment Rollback	Bucket on ground: 30° Bucket at full height: 84°
L. Track on Ground	Rubber: 74 in (1.88 m) Steel: 66 in (1.7 m)
M. Ground Clearance	Bottom of belly pan: 12.6 in (0.32 m)
N. Angle of Departure	37.7°
O. Clearance Circle Without Bucket	Rubber Track: 67.4 in (1.71 m)
P. Clearance Circle With Bucket	With 84 in heavy-duty bucket on ground – Rubber Track: 102.3 in (2.60 m)
Q. Clearance Circle Rear	Rubber Track: 69.5 in (1.77 m)
R. Track Gauge	60.6 in (1.54 m)
S. Over the Track Width	Rubber Track: 78.3 in (1.99 m) Steel Track with 14 in tracks: 74.6 in (1.894 m) Steel Track with 18 in tracks: 78.6 in (1.995 m)

Tier 4 Final

HPCR, EXTERNAL CEGR WITH DOC & SCR

Why this solution: As an after-treatment system, Selective Catalytic Reduction (SCR) lowers exhaust temperatures and does not require unproductive fuel use associated with burning off particulate matter, plus there’s no Diesel Particulate Filter (DPF) to replace making it a great solution for larger, high-productivity engines.

How it works: The high-pressure common rail (HPCR) system electronically controls fuel injection for greater fuel economy through more efficient fuel burn. With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air and then returned to the cylinder. Then the diesel oxidation catalyst (DOC) oxidizes the machine’s exhaust to create heat, further managing particulate matter emissions.

SCR is a simple solution that combines DEF (Diesel Exhaust Fluid) with exhaust to convert NOx emissions into nitrogen and water. DEF is a non-toxic liquid that reacts with engine exhaust in the presence of a catalyst to perform emissions conversion.

What this means to you: SCR provides a significant reduction in fuel use and has no DPF to replace, resulting in a lower total operating cost for the life of the machine. Keeping it running is simple – just refill DEF as needed.

Powered by an FPT engine.

Base & Extended Warranty Coverage

• 1-Year/Unlimited-Hour Full-Coverage Base Warranty
• 2-Year/2,000-Hour Full Coverage Base Limited Warranty
• 2-Year/2,000-Hour Extended Limited Engine Warranty

Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump.

Purchased Protection

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to three-years / 5,000 hours on CASE Compact Track Loader models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
