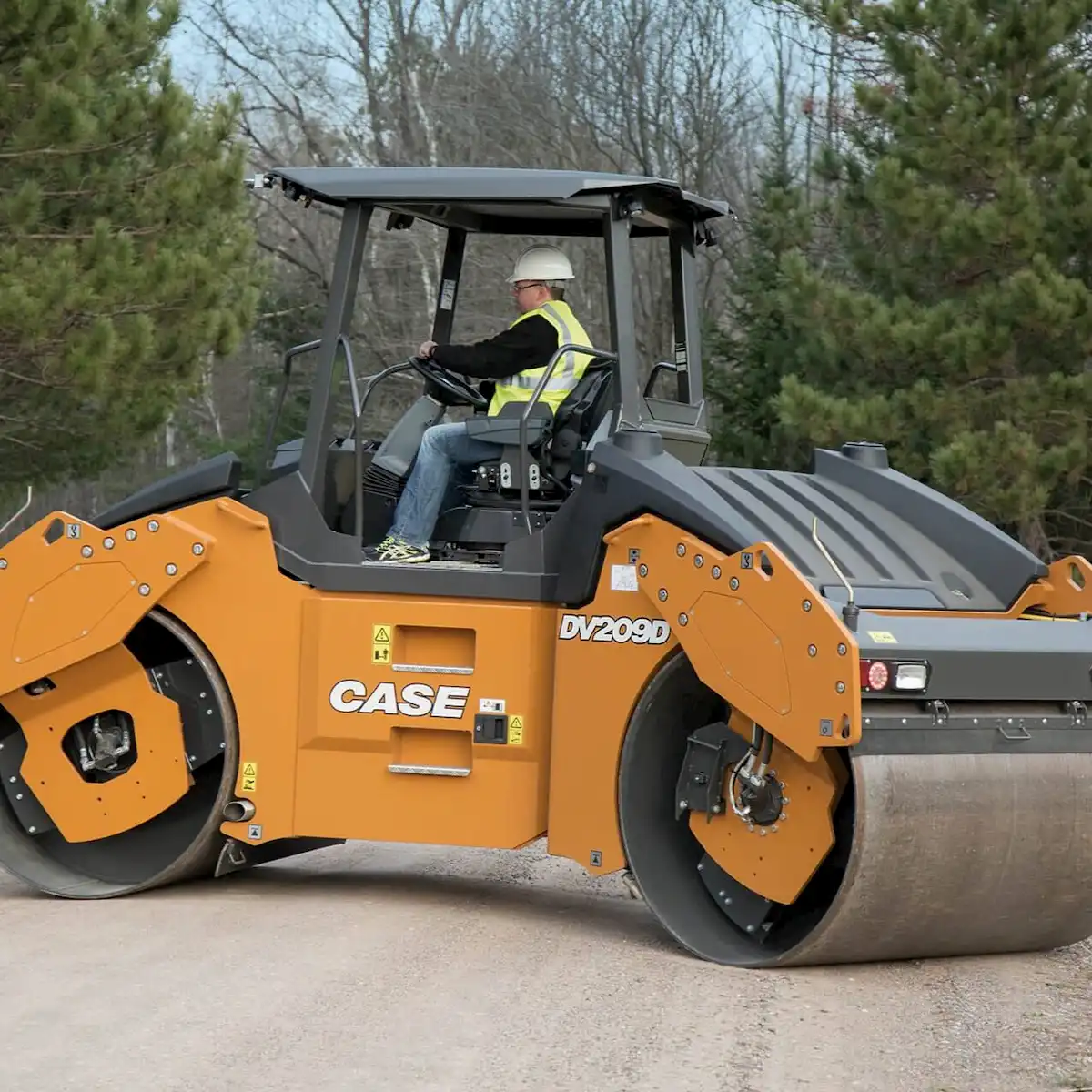

CASE DV209D Double Drum Roller

Enhanced Productivity
The DV209D is powered by a robust Tier 4 Final 100 HP Deutz engine, fully compliant with emissions regulations for DOT projects, marking it as an eco-friendly choice. This engine benefits from a sophisticated combination of EGR (Exhaust Gas Recirculation), DOC (Diesel Oxidation Catalyst), and SCR (Selective Catalytic Reduction) after-treatment technologies. These features ensure cleaner operations and contribute to the roller’s fuel efficiency. An updated cooling system and automatic idle control work in tandem to slash fuel consumption by up to 15% compared to previous models, making the DV209D a cost-effective and environmentally responsible option for modern compaction tasks.

Operator Comfort and Visibility
The DV209D provides a spacious, intuitive operator environment that maximizes comfort and efficiency throughout long working hours. Key features include:

• An adjustable sliding/rotating seat that enhances visibility over the drum surfaces, edges, and spray bars, ensuring precise compaction.
• A tilting and adjustable-height steering column and adjustable armrests equipped with integrated control switches offer a customizable and ergonomic operating experience.
• A multifunctional display mounted directly on the steering wheel gives the operator real-time operational data, precision controls, and diagnostics, facilitating efficient machine control.

Unmatched Serviceability
In line with CASE’s commitment to ease of maintenance, the DV209D boasts exceptional groundline serviceability. Large swing-out doors on both sides of the roller grant straightforward, ground-level access to all vital maintenance points:

• Fluid ports and drains for hassle-free servicing.
• Service checkpoints for quick inspections and routine maintenance.
• The cooler unit for efficient cleaning and upkeep.

Safety and Structure

• Fixed ROPS/FOPS Canopy: Ensures operator safety and compliance with safety standards.
• Articulated Chassis: Provides excellent maneuverability and control.

Engine and Drive System

• Deutz TCD 3.6 L4/Tier 4 Final Engine: Delivers reliable power while meeting emissions standards.
• Hydrostatic Drive for Both Drums: Ensures smooth and efficient operation.

Compaction and Drum Features

• Vulcollon Drum Scrapers (Fixed): Keep the drums clean for consistent compaction.
• Machined Tapered Drum Edges: Allow for precise compaction near curbs and other obstacles.
• Drum Offset – Crab Steer: Enhances maneuverability and compaction efficiency.

Maintenance and Accessibility

• Spin-On Fuel, Engine Oil, and Hydraulic Filters: Simplify maintenance tasks.
• Master Disconnect Switch: Provides safety measures for maintenance and emergencies.
• 4-Point Lift and Tie Down Provision: Facilitates easy transport and securement.

Visibility and Warning Systems

• Worklights with Turn Signals: Enhance visibility and safety on the job site.
• Back-Up Alarm: Alerts nearby personnel when the roller is reversing.
• Brake Release: Enhances operational safety.

Operator’s Compartment

• ISO-Mounted Operator’s Platform: Reduces vibration for increased comfort.
• Multi-Position Shifting Suspension Seat with Foldable Armrests: Ensures optimal operator comfort.
• Adjustable Steering Column and Single Lever Control: Provide ergonomic operation.
• Speed Selector, Smooth Start/Stop, and Return to Center (Offset): Offer precise control.
• Emergency Stop Button and Seat Safety Switch: Enhance operator safety.

Instrumentation and Control

• Intelligent Integrated Display Screen: Offers real-time data and diagnostics.
• Throttle Control, Manual or Auto Vibration Control: Allow precise operation.
• Water and Fuel Tank Level Indicators, Vibration Frequency, and Sprinkler Intensity Controls: Provide essential operational information.

Monitoring and Diagnostics

• Comprehensive Indicator Lights: These are for battery, coolant level, engine temperature, filters, hydraulic oil, and more.
  Monitor Display Panel: This panel displays engine RPM, hours, fuel rate, system voltage, engine load, coolant temperature, oil pressure, fuel economy, and current fuel consumption.

Water and Vibration Systems

• Pressurized Water System with 3-stage Filtration: Ensures effective dust suppression.
• Dual-Mode Vibratory System with Front, Rear, and Dual Drum Vibration Control: Offers versatility in compaction.

Telematics

• CASE SiteWatch Telematics: Includes hardware and a 5-year advanced data subscription for comprehensive machine monitoring and management.

Comfort Enhancements

• Cab with Heat and Ventilation: Provides a comfortable operating environment in various weather conditions.
• Cab Air Conditioning: This keeps the operator cool and comfortable during hot weather operations.
• Radio Mounting with 2 Speakers and Antenna: This prepares the cab for radio installation, which provides entertainment and communication on the job site.

Safety and Visibility Options

• Rotating Beacon: Enhances the roller’s visibility on job sites, promoting safety.
• Cab Mounted LED Work Lights and 360 Degree Night Illumination Kit: Improve visibility for night or low-light operations, ensuring safer and more efficient work.

Performance and Precision Tools

• Edge Cutters (Right Side, or Right and Left Side): Available in 45 or 60 degrees, these tools enable precise trimming and finishing of edges, improving job quality.
• Tiltable Scrapers—Front and Rear: These scrapers allow easy adjustment and maintain clean drum surfaces for consistent compaction.
• Infrared Thermometer: Provides real-time monitoring of surface temperatures, ensuring optimal compaction results.

Control and Operation Enhancements

• Left-Hand Control Lever: Offers additional control options, enhancing ergonomics and operator preference.
• ACE Force Intelligent Compaction: Advanced technology for real-time compaction monitoring, optimizing efficiency, and ensuring uniform compaction across the project area.

Base & Extended Warranty Coverage

1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
2-Year/2,000-Hour Extended Limited Engine Warranty

Purchased Protection

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available for up to six years / 7,500 hours on CASE Compaction Equipment.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The Case Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine Case service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
