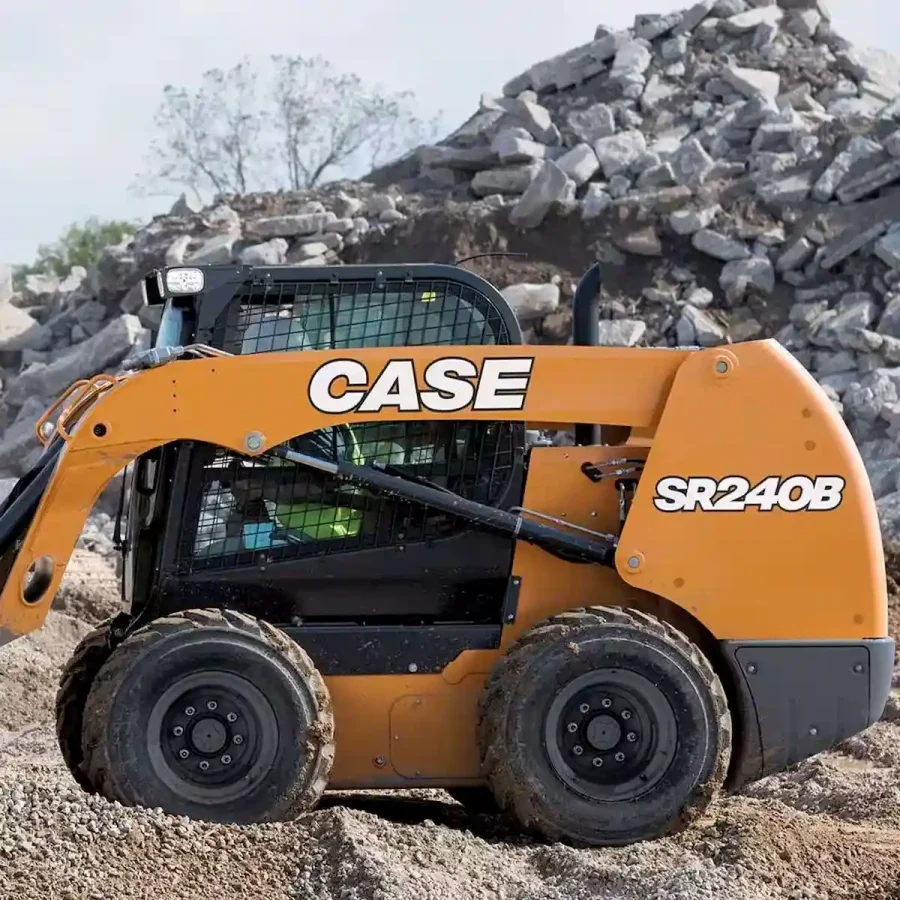

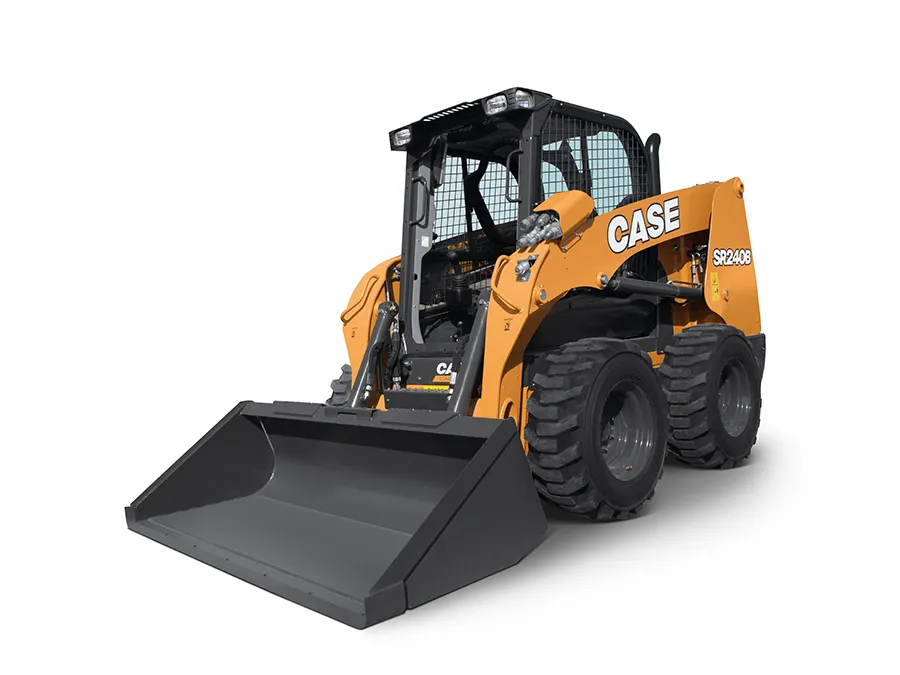

CASE SR240B Skid Steer Loader

Visibility and Comfort

• Industry-Leading Visibility:
  • Backup camera is active in both forward and reverse modes.
  • Cab-wide rearview mirror.
  • Large front and side windows for expansive visibility.
  • Low entry threshold and sloping rear hood for clear sightlines to the bucket.
  • 360-degree lighting for all-around visibility.
• Operator Comfort:
  • One of the industry’s widest cabs for spacious interiors.
  • Redesigned controls, cupholders, and air vents for increased legroom and comfort.
  • Variety of control configurations: electro-hydraulic, mechanical, and mechanical hand and foot.
  • Electro-hydraulic models feature an 8-inch LCD multi-function display for customizable control, including easy switching between ISO and H operating patterns, saving operator profiles, and setting machine responsiveness.

Productivity and Performance

• Enhanced Capacity:
  • Rated operating capacity of 2,400 pounds.
  • Maintenance-free Tier 4 Final emissions solution without additional fluids or a diesel particulate filter (DPF).
• Power and Versatility:
  • 74 horsepower engine provides superior torque and breakout forces.
  • Compatible with hundreds of attachments through standard (3,050 psi and 24.2 gpm) and high-flow (3,050 psi and 37.6 gpm) auxiliary hydraulics.

Ease of Ownership

• Maintenance and Service:
  • Critical checks and service points are easily accessible at the rear of the machine.
  • 8-inch LCD multi-function display offers real-time operation and performance data.
• Simplified Maintenance:
  • Features a maintenance-free Tier 4 Final emissions solution, eliminating the need for fluid additions or filter replacements.

Operator Environment

• Safety and Structure: ROPS/FOPS Level 1 canopy with side screens and tilt ROPS/FOPS for robust protection.
• Comfort Features: Deluxe cloth, air suspension seat with heater and lumbar support, including a 2-inch retractable 3-point lap seat belt for enhanced comfort.
• Visibility and Control: Rear window with emergency escape, hand and foot throttle, rearview mirror, headliner, dome light, top window, and a padded seat bar with integral armrests for superior control and visibility.
• Convenience: Keyed start ignition, alarm package (back-up and horn), cup holder, 12V power plug socket, footrest, seat pocket, loader control lockout system, electric parking brake control, and operator’s compartment floor cleanout.
• Instrumentation and Controls: The joystick has proportional auxiliary hydraulic control, and the advanced instrument cluster includes a digital hour meter, tachometer, fuel level LCD bar graph with alarm, diagnostic features, and security lockout.
• Warning Systems: Includes lights and alarms for engine coolant temperature, engine oil pressure, engine malfunction, hydraulic charge pressure, hydraulic filter restriction, and hydraulic oil temperature, along with engine preheat, parking brake, and seat bar reminder indicators.

Engine Specifications

• Engine Model and Performance: FPT F5H FL463 A*G001, 207 CID (3.4 L) Turbo, Tier 4 Final Certified, with a charged air cooler (CAC) and high-pressure common rail (HPCR) fuel injection.
• Power Output: Gross horsepower of 74 hp (55 kW), net horsepower of 68 hp (51 kW), and peak torque of 232 lb·ft (314 N·m).
• Efficiency and Maintenance: It features a 120-amp alternator, dual-element air cleaner, organic acid technology (OAT) anti-freeze solution effective to -34º F, and a 25.5-gallon fuel tank.
• Cooling and Filtration Systems: Over and under radiator and oil cooler with a 3-stack after cooler/radiator/oil cooler configuration, glow plugs, integral engine oil cooler, fuel filter with water trap, and a 1,000 CCA 12V battery with master electrical disconnect for comprehensive performance and maintenance ease.

Drivetrain Features

• 2-Speed Hydrostatic Four-Wheel Drive: Provides adaptable control and traction.
• ASA #100HS Drive Chain: Ensures durability and reliability.
• SAHR Disc Parking Brake: Offers secure stopping and parking.

Hydraulic System

• Auxiliary Hydraulics: These operate at 3,050 psi (210 bar) and 24.2 gpm (91.5 L/min), making them powerful for attachment use.
• 6 Micron Oil Filtration System: Keeps hydraulic operations clean.
• 3-Spool Loader Control Valve: Allows for precise control over loader functions.
• ISO Flat-Face Hydraulic Disconnects: Facilitate easy attachment changes under pressure with case drain.
• Hydraulic Circuit Pedal Lock, Auxiliary Function Lockout Override, and Loader Lift Lockout Override: Enhance operational safety.
• Heavy-Duty Hydraulic Oil Cooler: Maintains optimal hydraulic temperatures.
• Loader Arm Float Position and Function Lockout System: Offer enhanced control.

Loader Specifications

• Auxiliary Front Electric Control: Simplifies operation of attachments.
• Heavy Duty Hydraulic Attachment Coupler: Enables quick and robust attachment changes.
• Radial Lift Geometry: Provides excellent reach and lift capacity.
• Loader Lift Arm Support Strut: Aids in maintenance and safety.

Tires

• 12 X 16.5 Heavy Duty Tires: Designed for durability and superior traction.

Other Standard Features

• LED Lights: 2 front, 2 sides, 2 rear floods for optimal visibility.
• Pre-Wired for Rotating Beacon: Enhances safety.
• Lockable Service Access Hood and Single-Point Daily Service: This is for convenient maintenance.
• Rear Tail Lights, Remote Oil, and Fuel Filters: Facilitate easy maintenance.
• Block Heater: For reliable cold starts.
• Debris Ingression Sealing: Protects against foreign particles.
• Mounting Points for Add-On Counterweights: For enhanced stability.

Telematics

• CASE SiteWatch™ Telematics: Includes hardware and a 5-year data subscription for machine monitoring and management.
• SiteConnect Module: Provides remote diagnostics capability, enhancing maintenance and troubleshooting efficiency.

Operator Environment

• Enclosed Cab: This cab is fully sealed and pressurized for comfort. It features a glass door with a wiper and washer, removable sliding side windows, a heater, and an air conditioner.
• Entertainment and Convenience: AM/FM Bluetooth radio with 2 speakers, keyless start ignition, and an 8-inch color LCD display.
• Performance Settings: Economy mode with auto idle shutdown, auto engine protection shutdown, and options for electro-hydraulic controls, including drive/steering and loader functions, with adjustable sensitivity and switchability between H and ISO patterns. It also offers mechanical hand controls and dual hand and foot controls for varied operational preferences.
• Comfort and Safety: It offers a vinyl suspension seat, a polycarbonate demolition cab door, an ignition timeout, customizable machine settings, user access levels, operator security codes, and an auto idle setting.

Hydraulics

• Enhanced Capability: High-flow auxiliary hydraulics at 3,050 psi (210 bar) and 37.6 gpm (142.5 L/min), second auxiliary hydraulics, hydraulic one-way self-leveling, and ride control for improved operational flexibility and performance.

Loader

• Attachment Efficiency: Hydraulic attachment coupler for quick and easy attachment changes.

Drivetrain

• Specialized Control: Creep Speed Mode is available for electro-hydraulic (EH) machines, enhancing precision in operations.

Other Options

• Customization and Convenience: Language decals, various buckets, bolt-on bucket cutting edges for durability, special paint options for personalization, and offsite service arrangements for maintenance flexibility.

Factory Supplied Attachments

• Additional Functionality: Add-on counterweights for increased stability, road lights, a rotating beacon, and a four-corner LED strobe for enhanced visibility and safety.

Service Parts

• Safety Enhancements: A 3-inch (76.2 mm) retractable seat belt and bolt-on heavy-duty bucket teeth for operational safety and equipment longevity.

Tier 4 Final

HPCR, EXTERNAL CEGR

Why this solution: This Tier 4 Final solution requires no new actions or upkeep and delivers best-in-class performance so operators can focus entirely on the work at hand.

How it works: The high-pressure common rail (HPCR) system electronically controls fuel injection for greater fuel economy through more efficient fuel burn. With Cooled Exhaust Gas Recirculation (CEGR), exhaust gases are cooled, blended with fresh air, and then returned to the cylinder. The Diesel Oxidation Catalyst (DOC) manages the additional particulate matter. The DOC converts emissions into neutral gasses and automatically burns it off using heat from the exhaust.

What this means to you: This solution is a maintenance-free emissions solution, requiring no costly DPF (Diesel Particulate Filter) to replace and no new fluids to add. Powered by an FPT engine.

Base & Extended Warranty Coverage

• 1-Year/Unlimited-Hour Full-Coverage Base Warranty
• 2-Year/2,000-Hour Full Coverage Base Limited Warranty
• 2-Year/2,000-Hour Extended Limited Engine Warranty

Engine Warranty – Warrants all internal, lubricated parts captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover, flywheel housing, turbocharger, engine oil cooler, and water pump.

Purchased Protection

The Purchased Protection Plan extends the factory base, and extended coverage is available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available for up to three years / 5,000 hours on CASE Skid Steer Loader models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE-approved service parts that meet CASE specifications must be used for maintenance and repairs.
