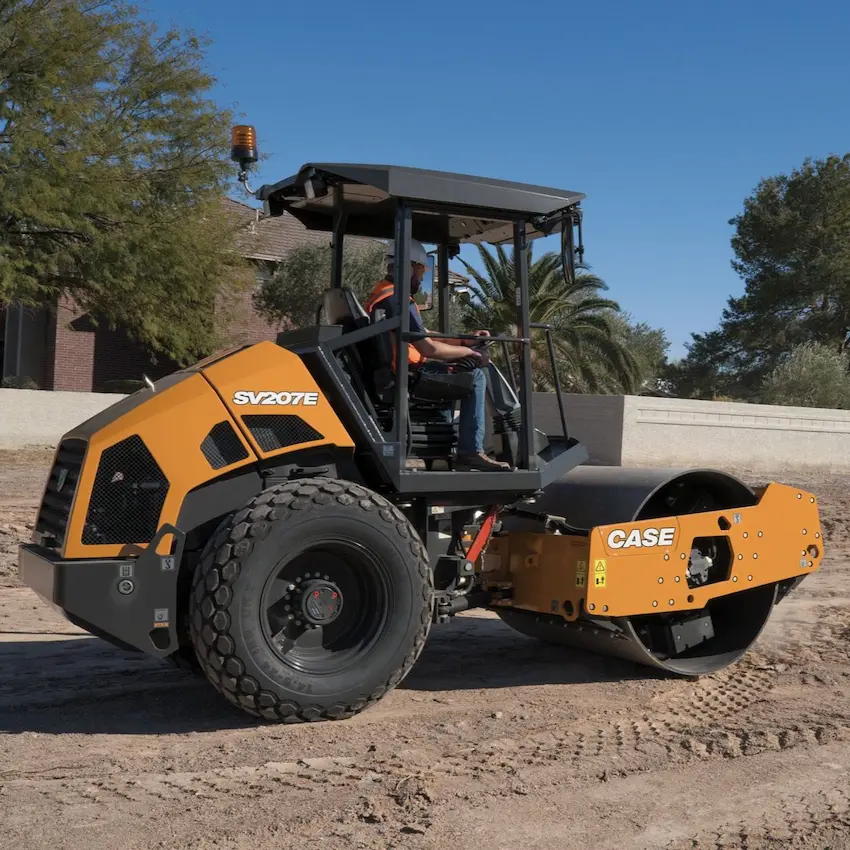

CASE SV207E Single Drum Vibratory Roller

Key Features:

• Best-in-Class Performance: Offers centrifugal forces up to nearly 30,000 pounds with dual amplitude/frequency functionality, ensuring superior compaction.
• Compact Design: Smaller-diameter roller with a thicker shell improves maneuverability and facilitates easy transportation.
• Optimal Compaction Power: Variable centrifugal forces ranging from 14,387 to 29,450 pounds for tailored compaction strength.

Advanced Capabilities:

• Gradeability: Unique axle-free design with a low center of gravity enhances grade compaction capabilities up to 67 percent.
• Automatic Traction Control: Optional feature combined with the HX drive propulsion system for unmatched uphill performance.

Efficiency and Convenience:

• Fuel Efficiency: The compact frame not only enhances maneuverability but also contributes to greater fuel economy.
• Ease of Transportation: Designed for hassle-free movement from one site to another, enhancing project efficiency.

Operator Comfort and Visibility:

• Ergonomic Operator Environment: Available in both cab and open ROPS configurations, featuring a spacious and intuitive layout.
• Adjustable Seat: Swivels up to 80 degrees for excellent drum surface visibility, enhancing operational precision.
• Integrated LED Display: Positioned within the steering wheel for easy access to machine information and improved visibility.

Enhanced Terrain Handling:

• Consistent Ground Contact: Oscillating articulated roller joint ensures constant drum-to-ground contact on uneven surfaces.
• Updated Drum Design: Minimizes drift and maintains consistent compaction, optimizing performance.

Serviceability:

• Groundline Maintenance: Easy access to fluid ports, drains, service checkpoints, and filters for simplified servicing.
• Designed for Convenience: Ensures quick maintenance turnaround times, reducing machine downtime.

Safety and Durability:

• ROPS and FOPS Protection: Ensures operator safety with a Roll-Over Protective Structure and Falling Object Protective Structure.
• Hydrostatic Drive: Provides precise control over the drum and wheels for enhanced performance and safety.
• Differential Lock: Improves traction and performance in challenging terrain.
• Articulated Chassis: Enhances maneuverability and control on various job sites.
• Front and Rear Tow Points: Offers convenience for transportation and positioning.
• Remote Fluid Drains: Simplifies maintenance and minimizes downtime.
• 4-Point Lift and Tie-Down Provision: Ensures secure transportation and stability during lifting.
• Fan Guard: Protects against debris, ensuring the longevity of the cooling system.
• Backup Alarm: Enhances job site safety by alerting pedestrians and other workers when the roller reverses.
• Halogen Work Lights (2 Front/2 Rear): Provides excellent visibility for the night or low-light operation.
• Master Disconnect Switch: Offers an added layer of safety and security.
• Spring Applied, Hydraulic Release Parking Brake: Ensures the roller remains stationary, even on slopes.
• 3 Working Speeds/1 Transport Speed: Adapts to various job site conditions for optimal performance.
• Spin-On Filters: Simplifies maintenance with easily replaceable fuel, engine oil, and hydraulic filters.
• Spring-Assist Tilting Engine Hood: Provides easy access for maintenance and inspection.

Operator Environment:

• Lockable Tool Box: Secure storage for tools and personal items.
• Cup Holder: Keeps beverages within reach, enhancing operator comfort.
• Single Lever Speed/Direction Control: Simplifies operation and increases efficiency.
• Emergency Stop Button: Ensures immediate machine shutdown in case of emergency.
• Steering Wheel Embedded Monitor: Offers convenient access to machine information and diagnostics.
• 3-Inch Retractable Seat Belt: Provides safety and compliance with job site regulations.

Instrument Panel:

• Steering Wheel Spinner Knob: Enhances maneuverability and control.
• Horn: Increases job site safety by alerting nearby personnel.

Vibration System:

• Auto Vibration Control: Automatically adjusts the vibration system for optimal compaction and efficiency.
• Dual Amplitude Vibration: Offers flexibility to match the vibration intensity to the soil type and compaction requirements.
• Dual Frequency Vibration: The operator can select the optimal frequency for various soil conditions and compaction needs.

Performance Enhancements:

• Automatic Traction Control (ATC): Available as standard on Padfoot models, ATC improves compaction efficiency and stability on challenging terrains.
• Leveling Blade: Facilitates material spreading and site preparation, enhancing the machine’s versatility.
• Padfoot Shell Kit with Scrapers: This kit extends the roller’s application range and is ideal for cohesive soil compaction.
• Ballast tires: Provides additional weight for increased compaction force and are ideal for specific soil types.
• Analog Compaction Indicator: Offers a visual gauge of compaction progress, helping operators achieve consistent results.
• ACE Force Intelligent Compaction: This system is available for cab models and provides real-time compaction data to optimize efficiency and documentation (Cab only).
• ACE Force Printer: Allows immediate printing of compaction data on-site for record-keeping and compliance (Cab only).

Operator Comfort and Convenience:

• Pressurized Cab with HVAC: Ensures a comfortable operator environment in various weather conditions, featuring heat, ventilation, air conditioning, and readiness for radio installation, including an antenna and two speakers (no radio included).
• Engine Filter Pre-Cleaner: Extends engine life by removing contaminants from the air before they reach the engine filter.
• Rotating Beacon: Enhances visibility and safety on the job site, especially in low-light conditions or crowded areas.
• Road Lights: Improve visibility for on-road travel between job sites (not available on Padfoot models).

Technology and Safety:

• CASE SiteWatch™ Telematics: This product comes with hardware and a 3-year Advanced data subscription. It offers remote monitoring of machine performance, location, and utilization, aiding in maintenance planning and fleet management.

Category	Specification	Detail
ENGINE	Make	Kubota
	Emissions Certification	Tier 4 Final
	Model	V3307-CR-TE5
	Cylinders	4
	Displacement	203 in³ (3,331 cm³)
	Gross Horsepower @ 2200 RPM	75 hp (55.4 kW)
	Max. Torque @ 1500 RPM	191 lbf·ft (259 N·m)
DRIVETRAIN	Drive	Hydrostatic
	F/R Travel Speed Range	4
	Working Speeds w/o Traction Assist (mph/kph)	1st – max. 1.6 (2.5), 2nd – max. 2.5 (4.0), 3rd – max. 3.7 (6.0)
	Max. Travel Speed (mph/kph)	7.5 (12.0)
	Parking Brake	Multi-disc
	Emergency Brake	Multi-disc
	Variable Displacement Axial Piston Type Wheel Drive Pump	1
	Hydraulic Fixed Displacement Wheel Drive Motors	2
	Drive Motor Interlock	Yes
	Hydraulic Variable Displacement Drum Drive Motor	1
	Gradeability w/o Traction Assist	59%
	Gradeability w/ HX Drive Traction Assist	67%
	Lateral Stability during Driving w/o Vibration	25%
ELECTRICAL	Voltage	12 Volts
	Battery	1 x 120 amp
	Alternator	45 amp
OPERATOR ENVIRONMENT	Features	Isolated from chassis by flexible shock absorbers; Handrail; Dual rearview mirrors; Front lighting; Instrument panel anti-vandal guard; Vinyl suspension seat w/ armrests and 3 in (76.2 mm) retractable seat belt.
OPERATING WEIGHT	Smooth Drum	Operating weight w/o cab 15,400 lb (6,990 kg), Max. weight w/ cab 18,520 lb (8,400 kg), Drum weight 8,600 lb (3,900 kg), Static linear load 129.9 lb/in (23.2 kg/cm)
	Padfoot Drum	Operating weight w/o cab 16,330 lb (7,410 kg), Max. weight w/ cab 19,440 lb (8,820 kg), Weight of Blade (opt.) 1,230 lb (560 kg)
SERVICE CAPACITIES	Fuel Tank	34.34 gal (130 L)
	Engine Oil	2.96 gal (11.2 L)
	Engine Coolant	6.87 gal (26 L)
	Hydraulic System	14 gal (53 L)
	Vibration System	1.59 gal (6 L)
OTHER SPECIFICATIONS	Steering	Pump – gear type 1, Cylinders 2, Angle – left and right 30°, Oscillation angle 9°, Inside turning radius 101.6 in (2,580 mm), Outside turning radius 170.9 in (4,340 mm)
	Vibratory System	Hydraulic circuit type Closed, Variable displacement axial piston type pump 1, Fixed displacement hydraulic motor 1, Vibration modes 2, Vibration 2 eccentric weights circular pattern/continuously adjustable
	Frequency	Low 2,040 vpm (34 Hz), High 2,160 vpm (36 Hz)
	Amplitude	Low 0.028 in (0.7 mm), High 0.063 in (1.6 mm)
	Centrifugal Force	Low 14,387 lb (64 kN), High 29,450 lb (131 kN)
	Tires	Size 14.9 x 24”, Smooth drum Diamond or traction tread, Padfoot drum Traction tread, Tire ballast Traction tread only

Dimension	Specification
A. Wheel Base	90.6 in (2,300 mm)
B. Drum Diameter	Smooth drum: 48.2 in (1,225 mm) <br> Padfoot drum: 48 in (1,219 mm)
C. Ground Clearance	15 in (380 mm)
D. Overall Height	112.6 in (2,860 mm)
E. Overall Length	174.2 in (4,425 mm)
F. Drum Width	66.1 in (1,680 mm)
G. Overall Width	70.5 in (1,790 mm)
H. Frame Extensions	4.4 in (111.76 mm)
J. Drum Thickness	0.7 in (18 mm)

Base & Extended Warranty Coverage

1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
2-Year/2,000-Hour Extended Limited Engine Warranty

Purchased Protection

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Compaction Equipment.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The Case Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine Case service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
