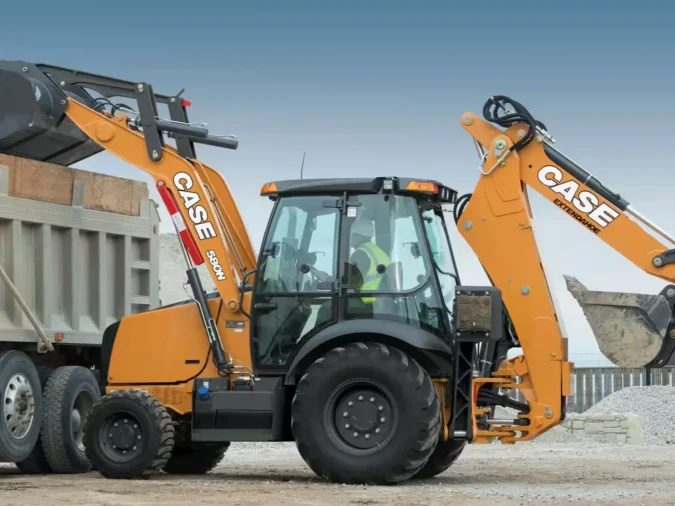

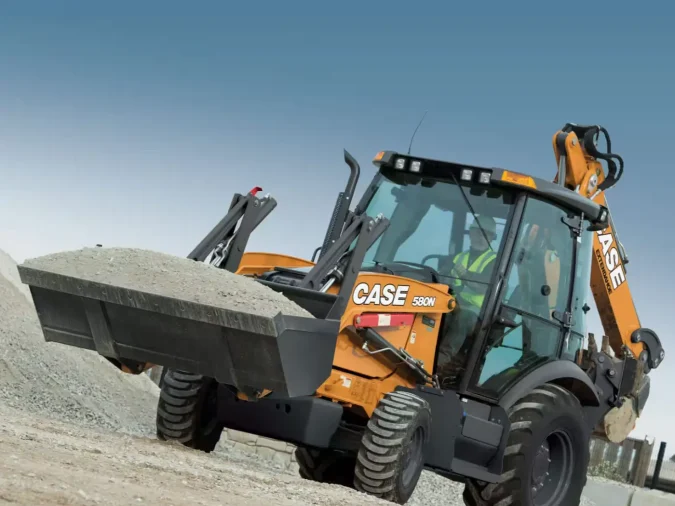

CASE 580 Super N WT Construction King Backhoe Loader

Purpose-Built Performance for Unmatched Capability

The CASE 580 Super N WT is designed to deliver unmatched power and efficiency:

• Wide Track Design: Offers better flotation, lower ground pressure, and enhanced stability.
• Impressive Lifting Capacities: Bucket breakout force exceeds 15,000 lb., with a full-height loader lifting capacity of 8,425 lb. and a backhoe lifting capacity of 3,761 lb. (with PowerLift).
• PowerDrive Transmission: A direct-drive 6-speed transmission with a limited-slip front differential enhances acceleration and gradeability.
• PowerBoost Function: Provides an instant burst of increased digging force.
• High-Performance Features:
  • ProControl for precise boom movement.
  • Speed-selectable Auto-Ride Control.
  • Comfort Steer for efficient loading tasks.
  • Universal backhoe coupler and factory-installed thumb.
  • SiteWatch Telematics for optimal machine productivity.

Innovative Technology for Efficiency and Productivity

Maximize efficiency with advanced technological features:

• SCR-Only Technology: The Tier 4 Final FPT engine uses Selective Catalytic Reduction to meet emission regulations without sacrificing performance.
• Fuel Efficiency:
  • No excess fuel burn for regeneration, thanks to SCR.
  • ECO Mode, engine Auto-Idle, and Auto-Off features conserve fuel.

Unparalleled Comfort and Visibility for Operators

The CASE 580 Super N WT ensures operator comfort and safety with:

• Comfortable Cab Options: Includes hands-free Bluetooth radio, USB input, premium seat with heat and lumbar support.
• Exceptional Visibility: Low-profile hood, floor-to-ceiling windows, and opening rear-quarter windows provide outstanding sightlines.
• Intuitive Controls: Adjustable backhoe pilot controls and loader joysticks with fingertip functions, including a forward-neutral-reverse (FNR) switch on PowerDrive models.
• Optional LED Light Package: For enhanced nighttime visibility.

Simplified Serviceability for Maximum Uptime

Routine maintenance is made easy with the following:

• Ground-Level Service Access: Check and fill engine oil, transmission fluid, coolant, fuel, and DEF from one spot.
• Easy System Access: Swing-out coolers and a flip-up hood for vital system maintenance.
• Extendahoe® Adjustability: Features externally adjustable wear pads.
• Convenience Features: Standard battery disconnect and jumpstart terminals with a maintenance-free SCR system.

Elevate your fleet with the CASE 580 Super N WT Construction King and experience power, efficiency, and reliability that sets new industry benchmarks.

Operator Comfort

• ROPS/FOPS certified protective canopy for optimal safety.
• Anti-vandalism cover for the dash (with canopy only) to protect control panels.
• Rear fender extensions and a coat hook with a garment strap for convenience.
• Interior rearview convex mirror and a mechanical suspension seat that swivels 180° in vinyl.
• 3 in (76 mm) retractable seat belt and a cup holder/storage tray mounted on the left-hand fender.
• Right-hand storage compartment with lid and tilt-steering wheel on cab models.
• Comprehensive gauges for engine water temperature, converter oil temperature, fuel level, tachometer/hour meter, and DEF level.
• Warning lights are available for various system statuses, including air cleaner restriction, alternator, A/C high pressure, and more.
• Audible alarms with diagnostics for coolant temperature, engine oil pressure, and parking brake engagement, among others.
• Horn with dual switched front and rear for clear signaling.

Engine

• FPT F5BFL413B diesel engine with Selective Catalytic Reduction (SCR) for emissions control.
• Full flow engine oil filter and an aspirated air cleaner with replaceable dual element dry type with radial seal.
• Fuel filter with water trap, radiator with overflow bottle, and antifreeze to -34°F (-37°C).
• Electronic throttles (foot and rotary hand), self-adjusting belts, and high-pressure common rail injection with diagnostic features.
• Engine ECO Mode, Auto Engine Idle, Shutdown, Protection Shutdown, and Electronic Fuel Priming.
• Cold-weather starting Aid includes dual 12-volt batteries, glow plugs, an engine block heater, and a heated CCV hose.

Drivetrain

• PowerDrive H-Type transmission with 4F-4R, hydraulic clutch shifting, kick down, and FNR switch in loader control lever.
• 4WD heavy-duty mechanically driven front axle with limited slip differential and rear axle with outboard planetary drive.
• On-the-go electric 4WD control, electric F/R shuttle control, and electric differential lock control.
• Park brake with spring-applied hydraulic release (SAHR) and drive shaft guard for 4WD models.

Hydraulics

• Ground-level remote hydraulic test ports and variable displacement axial piston pump.
• Heavy-duty hydraulic oil cooler and a 7-micron, spin-on oil filter for clean operation.

Loader

• Bucket position indicator, lifting lugs, and tie-downs on the standard bucket.
• Single lever control with self-leveling, return-to-dig, and hand-operated clutch disconnects.

Backhoe

• Over center design with Fabricated “S” boom, Pro Control System, and Dipperstick integrated serrated gripper teeth.
• Case mechanical coupler, Power Lift, Power Boost, Extendahoe®, and cleated dirt stabilizer pads.

Other Standard Features

• Comprehensive tire setup, forward tilt engine hood, and replaceable, molded front bumpers.
• Front/Rear tie-downs, reflective logos, signal lights, working/driving lights, and master disconnect switch.
• Hydrostatic steering, backup alarm, vertical spin-on engine oil, fuel, and hydraulic filters.
• Locking DEF/Fuel covers and a toolbox mounted on the step.

Telematics and Warranty

• CASE SiteWatch™ Telematics includes hardware and a 3-year Advanced data subscription for efficient fleet management.
• A 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty and a 2-Year/2,000-Hour Extended Engine Warranty ensure peace of mind.

Operator Environment Enhancements:

• Speed Selectable Auto Ride Control: Improves operator comfort and load retention over rough terrain.
• Comfort Steering: A two-speed steering pump and gear cutout are offered for effortless maneuverability.
• ROPS/FOPS Certified Protective Cab: Available in LH Door or 2-door configurations, these cabs feature heat, A/C, defroster, door-activated dome light, and more for ultimate operator comfort and safety.
• Deluxe Cab Package: Included with 2-door cabs for an upgraded operating experience featuring a deluxe interior and reduced sound level.
• Premium Seat: Multi-color, hand-stitched cloth, heated air suspension seat enhances comfort during long working hours.

Engine Options:

• Severe Cold Weather Starting Aid: Ensures reliable operation in extreme conditions with synthetic fluids for transmission, hydraulic, and engine systems.

Loader Flexibility:

• Auxiliary Hydraulics: For loader-mounted equipment with thumb-operated proportional control, expanding versatility.
• Hydraulic Front Quick Coupler: Enables quick attachment changes for increased efficiency.
• Tool Portfolio & Buckets: A range of attachments and buckets for diverse applications.

Other Valuable Upgrades:

• Special Paint: Customize your machine with a unique color.
• LED Working/Driving Light Package: Enhance visibility for safer operation in low light conditions.
• Front Fenders & Special Feature Request: Additional protection and customization options to meet specific operational needs.

Backhoe Customization:

• Auxiliary Hydraulics: For both 1-way and 2-way flow attachments, adding versatility to your backhoe operations.
• Bolt-on Hardened Gripper Teeth & Buckets: Enhance digging and material handling capabilities.
• Pilot Operated Control System & Fingertip Controls: For precise and comfortable control over stabilizers and Extendahoe®.
• Hydraulic Thumb & Quick Coupler: Increase efficiency and flexibility in material handling and attachment changes.

Tire Options:

• Choose between standard or Michelin rear tires for optimal performance in various conditions.

Feature	Specification
Model	FPT F5BFL413B
Emissions Certification	Tier 4 Final
Type	Diesel 4-stroke, Turbocharged
Cylinders	4
Bore/Stroke	3.90 x 4.33 in (99 x 110 mm)
Displacement	207 in³ (3.4 L)
Fuel Injection	Direct, high pressure common rail – HPCR
Fuel Type	Diesel
Rated Speed – Full Load	2200 RPM
Low Idle	900 – 1000 RPM
High Idle – No Load	2330 – 2430 RPM
Horsepower @ 2200 RPM – Gross	110 hp (82 kW)
Net Horsepower @ 2200 RPM	108 hp (81 kW)
Maximum Torque @ 1400 RPM – Gross	339 lb·ft (460 N·m)
Net Torque @ 1400 RPM	338 lb·ft (459 N·m)
Torque Rise at Rated Speed	29% +/- 5%
Radiator Core Type	Square wave
Core Size Area	486 in² (3 145 cm²)
Rows of Tubes	4
Fan Style	9 blade viscous suction
Fan Diameter	19.68 in (500 mm)
Fan Ratio	1.4:1
Pump Operating Angle – Side to Side	Rated 35°
Pump Operating Angle – Fore and Aft	Rated 35°
Oil Filtration	Replaceable, full flow cartridge

Feature	Long Lip Bucket	4 IN 1® Bucket
A. Overall operating height – fully raised	13 ft 11 in (4.24 m)	13 ft 10 in (4.22 m)
B. Height to bucket hinge pin fully raised	11 ft 6 in (3.50 m)	11 ft 6 in (3.50 m)
C. Bucket hinge pin at SAE carry	12.75 in (324 mm)	12.75 in (324 mm)
D. Dump angle at full height	45°	45°
E. Dump clearance at full height, 43° dump – Bucket	8 ft 11 in (2.73 m)	9 ft 1 in (2.77 m)
E. Dump clearance at full height, 43° dump – Clam open	—	9 ft 11 in (3.01 m)
F. Dump reach at full height, 45° dump – Bucket	27.0 in (685 mm)	27.0 in (685 mm)
F. Dump reach at full height, 45° dump – Clam open	—	13.9 in (353 mm)
G. Bucket rollback @ Groundline	40°	41°
H. Bucket rollback @ SAE carry	46°	46°
J. Bucket rollback @ Full height	Adjustable	Adjustable
K. Digging depth below grade – Bucket flat	6.1 in (156 mm)	5.9 in (151 mm)
K. Digging depth below grade – Clam open – dozing	—	3.5 in (88 mm)
L. Reach from front axle centerline – bucket on ground	6 ft 9 in (2.05 m)	6 ft 6 in (1.99 m)
Lift capacity to full height – calculated values	8,425 lb (3 822 kg)	8,025 lb (3 640 kg)
Breakout force – Lift cylinders	11,450 lb (5 093 daN)	11,241 lb (5 000 daN)
Breakout force – Dump cylinders	10,873 lb (4 837 daN)	11,674 lb (5 193 daN)
Bucket cutting edge width	94.2 in (2.39 m)	93.0 in (2.36 m)
Maximum grading angle	106°	106°
Maximum clam opening	—	38.3 in (972 mm)
Moldboard height	—	36.8 in (934 mm)
Raising time to full height	3.7 sec	3.7 sec
Bucket dumping time	2.0 sec	2.0 sec
Lowering time – Power down	2.5 sec	2.5 sec
Return-to-dig – manual controls/pilot controls	3.6 sec	3.0 sec
Clam – Open time	—	1.3 sec
Clam – Close time	—	1.1 sec

Base & Extended Warranty Coverage

• 1-Year/Unlimited-Hour Full-Coverage Base Limited Warranty
• 2-Year/2,000-Hour Extended Engine Warranty

Engine Warranty – Warrants all internal, lubricated parts that are captured between the valve cover and oil pan, cylinder block and head, exhaust manifold, front cover and flywheel housing, turbocharger, engine oil cooler and water pump. Drive Train Warranty – Drive (flex) plates / flywheel, drive axle assembly, drive couplings, drive shafts / universal joints, final drive / planetary, hydraulic drive motor, hydraulic drive pump, hydraulic pump when used as a power source for drive pump or drive motor, propulsion planetary drive, pump drive coupling, pump drive gearbox, seals in idlers and rollers, swing reducer transmission, torque converter, track steering brakes and clutch, transfer gear group, transmission charge pump, transmission / transmission control valve, transmission electronic controller, trencher drive gearbox, turntable bearing / swing gear / hydraulic swivel, and wet brakes / wet clutch.

Purchased Protection Plan

Purchased Protection Plan is an extension of the factory base and extended coverage available at an additional cost. Your CASE dealer can help you determine the plan that fits your needs. Plans are available up to six-years / 7,500 hours on CASE Loader/Backhoe models.

Please see your CASE dealer for limitations, exclusions, and confirmation of policies in effect. The CASE Warranty remains in effect during the Warranty Period if the owner performs the required maintenance at the recommended intervals outlined in the product’s operator’s manual and the unit is operated within its rated capacity. Genuine CASE service parts or CASE approved service parts that meet CASE specifications must be used for maintenance and repairs.
