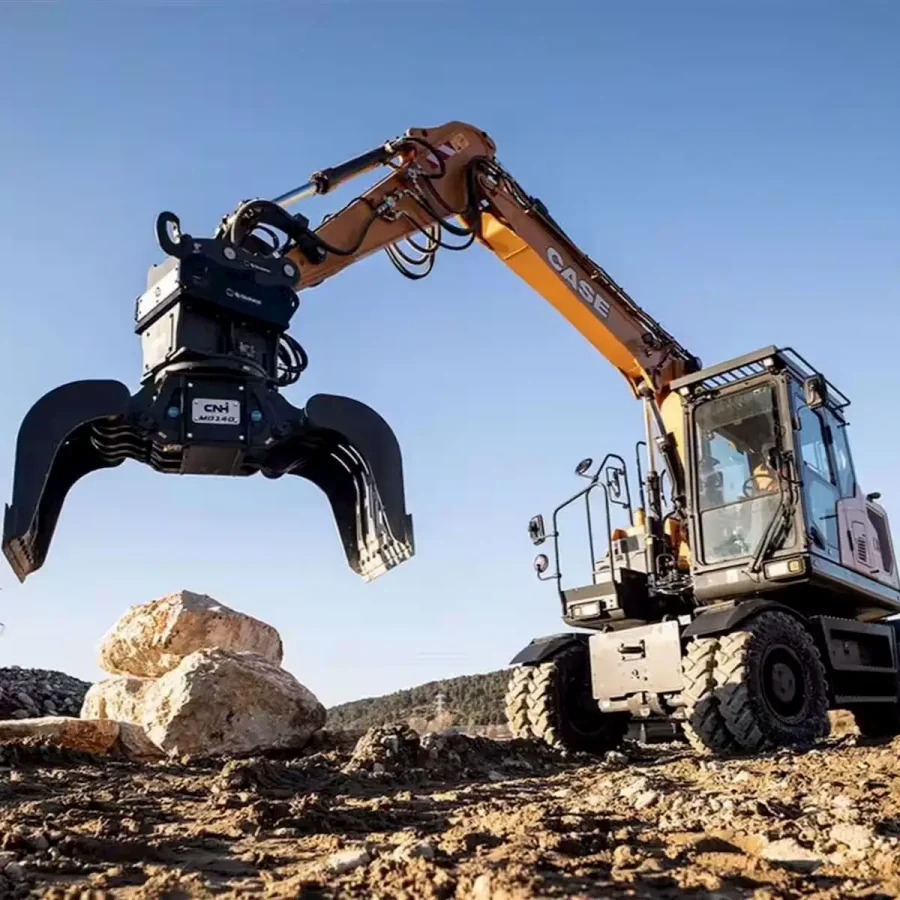

CASE WX160E Wheeled Excavator

Performance

The WX160E is equipped with a robust 170 hp engine that is EGR-free and features an automatic after-treatment system cleaning. It offers four user modes, including a customizable one, allowing operators to fine-tune performance, power, and efficiency: engine speed, idle speed, pump power, and flow to meet the demands of any job.

Mobility

Designed for maximum mobility, the WX160E offers a range of lower-frame options, including combinations of dozer blades and stabilizers and twin tires to minimize downtime due to flats. Heavy-duty axles and a hydrostatic transmission enable speeds of up to 25 mph, complemented by standard cruise control and Ride Control for a smoother ride. A trailer hitch is also included for transporting attachments, materials, or debris.

Versatility

The standard two-piece boom enhances maneuverability in tight spaces, while an optional monoboom increases lifting capacity. Joystick steering up to 6.2 mph ensures precise control at low speeds. The excavator is a tool carrier, ready for both one-way and two-way flow attachments, with an optional low-flow circuit for delicate operations. An optional Leica 2D Precision package and various work tools extend its versatility further, from asphalt cutters to pallet forks.

Comfort

CASE prioritizes operator comfort with large glass surfaces for exceptional visibility, an air-suspension heated seat with extensive adjustability, an 8″ touchscreen display, and a separate camera display. Optional smart ignition and Auto Braking features enhance both security and operational efficiency.

Serviceability

The WX160E boasts easy serviceability with 800-hour intervals for engine oil and filters, 1,000-hour intervals for fuel filters, and 5,000-hour intervals for hydraulic oil. A 3-year/3,000-hour full machine warranty and a 2,000-hour maintenance plan ensure reliability and peace of mind, with many consumables accessible for ground-level service.

Safety

• Standard rear radar object detection and the CASE maximum view monitor for 360-degree visibility.
• Intelligent moving object detection.
• Enhanced worksite safety with swing lock and standard hose burst check valves for critical cylinders.

Optional cab protection offers additional safety measures.

Engine

• Cummins B4.5 engine: Water-cooled, 4-cylinder inline, 4.5-liter
• High-pressure common rail system with electronic control
• Waste gate turbocharger with air-cooled intercooler
• DOC+DPF+SCR after-treatment system for emissions control, EGR-free
• Rated flywheel horsepower: 170 hp (ISO 9249) and 173 hp (ISO 14396) at 2200 RPM
• Maximum torque: 575 ft·lb (ISO 14396) at 1500 RPM
• Tier 4 Final / Stage V emissions certified
• Compatible with ultra-low sulfur diesel and B7 biodiesel
• ECO gauge for monitoring fuel efficiency
• Variable power control on the jog dial
• Automatic, postponable after-treatment filter cleaning
• Programmable electronically-controlled reversible fan
• Programmable engine Auto Idle and Auto Shutdown functions
• Automatic or manually controlled 9.2 gpm electric refuel pump
• DEF tank overload warning
• Air intake with cup-type pre-cleaner
• Dual dry-type element air filter with warning restriction indicator
• Air grid heater for cold start aid
• Replaceable, full-flow spin-on fuel and engine oil cartridges
• Fuel pre-filter with water drain
• Stacked cooling pack configuration with protective screen for radiators

Upper Carriage

• Standard counterweight for stability and performance
• Safety handrails on the front and right-hand side for secure access
• Lockable cab door, fuel and DEF tanks, service doors, and toolbox for security and convenience
• Rear work lamp and headlights with indicator lights for visibility
• LED working lights package for enhanced illumination during operations

Hydraulics

• Load sensing hydraulic system (LUDV) with advanced flow sharing for efficiency
• Three selectable work modes (Heavy Duty, Standard, Economy) and one user-customizable mode
• High flow multi-function hydraulic system with pressure setting for various attachments
• Capacity to store and manage hydraulic settings for up to 20 attachments (10 one-way, 10 two-way)
• Three attachment work modes (push, detent, proportional) for versatility
• Quick coupler hydraulic circuit for easy attachment changes
• Safety valves on boom, arm, and dozer blade to prevent overload
• Power boost mode for extra hydraulic power
• Accumulator on boom cylinders for smoother operation
• Boom float control for precise movements
• High-pressure hoses designed for durability
• Main hydraulic pump: Variable displacement piston pump
• Maximum oil flow of 68.9 gpm at 1800 RPM
• Working circuit pressures optimized for performance

Attachments

• Standard 2-piece boom for flexibility in confined spaces
• 8 ft 6 in digging arm with reinforcements for durability
• Reinforced pins, bushings, and polymer shims for longevity

Maintenance and Warranty

• Full Machine Protection Factory Warranty for 3 years or 3000 hours
• Planned Maintenance Agreement for 3 years or 2000 hours
• Convenient single-point engine checks under the hood
• Integrated self-diagnostics system for troubleshooting
• Service intervals for greasing, oil and filter changes, and hydraulic oil maintenance

Operator Environment

• Cab: The cab is Enclosed and pressurized, with an air conditioning, heating, and defrost system for full climate control. It features a lockable door for security.
• Safety: ROPS/FOPS certified for optimal operator safety. The cab is equipped with safety glass for all windows, including laminated glass for the front window for added protection.
  Visibility:** A one-piece sliding fold-in front window, a sliding left-hand side window, and a transparent roof view with a sunshade ensure excellent all-around visibility.
• Seat: This is a High-back premium heated air-suspension and tilting seat with extensive adjustability options, including fore/aft, weight, height, pan angle, depth, lumbar, and backrest adjustments.
• Controls: Low-effort joystick controls with proportional control, FNR transmission switch, detent activation, and front axle oscillation lock. Operators can choose between the steering wheel and right-hand joystick steering, with a slim 3-way adjustable steering column design for comfort.
• Instrumentation: An 8-inch touchscreen monitor with an instrument cluster that includes navigation, air conditioning control, and engine throttle, all powered by a right-hand console jog dial module. The instrument cluster gauges display engine RPM, engine coolant temperature, hydraulic oil temperature, fuel level, DEF level, ECO mode, accelerometer dial, and hour meter.
• Safety Systems: CASE MaxView 360-degree 4-camera system with intelligent moving object detection and a radar object detection and warning system on the rear of the machine to enhance operational safety.
• Communication and Entertainment: The audio system includes a radio player, USB MP3 player, aux-in port for personal electronics, Bluetooth capability for hands-free calling, and a 12-volt electric outlet for charging devices.
• Additional Features: Adjustable speed cruise control, emergency FNR switch, 4-wheel auto-brake mode for attachment operation, ride control system for smooth travel, rain deflector, interior dome light, emergency exit and hammer, 2-piece rubber floor mat, exterior mirrors, cup holder, storage compartments, warm/cool storage compartment, electric horn, parallel windshield wiper and washer, cab filters (internal and external), and cab suspension mounts to minimize noise and vibration. An operator’s manual is included for reference.

Hydraulics:

• Secondary low 2-way flow electronic proportional controlled auxiliary hydraulics for precision operation of attachments.
• Fine Swing control for improved control and precision during swing movements.
• Cold climate hydraulic oil to enhance hydraulic performance in colder working conditions.

Operator Environment:

• Optional rearview camera only for enhanced visibility and safety at the rear of the machine.
• Rear and right-side cameras for comprehensive visibility around the excavator, improving operational safety.
• Smart key with a push-to-start button for convenient and secure machine start-up.

Front End Equipment:

• Digging arm options for varied operational needs:
• 8 ft (2.45 m) digging arm for standard depth and reach.
• 8 ft 6 in (2.6 m) digging arm for extended reach and deeper digging capabilities.
• Monoboom option for a single-piece boom design, providing a traditional excavator feel (Note: Ride control is incompatible with the monoboom).

Upper Structure:

• FOPS (Falling Object Protective Structure) top cab guard to protect the operator from falling debris.
• Wire mesh screen front guard to shield the front of the cab from flying debris and materials.
• OPG (Operator Protective Guard) Level 2 front guard for enhanced protection against impacts and debris.

Undercarriage:

• Rear blade for backfilling, grading, and leveling tasks, adding versatility to the machine’s capabilities.
• 2F/2R stabilizers for increased stability during lifting and digging operations.
• F/R blade combines front and rear blades to provide comprehensive ground engagement and leveling tasks.
• Solid tires are designed for durability and reduced maintenance and are particularly suitable for urban and hard-surface applications.
